GT 200 (HN2050A) - Husqvarna Garden Tractor (1993-12) Lift Assembly Parts Diagram

Garden Tractor

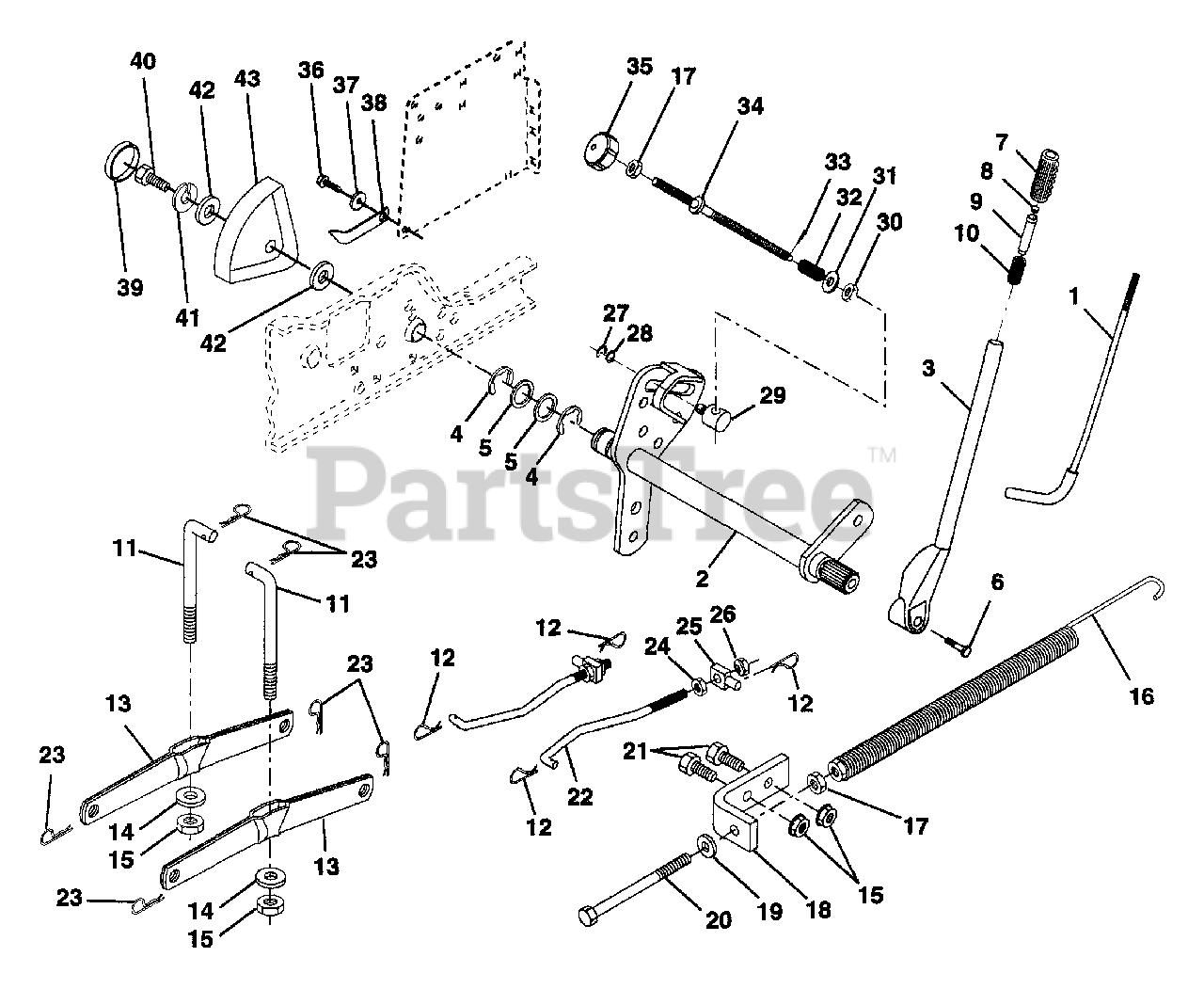

Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532121006

Rod Asm., Lever

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532137295

Shaft Asm., Lift Vgt

$

$

Not available

3

Husqvarna 532121002

Lever Asm., Lift Rh
(Superseded to 532123096)

$

$

Not available

4

Husqvarna 812000022

E-Ring Truarc #5133-87

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 874780624

Bolt, Fin Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

Grip, Handle Fluted

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

Plunger, Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532142369

Link Lift
(Superseded to 532146704)

$

$

Not available

12

Husqvarna 532124660

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532139867

Arm, Suspension Vgt
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532140302

Bearing
(Superseded to 532169865)

$

$

Not available

15

Husqvarna 873800600

Nut, Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532124687

Spring Asm., Assist Lift
(Superseded to 532674247)

$

$

Not available

17

Husqvarna 873350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 532124671

Bracket, Spring Assist

$

$

Not available

19

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532005328

Bolt, Adjust Spring Assist

$2.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532127218

Link, Front

$17.99

$

In Stock, only 4 left!

0

23

Husqvarna 532124670

Retainer, Spring

$

$

Not available

24

Husqvarna 873350800

Nut, Jam Hex 1/2-13 Unc

$

$

Not available

25

Husqvarna 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

26

Husqvarna 873800800

Nut, Lock W/Wsh 1/2-13 Unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 812000037

Ring, Klip #T5304-37

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

29

Husqvarna 532110810

Trunnion, Dp Stop Dbl Thds Pit

$

$

Not available

30

Husqvarna 532110807

Nut, Special

$

$

Not available

31

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 532137150

Spring, Compression Inf Hgt

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Husqvarna 532137167

Rod, Adj Lift

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532138057

Knob, Inf 3/8-16 Unc

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

37

Husqvarna 532120529

Washer, Nylon

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532138346

Pointer, Pnt Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532123935

Plug, Hole

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 874780516

Bolt, Fin Hex 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 810040500

Washer, Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532123934

Scale, Indicator Height

$

$

Not available
