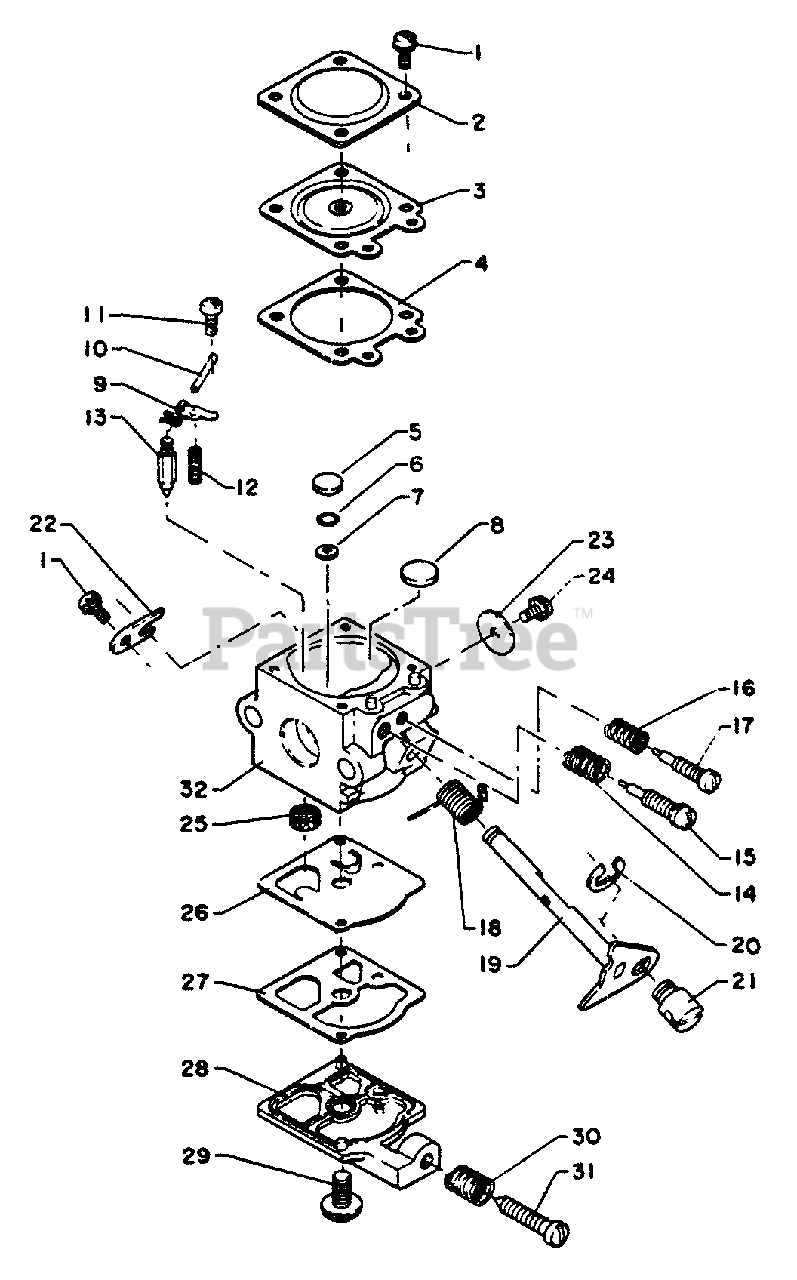

GT-200 CE - Echo String Trimmer (CE Version) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

Echo 12300009320

CARBURETOR WA-143
(Superseded to Discontinued)

$

$

Not available

1

------------------

SCREW

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310009320 & Gasket/Diaphragm Kit P/N 1231011053

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310009320 & Gasket/Diaphragm Kit P/N 1231011053

$

$

Not available

5

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

6

------------------

RING, RETAINING

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

7

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

8

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

9

------------------

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

10

------------------

PIN, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

11

------------------

SCREW, METERING LEVER PIN

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

13

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

14

------------------

SPRING, HIGH SPEED NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

15

Echo 12312000760

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 1 left!

0

16

------------------

SPRING

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

17

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311709320

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

25

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310009320

$

$

Not available

26

------------------

DIAPHRAGM, PUMP

Note: Included in Carburetor Repair Kit P/N 12310009320 & Gasket/Diaphragm Kit P/N 1231011053

$

$

Not available

27

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310009320 & Gasket/Diaphragm Kit P/N 1231011053

$

$

Not available

28

Echo 12312416530

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

30

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

31

Echo 12313406530

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 2 left!

0

32

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310009320

REPAIR KIT

$15.99

$

Usually ships in 2-4 days

0

Echo 12310110530

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, only 3 left!

0
