GT 200 (954140011-A) - Husqvarna Garden Tractor (1997-12) Mower Deck Parts Diagram

Garden Tractor

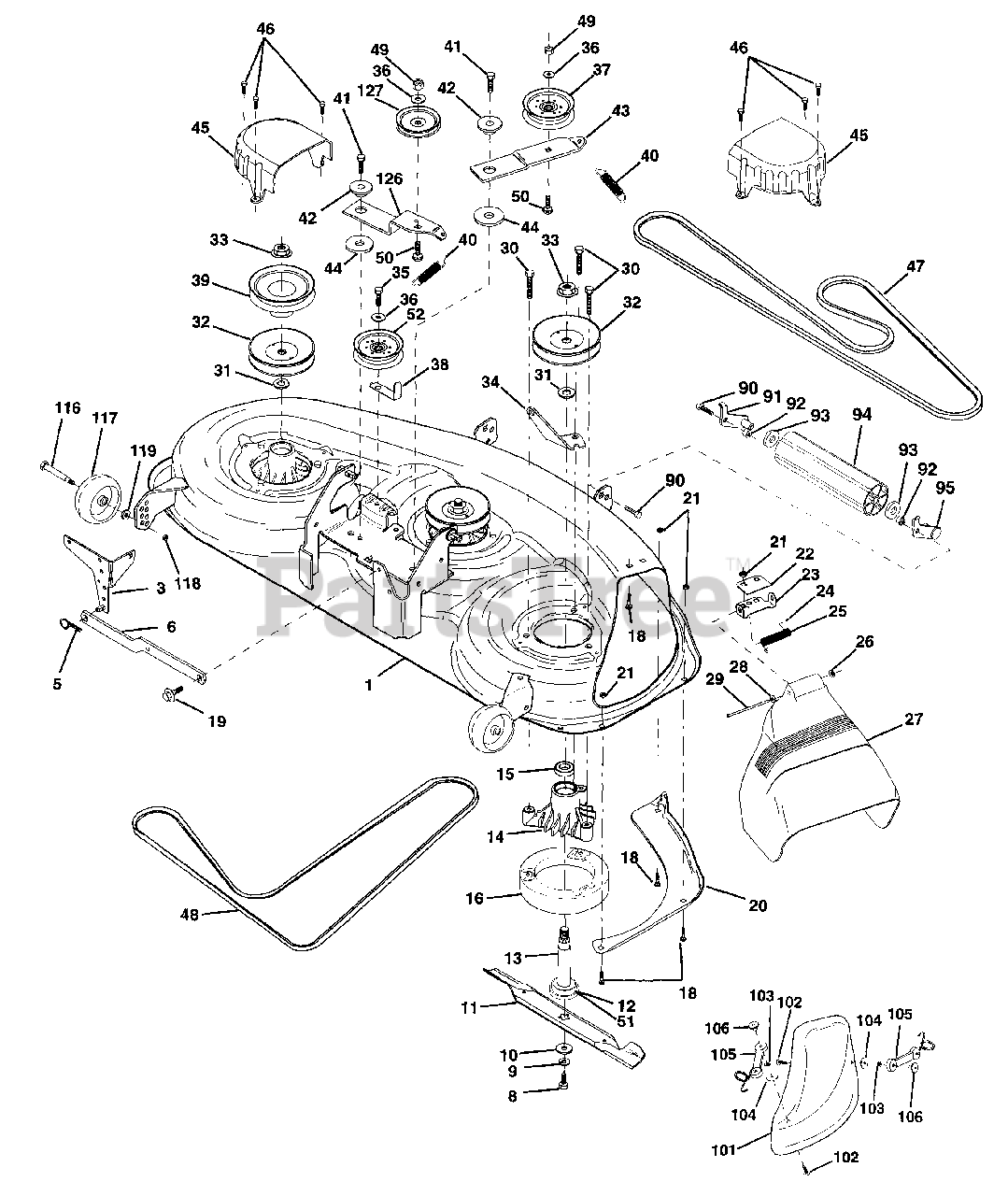

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532153125

Deck Asm., Mower 46"
(Superseded to 532176026)

$

$

Not available

3

Husqvarna 532138457

Bracket Asm., Sway Bar

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm, Suspension, Rear (Sway Bar)
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 810030600

Washer, Lock Hvy., Unplated 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer, Hard Blade, Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532152443

Blade, 46" Mulching

$20.99

$

In Stock, only 3 left!

0

12

Husqvarna 532129895

Bearing, Ball, Mandrel #6204

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137553

Shaft Asm. w/Lower Bearing

Note: (Includes Key No. 12)

$37.99

$

In Stock, only 1 left!

0

14

Husqvarna 532137152

Housing, Mandrel

$40.99

$

In Stock, only 1 left!

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 532140329

Stripper, Mower Round
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt, Hex Head, Shoulder 5/16-18

$

$

Not available

20

Husqvarna 532145055

Baffle, Vortex Mower 46"

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffiner, Bracket
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

Bracket, Deflector
(Superseded to 532177563)

$

$

Not available

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring, Torsion, Deflector

$7.99

$

In Stock, only 3 left!

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532145325

Shield, Deflector Mower
(Superseded to 532166883)

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532138776

Screw, Hex Head, Thdroll
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153531

Pulley, Mandrel
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 532144945

Anchor, Spring Deck 46"

$

$

Not available

35

Husqvarna 817490628

Screw, Thdroll 3/8-16 x 1-3/4 Tytt
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

38

Husqvarna 532137554

Keeper, Belt, Idler
(Superseded to 532156085)

$

$

Not available

39

Husqvarna 532144917

Pulley, Idler, Driven

$31.99

$

In Stock, only 1 left!

0

40

Husqvarna 532137273

Spring, Secondary 44/46/50 Vent

$7.99

$

In Stock, Qty 5

0

41

Husqvarna 817490620

Screw, Thdroll 3/8-16 x 1-1/4 Tytt
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Husqvarna 532144949

Arm, Idler Secondary

$

$

Not available

44

Husqvarna 532133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532145059

Cover, Mandrel Deck

$

$

Not available

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532144959

V-Belt, Mower, Secondary

$43.99

$

In Stock, Qty 20+

0

48

Husqvarna 532148763

V-Belt, Mower, Primary

$62.99

$

In Stock, only 1 left!

0

49

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532153390

Washer Felt

$6.49

$

In Stock, only 3 left!

0

52

Husqvarna 532155191

Pulley Idler Flat 46 PRI drive
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

90

Husqvarna 874760616

Bolt Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532132274

Bracket Asm Noseroller LH
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0

94

Husqvarna 532132264

Roller Nose

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

Bracket Asm Noseroller RH
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532145579

Cover, Mulching

$

$

Not available

102

Husqvarna 871161010

Screw
(Superseded to 871081010)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 14

0

104

Husqvarna 819061216

Washer

$4.99

$

In Stock, only 1 left!

0

105

Husqvarna 532130758

Latch Asm. Bagger
(Superseded to 597000601)

$6.99

$

In Stock, Qty 11

0

106

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532137644

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

Gauge Wheel, Wide

$13.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

126

Husqvarna 532144948

Arm, Idler, Primary Deck 46"

$

$

Not available

127

Husqvarna 532146763

Pulley, Idler, V-Groove Dim. 4.25

$

$

Not available

Husqvarna 532143651

Mandrel Asm 44"/50" Service

Note: (Includes Key No.s 8-10, 12-15, 31 and 33)

$102.99

$

In Stock, only 4 left!

0

Husqvarna 532147401

Deck Complete Std. Deck
(Superseded to 532166222)

Note: (Order separately mulcher plate and gauge wheel components Key Nos. 101-106 and 116-118)

$971.99

$

Usually ships in 3-10 days

0
