GT 200 (954140011-A) - Husqvarna Garden Tractor (1997-01) CHASSIS & ENCLOSURES Parts Diagram

Garden Tractor

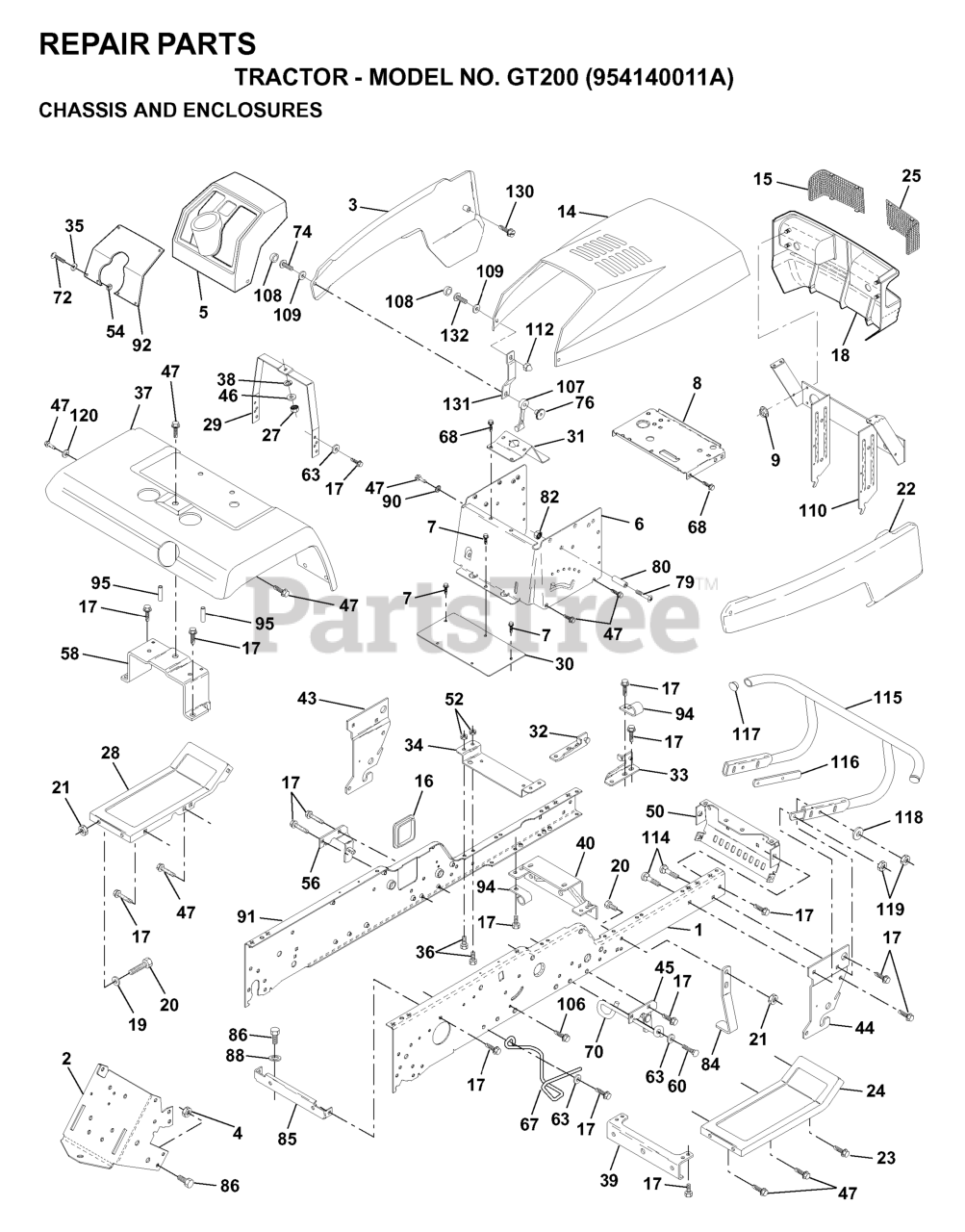

CHASSIS & ENCLOSURES Parts Diagram

  • Title
34

Husqvarna 532142131

ENGINE SUPPORT BRKT

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

79

Husqvarna 874981020

RP SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

76

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

112

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532154913

BRACKET SUSP RH

$

$

Not available

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

82

Husqvarna 873731000

NUT **
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

54

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532141461

BRACKET BUMPER
(Superseded to 532170310)

$

$

Not available

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

118

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 532147203

FOOT REST LH

$

$

Not available

23

Husqvarna 817490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

22

Husqvarna 532150479

PANEL ASM SD RH
(Superseded to 532150190)

$

$

Not available

109

$

$

Not available

108

Husqvarna 532110356

SNAP CAP LT

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 532145205

DASH SUPT YP

$

$

Not available

95

Husqvarna 532105531

NUT-PUSH YT

$2.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532142992

MOWER STOP

$6.49

$

Usually ships in 3-10 days

0

94

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532137159

BELT GUIDE
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532157221

DASH PLATE
(Superseded to 532156283)

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532150273

DASH ASS'Y LOWER

$38.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532141314

FRAME PIVOT BRKT ASSY RH

$

$

Not available

130

Husqvarna 817521312

Screw, SLTD Hex Hd. W/Pl Washer

$

$

Not available

72

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$

$

Not available

120

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

47

$6.49

$

Usually ships in 3-10 days

0

15

$

$

Not available

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

60

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532150477

HOOD ASM PNT
(Superseded to 532125454)

$

$

Not available

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532140737

BELT GUIDE

$3.99

$

Usually ships in 3-10 days

0

132

Husqvarna 874291006

SCREW 10-24X3/8

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

85

Husqvarna 532144911

BRACKET SUPPORT PNT TRANS VGT
(Superseded to 532193923)

$

$

Not available

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

18

Husqvarna 532157236

GRILLE.ASM.HUSQVARNA.YTGT

$

$

Not available

40

Husqvarna 532142132

AXLE SUPPORT BRKT
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

114

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

21

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532152728

BRACKET, CHASSIS FRONT

$

$

Not available

74

Husqvarna 874191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532137113

FENDER BRKT
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532108067

PAL NUT LT

$

$

Not available

110

Husqvarna 532150200

PIVOT ASM GRL/HD

$

$

Not available

1

Husqvarna 532150253

RAIL, FRAME RH
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

86

Husqvarna 874760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

- -

Husqvarna 532125085

PLUG-DASH T

$

$

Not available

32

Husqvarna 532141315

FRAME PIVOT BRKT ASSY LH

$7.99

$

Usually ships in 3-10 days

0

88

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

117

Husqvarna 532143679

PLUG PLASTIC

$2.99

$

Usually ships in 3-10 days

0

80

$7.49

$

In Stock, Qty 6

0

31

Husqvarna 532145183

BRACE, SUPPORT STEERING

$

$

Not available

3

Husqvarna 532150478

SIDE PANEL LH
(Superseded to 532150189)

$

$

Not available

25

Husqvarna 532157069

LENS.RH.HUSQVARNA.YTGT.CL

$

$

Not available

106

Husqvarna 532138776

SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

37

Husqvarna 532124927

FENDER
(Superseded to 532121642)

$

$

Not available

131

Husqvarna 532150195

BRACKET.SUPPORT.HOOD/PANEL.NLA

$

$

Not available

63

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

46

$

$

Not available

107

Husqvarna 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 13

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532154914

BRACKET ASM, SUSP CHASSIS

$

$

Not available

2

Husqvarna 532140506

DRAWBAR-GT
(Superseded to 532175282)

$

$

Not available

119

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532136961

FRONT AXLE BRACKET

$

$

Not available

8

Husqvarna 532145166

SUPPORT, BATTERY

$

$

Not available
