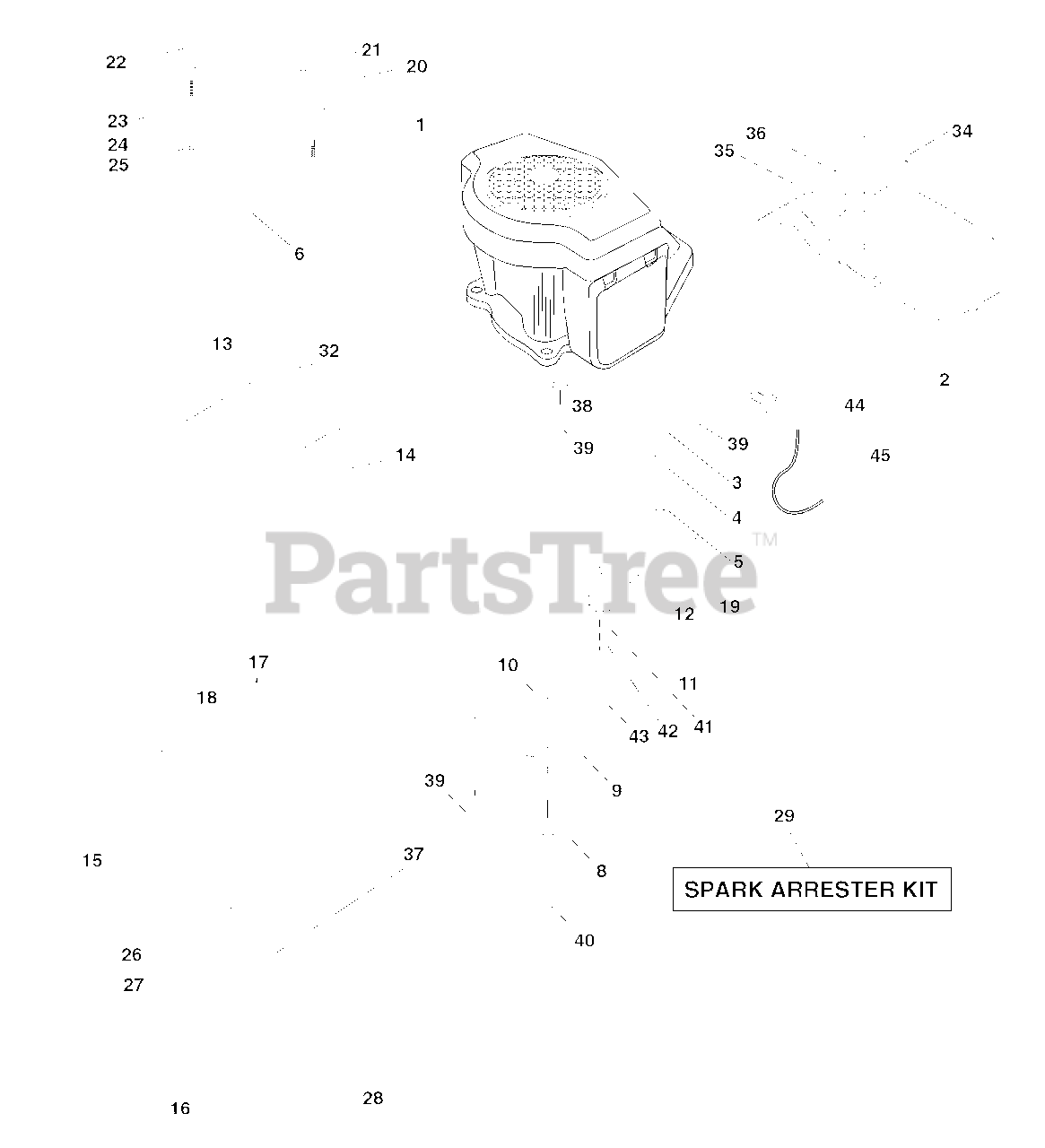

GT 200 (954001112-A) - Husqvarna Garden Tractor (1994-07) Engine Parts Diagram

Garden Tractor

Engine Parts Diagram

  • Title

1

Engine Kohler, Model No. MV20S

$

$

Not available

2

Husqvarna 532144110

Muffler Asm Kohler VGT (Inc. Key No. 34)

$

$

Not available

3

Husqvarna 813240300

Elbow Street 3/8 NPT

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 813280328

Nipple Pipe 3/8NPT X 3 - 1/2

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 813200300

Elbow STD 90 Degree 3/8 - 18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

6

Husqvarna 532138129

Clamp Tube Double Engine

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121361

Pulley V-idler
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Husqvarna 532138559

Stop Keeper Asm VGT
(Superseded to 532177748)

$

$

Not available

10

Husqvarna 532105432

Bushing

$

$

Not available

11

Husqvarna 532137140

Clutch Electric
(Superseded to 532142600)

$

$

Not available

12

Husqvarna 532136907

Pulley Engine VGT Elect Clutch

$

$

Not available

13

Husqvarna 532138486

Baffle Air LH Koh VGT
(Superseded to 532154575)

$

$

Not available

14

Husqvarna 532138487

Baffle Air RH Koh VGT

$

$

Not available

15

Husqvarna 532141070

Tank Fuel W/Sym Vented
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532109227

Pad Spacer

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532106082

Pad Spacer

$

$

Not available

18

Husqvarna 532140527

Cap Asm Fuel W/Sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 813290300

Plug Oil Drain (Order From Engine Manufacturer)

$

$

Not available

20

Husqvarna 532142168

Control Throttle
(Superseded to 532162150)

$

$

Not available

21

Husqvarna 817720410

Screw Hex Thd Cut 1/4 - 20 X 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 532138672

Control Choke

$

$

Not available

23

Husqvarna 819131316

Washer 13/32 X 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 811050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

25

Husqvarna 873610600

Nut Fin Hex 3/8 - 24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0

28

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532132920

Spark Arrester Kit

$

$

Not available

32

Husqvarna 817490508

Screw Thdrol 5/16 - 18 X 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 817720408

Screw Thd Cut 1/4 - 20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 810040500

Washer Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

36

Husqvarna 874570512

Screw Hex 5/16 - 16 UNC X 3/4

$3.99

$

In Stock, only 4 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 811050600

Lockwasher Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

39

Husqvarna 817490624

Screw Thdrol 3/8 - 16 X 1 - 1/2 TT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 817490652

Screw Thdrol 3/8 - 16 X 3 - 1/4

$

$

Not available

41

Husqvarna 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 871170768

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 532150280)

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 532142320

Switch Oil Sentry Kohler

$

$

Not available

45

Husqvarna 532142321

Wire Lead Sentry Kohler

$

$

Not available
