GT 20 (UT-26037) - Green Machine String Trimmer Ignition, Rotor, Clutch, Isolator Parts Diagram

String Trimmer

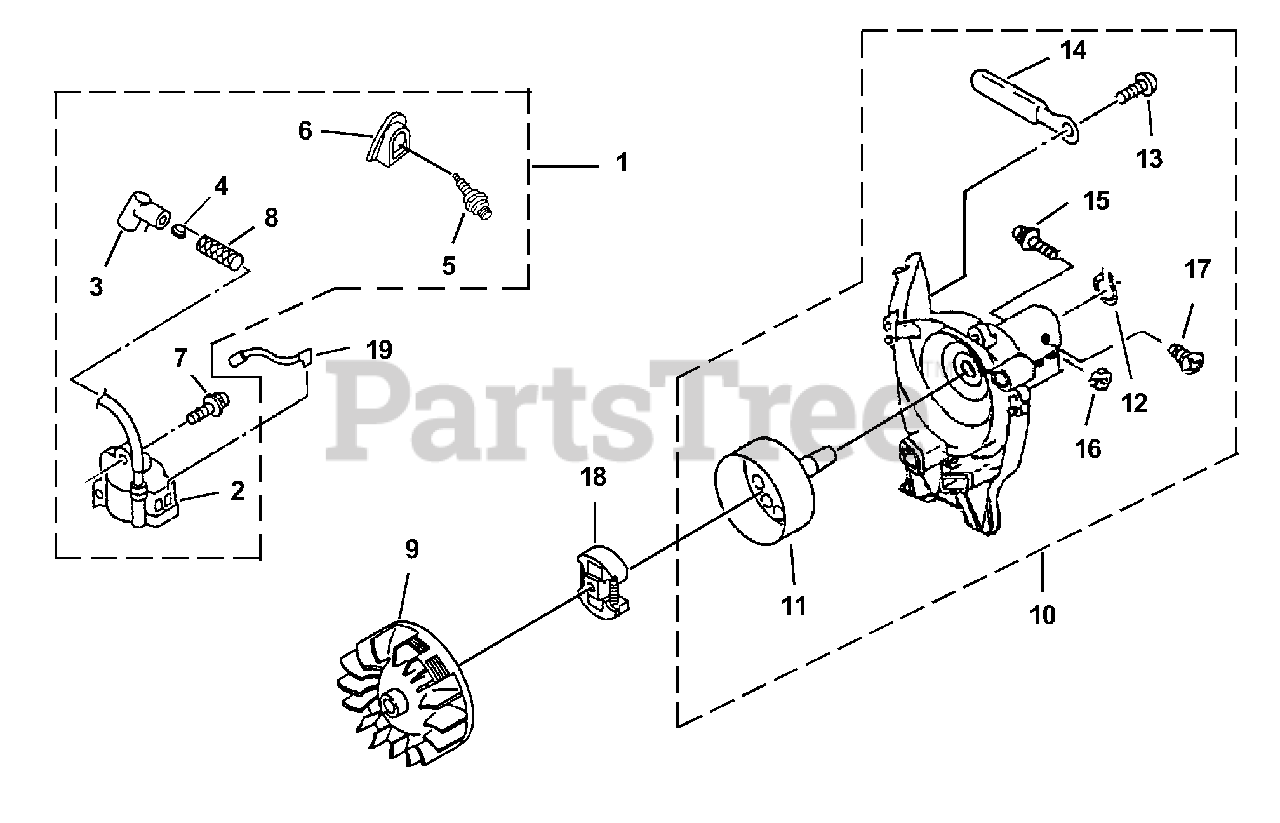

Ignition, Rotor, Clutch, Isolator Parts Diagram

  • Title

1

Homelite UP02932

IGNITION KIT

$

$

Not available

2

Homelite PS01425

MODULE-Ignition

$

$

Not available

3

Homelite PS00689

CAP-Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite UP02950

SPARK PLUG

Note: (Torque Specs - 105-155 In/Lbs; Nm 11.9-17.5)

$

$

Not available

6

Homelite PS01427

COVER-Plug Cap

$

$

Not available

7

Homelite PS00857

SCREW (M4 x 20 W SW)

Note: (Torque Specs - 18-26 In/Lbs; Nm 2.0-2.9)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite PS01426

SLEEVE

$

$

Not available

9

Homelite PS01424

ROTOR

$

$

Not available

10

Homelite UP03715

CLUTCH HOUSING

$

$

Not available

11

Homelite UP03842

CLUTCH DRUM

$

$

Not available

12

Homelite PS01436

SNAP RING-Outer

$

$

Not available

13

Homelite PS01429

SCREW-Self Tapping

$

$

Not available

14

Homelite PS01430

CLAMP-Wire

$

$

Not available

15

Homelite UP03843

SCREW ASSY. (M5 X 30 W SW)

$

$

Not available

16

Homelite UP03844

NUT (M5)
(Superseded to PS03303)

$

$

Not available

17

Homelite UP03845

SCREW-Tapping

$

$

Not available

18

Homelite PS01435

CLUTCH

$

$

Not available

19

Homelite PS01428

WIRE

$

$

Not available
