GT 20 (UT-26037) - Green Machine String Trimmer Air Filter, Carburetor, Fuel Tank Parts Diagram

String Trimmer

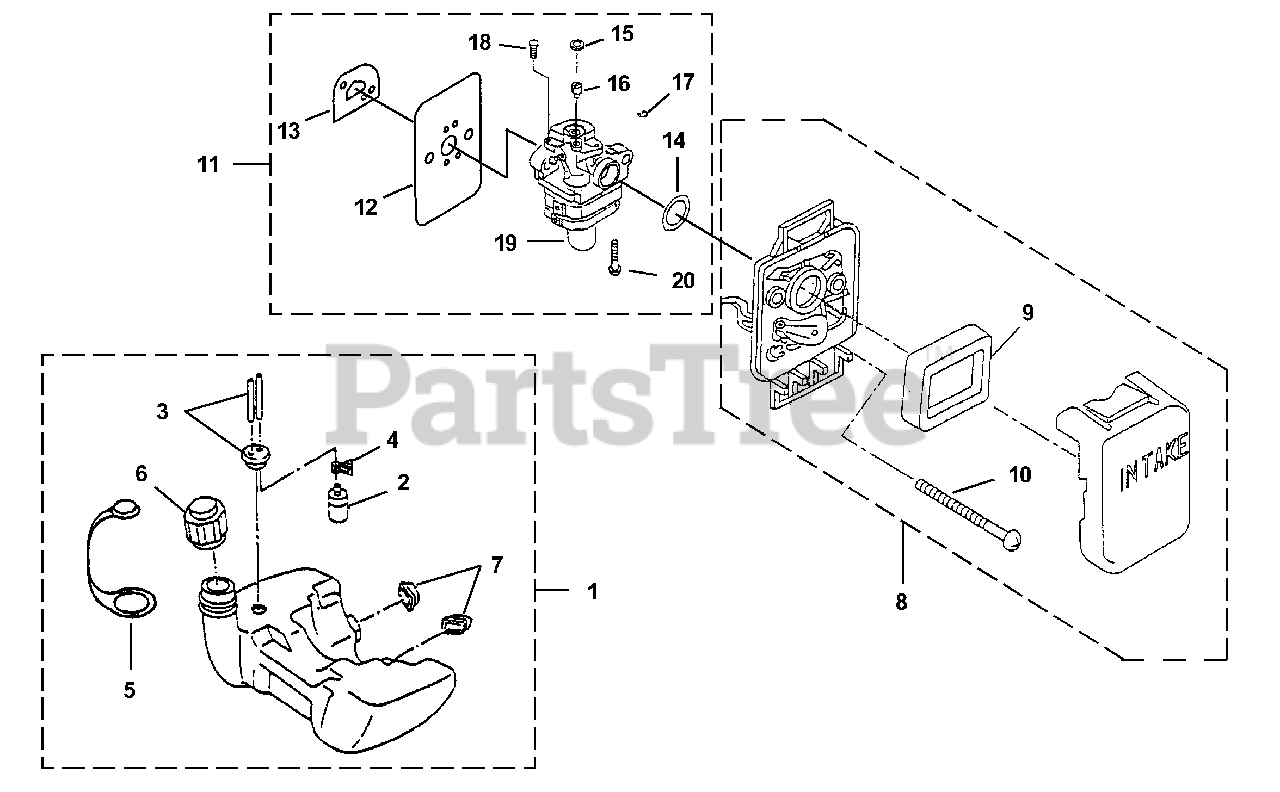

Air Filter, Carburetor, Fuel Tank Parts Diagram

  • Title

1

Homelite UP02931

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS01423

TUBE

$

$

Not available

4

Homelite PS00833

CLAMP-Hose

$

$

Not available

5

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

6

Homelite UP02946

CAP-Fuel

$

$

Not available

7

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available

8

Homelite UP02935

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite UP02949

FILTER-Air

$32.99

$

Usually ships in 3-7 days

0

10

Homelite PS01437

SCREW ASSEMBLY (M5 x 14)
(Superseded to PS00874)

Note: (Torque Specs - 18-26 In/Lbs; Nm 2.0-2.9)

$

$

Not available

11

Homelite UP02936

CARBURETOR ASSEMBLY

$

$

Not available

12

Homelite PS01412

GASKET-Carburetor

$

$

Not available

13

Homelite PS01411

GASKET-Heat Dam

$

$

Not available

14

Homelite PS01438

RING-Packing

$

$

Not available

15

Homelite PS01439

CAP

$

$

Not available

16

Homelite PS01440

SWIVEL-Throttle Cable

$

$

Currently unavailable

17

Homelite PS00870

E-RING

$

$

Not available

18

Homelite PS00700

SCREW

$

$

Not available

19

Homelite PS01441

PUMP-Primer
(Superseded to UP04802)

$8.49

$

In Stock, only 4 left!

0

20

Homelite PS01442

SCREW-Primer Cover

$

$

Not available
