GT 190 (954820051-A) - Husqvarna Garden Tractor (1996-01) MOWER LIFT / DECK LIFT Parts Diagram

Garden Tractor

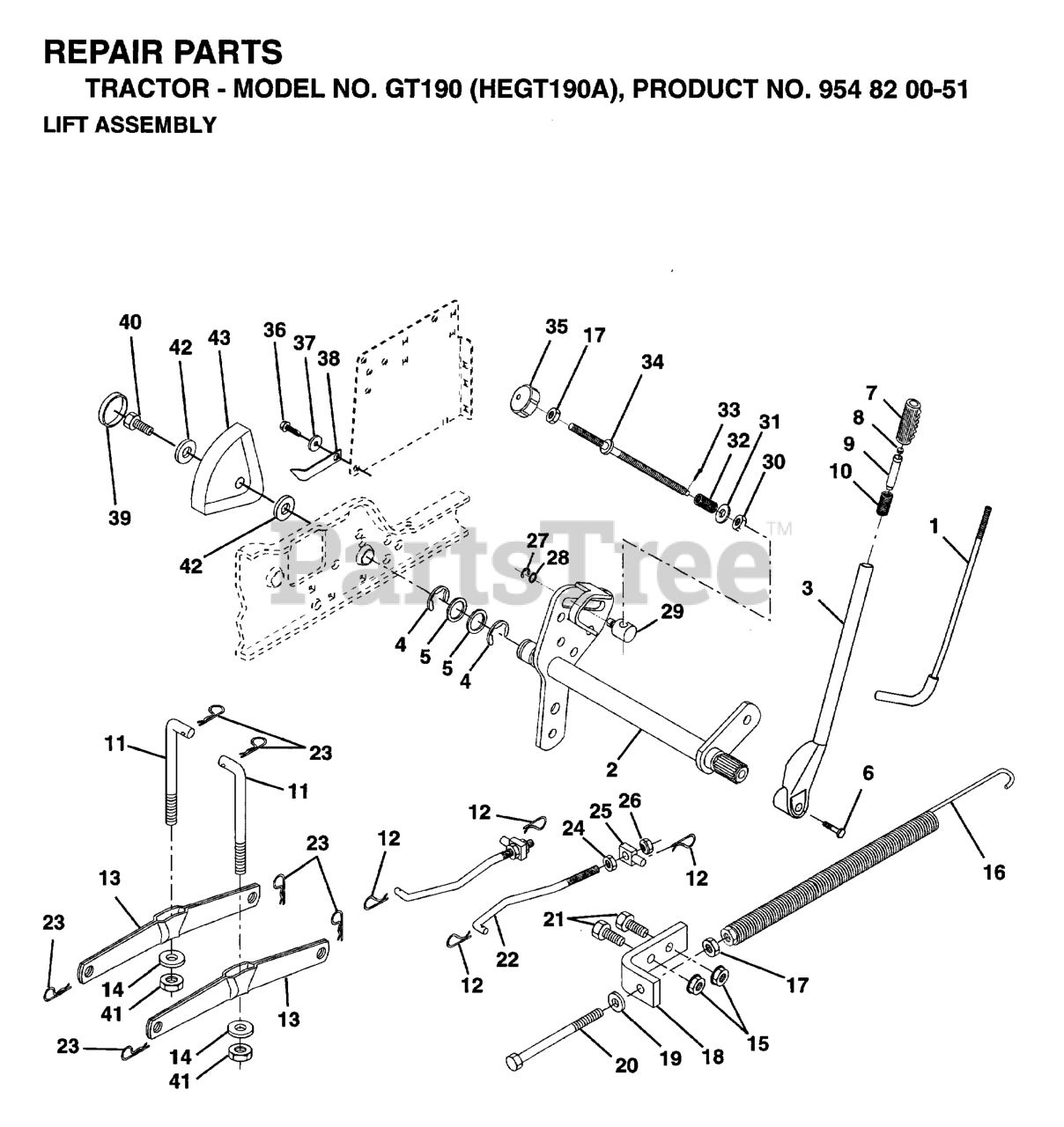

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

15

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

28

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Gauge

$

$

Not available

27

Husqvarna 812000037

Ring, Klip #T5304-37

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 819112410

WASHER

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532110807

NUT T

$

$

Not available

34

Husqvarna 532137167

ROD.LIFT.ADJUSTABLE

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532110810

TRUNION LT

$

$

Not available

13

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532146704

LINK LIFT
(Superseded to 532145543)

$

$

Not available

40

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532124687

LIFT SPRING
(Superseded to 532674247)

$

$

Not available

1

Husqvarna 532121006

LEVER ROD LT

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000022

E-RING

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 819131016

WASHER

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 532137150

SPRING.COMP.INF.H

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532138346

POINTER HGT
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532121002

LIFT LEVER KIT
(Superseded to 532123096)

$

$

Not available

2

Husqvarna 532145542

SHAFT ASM, LIFT VGT
(Superseded to 532192468)

$

$

Not available

6

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532143363

BRACKET

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532005328

BOLT

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

25

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

33

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

35

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532120529

WASHER T

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

12

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

22

Husqvarna 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

23

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

39

Husqvarna 532123935

PLUG,HOLE

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

41

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available
