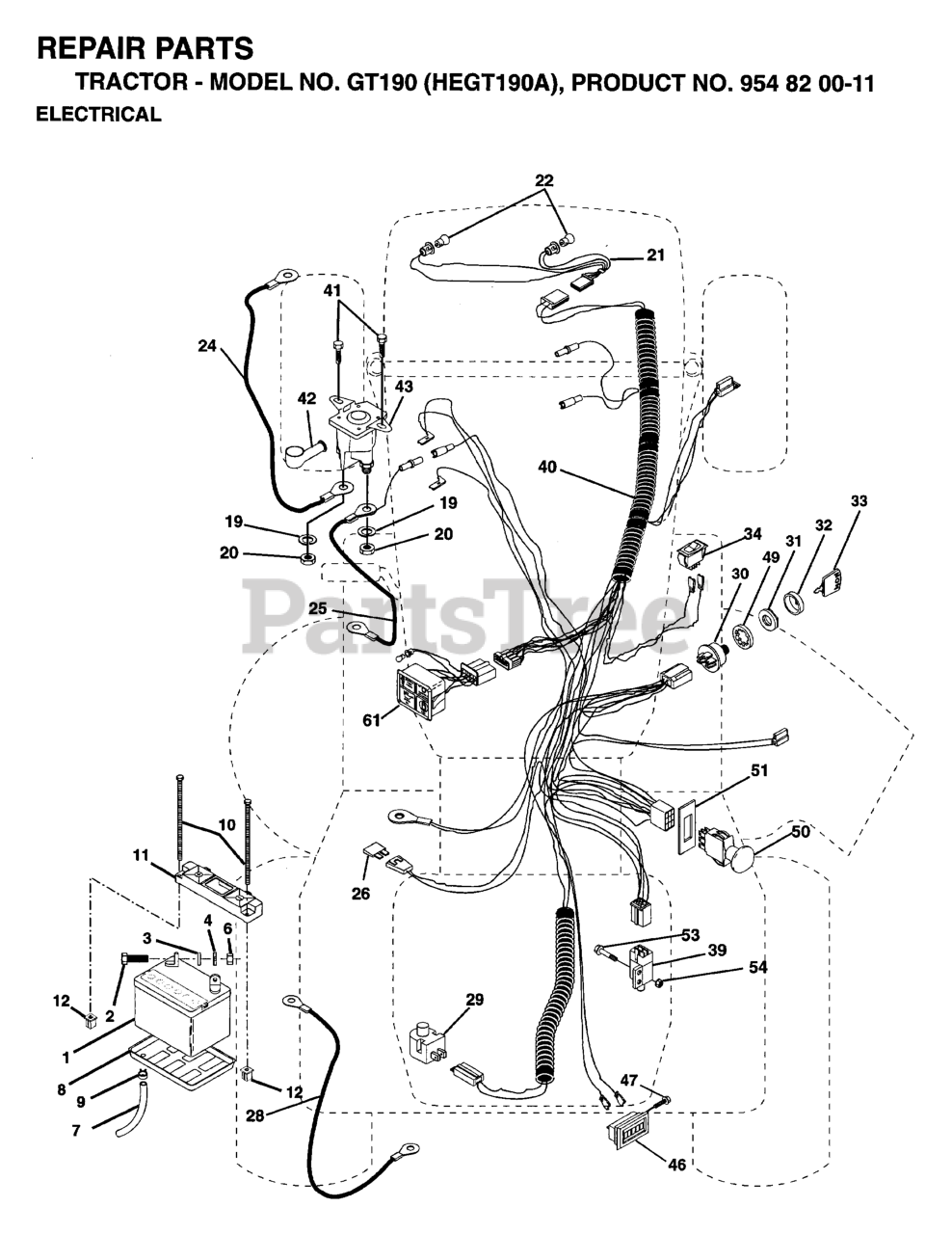

GT 190 (954820051-A) - Husqvarna Garden Tractor (1996-01) ELECTRICAL Parts Diagram

Garden Tractor

ELECTRICAL Parts Diagram

  • Title

61

Husqvarna 532138101

LIGHT PACKAGE

$

$

Not available

39

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532124773

CABLE T
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 532007697

PLASTIC TUBE

$

$

Not available

40

Husqvarna 532151174

NEEDS DESCRIPTION

$85.99

$

Usually ships in 3-10 days

0

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

31

Husqvarna 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

9

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532144921

IGNITION SWITCH
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

51

Husqvarna 532140405

FRAME RETAINING RING

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532145209

HOLDDOWN, BATTERY, DASH MOUNT
(Superseded to 532150109)

$

$

Not available

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

1

Husqvarna 532146140

BATTERY 12 VOLT 30 AMP WET
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 8

0

53

Husqvarna 871031008

SCREW **
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532140404

SWITCH-PTO
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817011008

Screw 10-24 x 1/2 Black

$

$

Not available

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

49

Husqvarna 811151000

Washer, Lock Internal Tooth 5/8

$

$

Not available

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

25

Husqvarna 532146149

CABLE, BATTERY

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 873951000

Nut, Hex, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532110143

BULB LIGHT T

$

$

Not available
