GT-1855 (147-996-190) - White Outdoor 50" Garden Tractor (1988) Body Assembly Parts Diagram

50" Garden Tractor

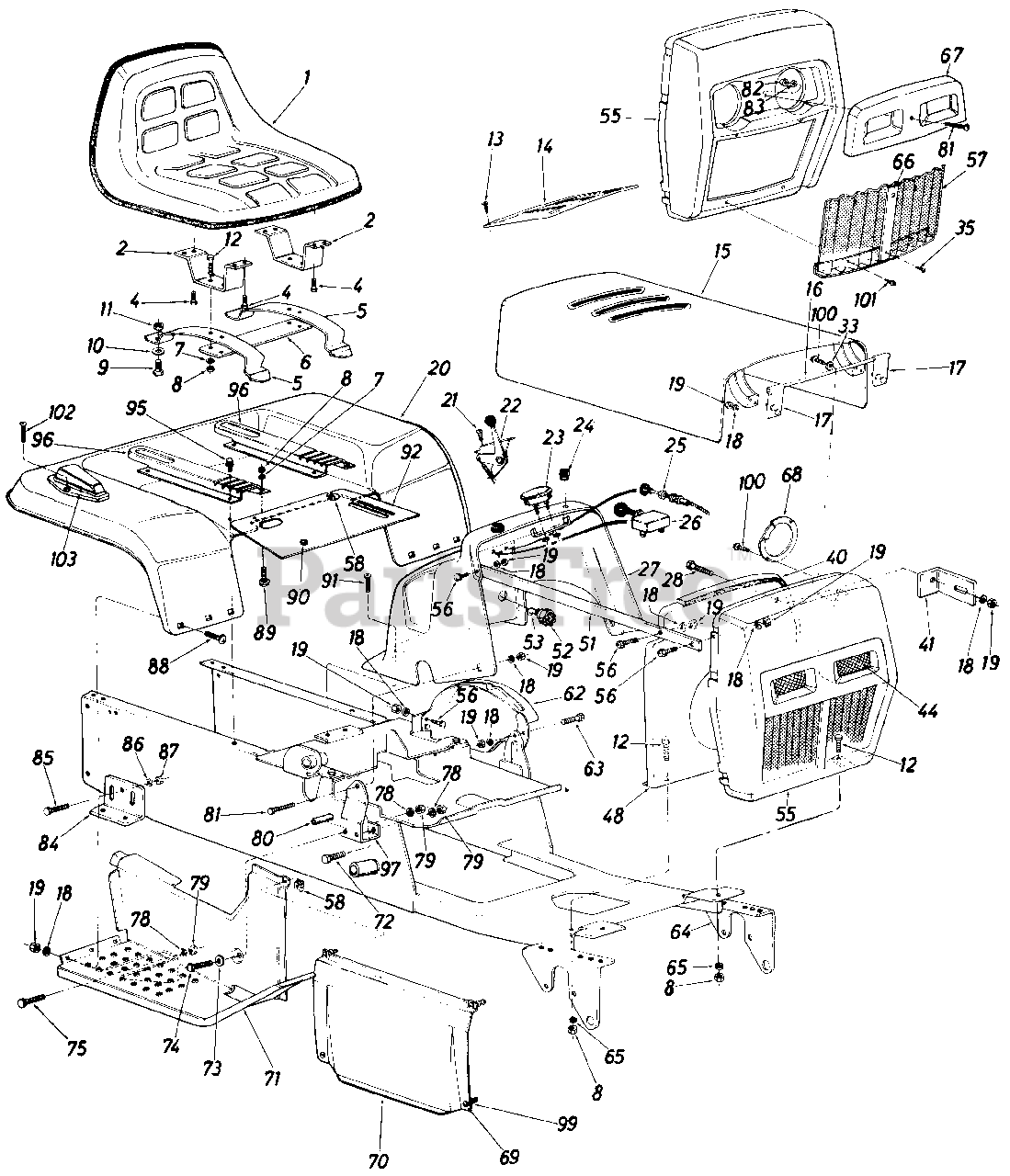

Body Assembly Parts Diagram

  • Title

1

White Outdoor 757-0318

Seat Ass'y. Comp.
(Superseded to 957-0318)

$

$

Not available

2

White Outdoor 14225

Seat Support Brkt.

$

$

Not available

4

White Outdoor 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 13123

Seat Spring

Variations

White Outdoor 13123-0637

SEAT SPRING - POWDER BLACK (0637)

$

$

Not available

$

$

6

13214

Seat Support Plate

$

$

Not available

7

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 710-0689

Nylon Scr. 1/2-13 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0160

Fl-Wash. .531 I.D. x .930 O.D.

$4.49

$

In Stock, only 2 left!

0

11

White Outdoor 712-0384

Hex Cent. L-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

12

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0697

Self-Tap Oval Hd. Scr. 1/2" Lg .

$

$

Not available

14

White Outdoor 731-0568

Dash Panel Cover

$

$

Not available

15

13772

Hood Ass'y.

$

$

Not available

16

White Outdoor 747-0231

Hinge Rod

$

$

Not available

17

White Outdoor 13581

Hood Hinge Ass'y.

$

$

Not available

18

White Outdoor 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

19

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

20

13106

Rear Fender

$

$

Not available

21

710-0721

Fl-Hd. Truss Scr. #10 x .62" Lg.

$

$

Not available

22

746-0342

Throttle Control

$

$

Not available

23

White Outdoor 725-0119

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

24

White Outdoor 735-0199

Rubber Bumper
(Superseded to 935-0199A)

$7.99

$

In Stock, only 1 left!

0

25

White Outdoor 746-0343

Choke Control

$

$

Not available

26

White Outdoor 725-0670

Light Switch

$

$

Not available

27

White Outdoor 731-0463

Dash Panel

$

$

Not available

28

White Outdoor 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

White Outdoor 13689

Hood Support Brkt. Ass'y. R. H.

$

$

Not available

33

White Outdoor 736-0211

Fl-Wash. .250 I.D. x 1.25 O.D.

$6.99

$

In Stock, only 3 left!

0

35

UNKNOWN

$

$

Not available

White Outdoor 710-0294

Hex Scr. 1/4-20 x .38" Lg.

$3.49

$

Usually ships in 3-6 days

0

40

White Outdoor 722-0136

Foam Strip

$

$

Not available

41

13724

Heat Shield Brkt.

$

$

Not available

44

White Outdoor 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

48

White Outdoor 13569

Heat Shield

$

$

Not available

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

51

White Outdoor 13725

Grille Strap

$

$

Not available

52

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

53

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

55

13200

Grille

$

$

Not available

56

White Outdoor 710-0252

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 731-0881

Grille Screen

$

$

Not available

58

726-0169

Clip-On Receptacle

$

$

Not available

62

White Outdoor 13528

Speed Control Guide

$

$

Not available

63

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 13509

Frame Ass'y.

$

$

Not available

65

White Outdoor 736-0242

Bell-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

66

723-0337

Moulding

$

$

Not available

67

White Outdoor 731-0465

Headlight Bezel

$

$

Not available

68

White Outdoor 09960

Headlight Retainer

$

$

Not available

69

726-0167

1/4-Turn Stud

$

$

Not available

70

White Outdoor 13525

Hood Lower Side Panel

$

$

Not available

71

White Outdoor 13576

Foot Step Panel Ass'y. R.H.

$

$

Not available

White Outdoor 13577

Foot Step Panel Ass'y. L.H.

Note: (Not Shown)

$

$

Not available

72

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 736-0117

Fl-Wash. .385 I.D. x .62 O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

74

White Outdoor 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

75

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

80

White Outdoor 750-0261

Spacer .375 I.D. x .62 O.D. x 2.00" Lg.

$

$

Not available

81

White Outdoor 710-0467

Truss Mach. Scr. #10-24 x 1.0" Lg.

$

$

Not available

82

White Outdoor 712-0425

Sq. Nut #10-24 Thd.
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 736-0147

Ext. L-Wash. #10 I.D.
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

84

White Outdoor 13066

Transaxle Support Brkt.

$

$

Not available

85

White Outdoor 710-0617

Rd. Hd. Rib Neck Scr. 3/8-24

$4.49

$

Usually ships in 3-6 days

0

86

White Outdoor 736-0217

L-Wash. 3/8" Scr.

$4.49

$

In Stock, Qty 6

0

87

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

88

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

89

White Outdoor 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 731-0405

Snap Bushing

$

$

Not available

91

White Outdoor 710-0618

Fl-Hd. Self-Tap Scr. 1/4-20 x .62" Lg.

$

$

Not available

92

White Outdoor 13529

Transmission Cover

Variations

White Outdoor 13529-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 13529-0637

No Longer Available COVER-CONTROL - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13529-0648

No Longer Available COVER-CONTROL - TECH GRAY (0648)

$

$

Not available

White Outdoor 13529-0665

No Longer Available COVER-CONTROL - YARDMAN GREEN (0665)

$

$

Not available

$

$

95

White Outdoor 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

96

White Outdoor 13124

Seat Adjustment Brkt.

$

$

Not available

97

White Outdoor 13536

Dash Panel Mtg. Brkt.

Variations

White Outdoor 13536-0637

No Longer Available BRACKET ASSY-INSTR - POWDER BLACK (0637)

$

$

Not available

$

$

99

726-0168

Retainer

$

$

Not available

100

White Outdoor 710-0599

Thread Rolling Scr. 1/4"

$4.49

$

In Stock, Qty 20+

0

101

728-0148

Drive Scr. #7

$

$

Not available

102

White Outdoor 710-0535

Fl. C-Sunk AB-Tap Scr. #10 x 1.0" Lg.
(Superseded to 710-0841)

$4.49

$

Usually ships in 3-6 days

0

103

White Outdoor 725-0612

Taillight
(Superseded to 925-0612)

$

$

Not available
