GT-1855 (146-995-190) - White Outdoor 50" Garden Tractor (1986) Speed Control Assembly Parts Diagram

50" Garden Tractor

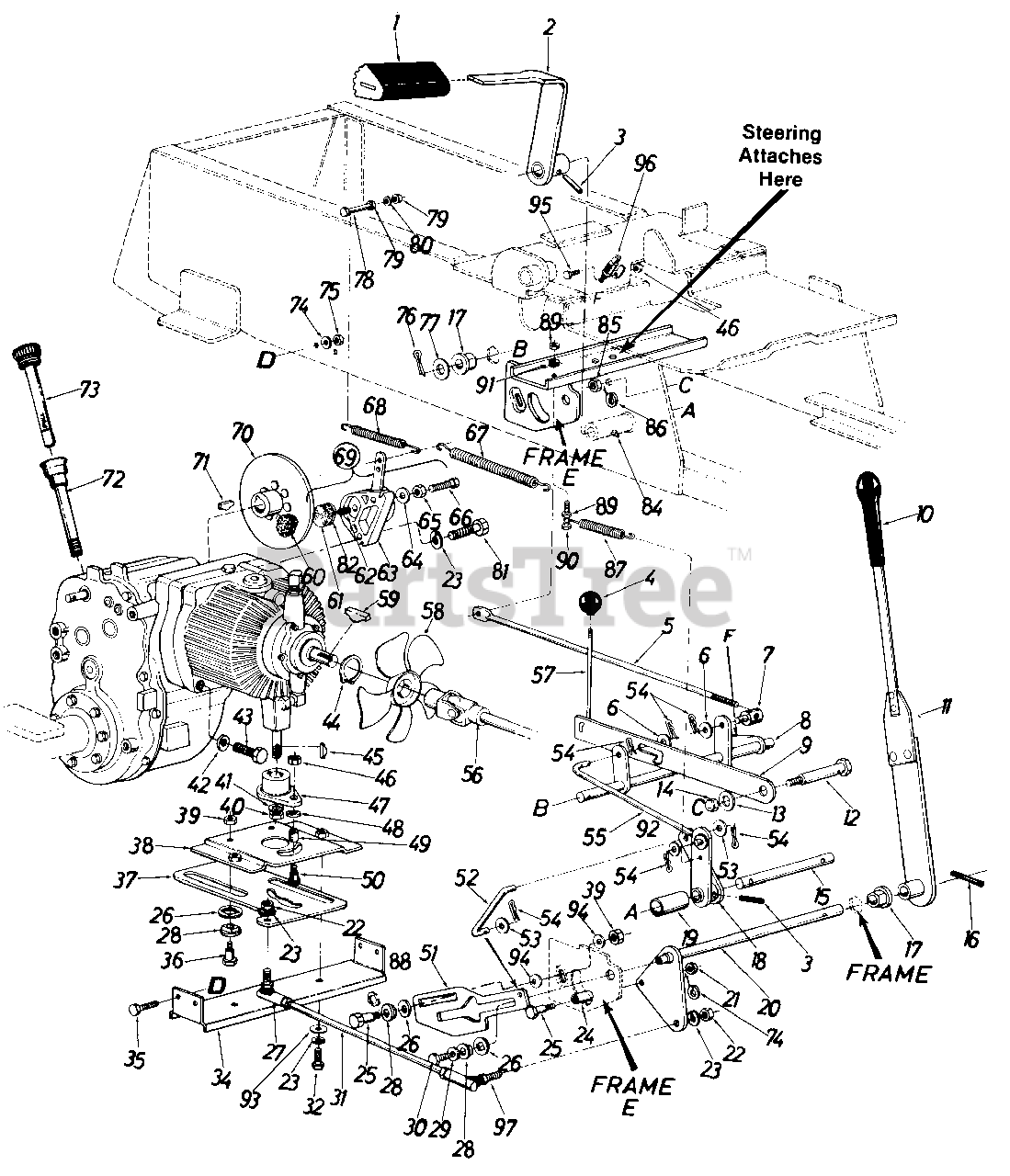

Speed Control Assembly Parts Diagram

  • Title

1

White Outdoor 735-0189

Foot Pad

$

$

Not available

2

White Outdoor 13080

Foot Pedal Brkt. Ass'y. R. H .

Variations

White Outdoor 13080-0637

No Longer Available BRACKET-FOOT PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50 " Lg.

$9.49

$

In Stock, Qty 20+

0

4

White Outdoor 720-0166

Ball Knob Brake

$

$

Not available

5

White Outdoor 747-0283

Brake Rod

$

$

Not available

6

White Outdoor 736-0101

Fl-Wash. .375" I.D. x 1.00" O.D. x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

7

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

8

13548

Brake Transfer Shaft Ass'y.

$

$

Not available

9

13523

Parking Brake Cam

$

$

Not available

10

White Outdoor 720-0143

Grip

$

$

Not available

11

13787

Control Arm Ass'y. Comp.

$

$

Not available

12

White Outdoor 738-0186

Shld. Scr. .62 Dia. x 2.75" Lg.

$

$

Not available

13

White Outdoor 736-0187

Fl-Wash. .460 I.D. x 1.24 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

14

712-0222

Push Speed Nut for .625 Dia. Shaft

$

$

Not available

15

White Outdoor 738-0402

Brake Pivot Shaft

$

$

Not available

16

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

17

White Outdoor 741-0225

Hex Flange Brg. Plastic .62 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

18

White Outdoor 13505

Brake Hub Ass'y.

$

$

Not available

19

White Outdoor 750-0181

Spacer

$

$

Not available

20

White Outdoor 13565

Control Handle Ass'y.

$

$

Not available

21

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

22

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

23

White Outdoor 736-0169

L-Wash. 3/8" Scr.'

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 748-0270

Spacer

$

$

Not available

25

White Outdoor 738-0138

Shoulder Bolt
(Superseded to 738-0138A)

$6.99

$

In Stock, only 2 left!

0

26

736-0303

Fl-Wash. .63 Sq. Hole x 1.25" O.D.

$

$

Not available

27

White Outdoor 723-0351

Ball Joint Ass'y. 318-24 Th d . L. H .
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

28

White Outdoor 748-0180

Pivot Slide

$

$

Not available

29

White Outdoor 736-0159

Fl-Wash. .312 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 710-0643

Hex Ins. Scr. 5/16-18 x 1.00" Lg .

$6.99

$

In Stock, Qty 5

0

31

White Outdoor 747-0365

Tie Rod
(Superseded to 747-0365A)

$

$

Not available

32

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

34

White Outdoor 13562

Support Channel

$

$

Not available

35

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 738-0141

Shld. Scr. .437" Dia. x .350
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

37

White Outdoor 13555

Cam Plate

$

$

Not available

38

White Outdoor 13557

Slide Mtg. Plate Ass'y.

$

$

Not available

39

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

40

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 6

0

42

White Outdoor 736-0300

Fl-Wash. .385 I.D. x .87 0 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0492

Socket Hd. Scr. 3/8-16 x 2.75" Lg.

$

$

Not available

44

White Outdoor 716-0123

Snap Ring

$

$

Not available

45

White Outdoor 714-0131

#5 Hi-Pro Key 1/8" x 5/8" Dia.

$

$

Not available

46

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

47

White Outdoor 13559

Pintle Plate Ass'y.

$

$

Not available

48

White Outdoor 736-0142

Fl-Wash. .281 I.D. x .50 O.D. x .063

$4.99

$

In Stock, Qty 20+

0

49

White Outdoor 741-0154

Needle Brg. .31" I.D. x .50" O.D. x .437" Lg.

$

$

Not available

50

White Outdoor 710-0491

Shld. Scr. .31 Dia. x .500

Note: (Socket Head)

$12.99

$

Usually ships in 3-6 days

0

51

White Outdoor 13556

Neutral Control Slide
(Superseded to 13556A)

$

$

Not available

52

747-0287

Neutral Control Rod

$

$

Not available

53

White Outdoor 736-0264

Fl-Wash. .32 I.D. x .630 O.D. x .063

$6.99

$

In Stock, only 2 left!

0

54

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 13702

Brake Link Rod Ass'y.

$

$

Not available

56

White Outdoor 717-0402

Universal Joint Ass'y. Comp.

$

$

Not available

57

White Outdoor 747-0282

Parking Brake Link

$

$

Not available

58

White Outdoor 731-0317

Fan Ass'y.
(Superseded to 931-0317)

$

$

Not available

59

White Outdoor 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

60

White Outdoor HU-24-13772

Lining Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

61

White Outdoor HU-24-13772

Lining Brake
(Superseded to 761-04060)

$32.99

$

In Stock, Qty 9

0

62

White Outdoor HU-39-13774

Actuator Pin

$

$

Not available

63

HU-39-14232

Housing with Lever and Pin

$

$

Not available

64

HU-20-9764

Washer

$

$

Not available

65

White Outdoor HU-37-13818

Nut
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor HU-39-13775

Adjustment Pin
(Superseded to HU-A611030003)

$

$

Not available

67

White Outdoor 732-0260

Extension Spring .59 O.D. x 6.5" Lg.
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

68

White Outdoor 732-0157

Extension Spring

Note: (Brake Return)

$14.99

$

Usually ships in 3-6 days

0

69

White Outdoor 761-0170

Disc Brake Ass'y. Comp.

$

$

Not available

70

White Outdoor 761-0142

Brake Disc Ass'y.

$

$

Not available

71

White Outdoor 714-0137

Hi-Pro Key 3/16 x 314" Dia.

$

$

Not available

72

White Outdoor 751-0239

Dipstick Tube Ass'y.

$

$

Not available

73

White Outdoor 751-0240

Dipstick Ass'y.
(Superseded to 951-0240)

$

$

Not available

74

White Outdoor 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

75

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

76

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

77

White Outdoor 736-0162

Fl-Wash. .635" I.D. x 1.00 O.D. x .120 Thk.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 710-0102

Hex Scr. 1/4-20 x 2.50" Lg.
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

79

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

80

White Outdoor 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

81

White Outdoor 710-0342

Hex Scr 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor HU-25-13808

Backing Plate
(Superseded to HU-A611950129)

$

$

Not available

84

White Outdoor 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

85

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 736-0171

L-Wash. 7/16" Scr.

$4.49

$

In Stock, Qty 5

0

87

White Outdoor 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

88

White Outdoor 736-0141

Wave Wash.
(Superseded to 936-0141)

$6.99

$

In Stock, only 2 left!

0

89

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

90

White Outdoor 710-0106

Hex Scr. 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

91

White Outdoor 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

92

White Outdoor 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

93

White Outdoor 736-0427

Fl-Wash. .38 I.D. x 1.25 O.D.
(Superseded to 936-0427)

$

$

Not available

94

White Outdoor 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 710-0289

Hex Scr. 1/4-20 x 1/2 Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

96

White Outdoor 725-0577

Safety Switch

Note: (Clutch)

$

$

Not available

97

White Outdoor 723-0156

Ball Joint Ass'y. 318-24 Thd. R. H .
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0
