GT-1855 (145-992-190) - White Outdoor 50" Garden Tractor (1995) Frame Assembly, Dash And Hood Parts Diagram

50" Garden Tractor

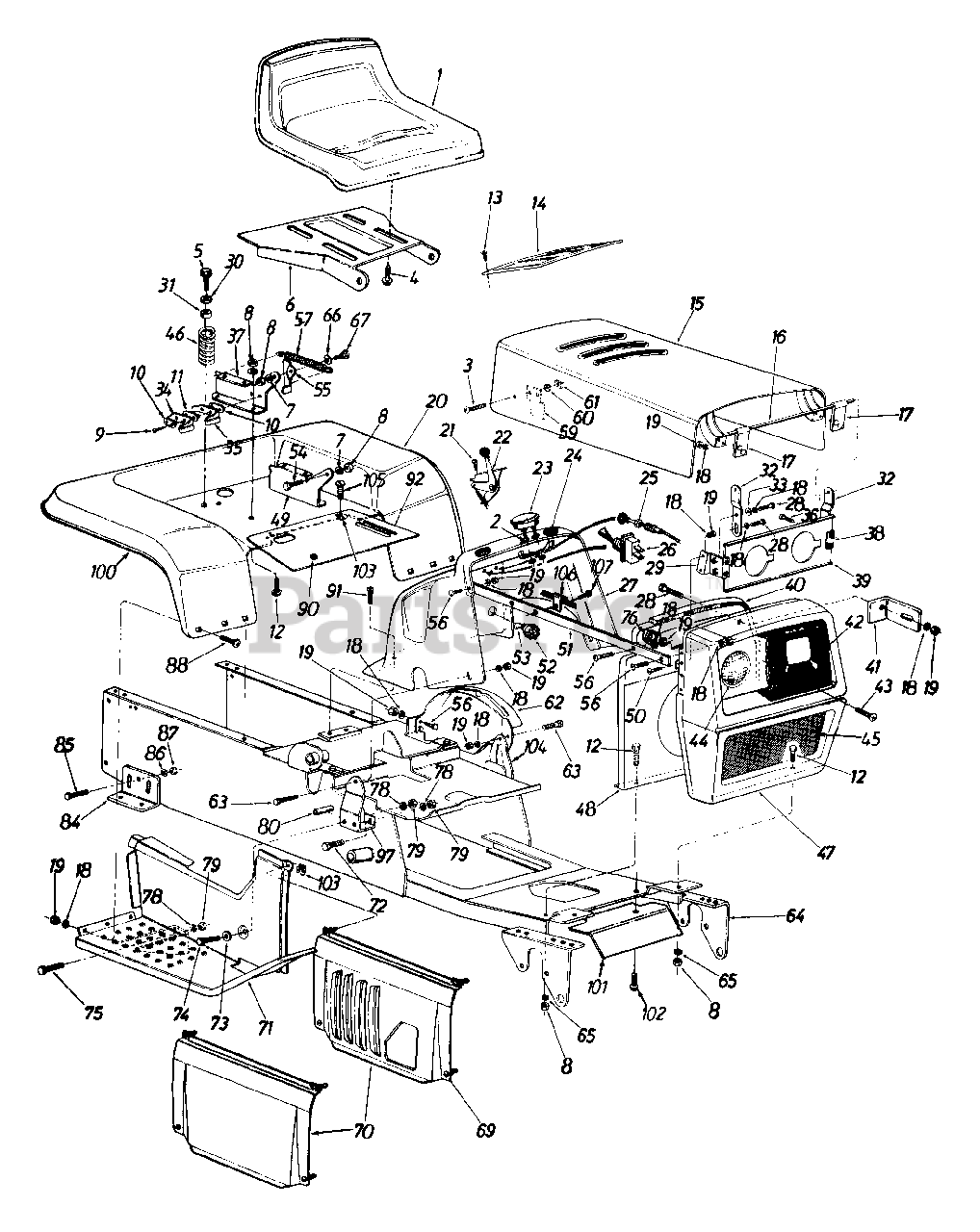

Frame Assembly, Dash And Hood Parts Diagram

  • Title

1

White Outdoor 757-0370

Seat Ass'y.
(Superseded to 957-0370A)

$

$

Not available

2

White Outdoor 736-0722

L-Wash. .190" I.D.

$6.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0192

Truss Hd. Mach. Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

4

White Outdoor 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-1260

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 783-0039

Seat Pivot Bracket
(Superseded to 783-0039A)

Variations

White Outdoor 783-0039-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0039-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

12

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0697

Self-Tap Oval Hd. Scr. 1/2" Lg.

$

$

Not available

14

White Outdoor 731-0384

Dash Panel Cover

$

$

Not available

15

White Outdoor 13472A

Hood Ass'y.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 13472A-0638

No Longer Available HOOD ASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 13472A-0648

No Longer Available HOOD ASSY - TECH GRAY (0648)

$

$

Not available

White Outdoor 13472A-0662

No Longer Available HOOD ASSY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 13472A-0674

No Longer Available HOOD ASSY - YARDMAN YELLOW (0674)

$

$

Not available

$

$

16

White Outdoor 747-0231

Hinge Rod

$

$

Not available

17

White Outdoor 13581

Hood Hinge Ass'y.

$

$

Not available

18

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

20

White Outdoor 783-0029

Rear Fender

$

$

Not available

White Outdoor 783-0140

Fender w/Tail light Hole

Variations

White Outdoor 783-0140-0480

No Longer Available FENDER - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0140-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0140-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0140-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0140-0648

No Longer Available FENDER - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0140-0662

No Longer Available FENDER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0140-0665

No Longer Available FENDER - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

White Outdoor 710-0841

Fl-C-Sunk Hd. Tap Scr.

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 746-0915

Throttle Control

$

$

Not available

23

White Outdoor 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

24

White Outdoor 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

25

White Outdoor 746-0914

Choke Control

$

$

Not available

26

White Outdoor 725-0646

Light Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

27

White Outdoor 731-0463

Dash Panel

$

$

Not available

28

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 13689

Hood Support Brkt. Ass'y. - R.H.

$

$

Not available

30

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 722-0160

Bushing

$

$

Not available

32

White Outdoor 13585

Hinge Rod Support

Variations

White Outdoor 13585-0637

No Longer Available SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 736-0211

Fl-Wash. .250" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 7

0

34

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

35

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

36

White Outdoor 710-0294

Hex Bolt 1/4-20 x .38" Lg.

$3.49

$

Usually ships in 3-6 days

0

37

White Outdoor 17950

Seat Pivot Support Brkt. - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

38

White Outdoor 13690

Hood Support Brkt. Ass'y. - L.H.

$

$

Not available

39

White Outdoor 13687

Head Lamp Retainer

Variations

White Outdoor 13687-0637

No Longer Available RETAINER-HEADLAMP - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 722-0136

Foam Strip

$

$

Not available

41

13724

Heat Shield Brkt.

$

$

Not available

42

White Outdoor 731-0465

Head Lamp Bezel

$

$

Not available

43

White Outdoor 710-0425

Truss Mach. Scr. #10-24 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

45

White Outdoor 13730

Grille Screen

$

$

Not available

46

White Outdoor 732-3075

Compression Spring 4.5" Lg.

$

$

Not available

47

White Outdoor 783-0101

Grille

Variations

White Outdoor 783-0101-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0101-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0101-0674

No Longer Available GRILLE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

48

White Outdoor 783-0110

Heat Shield

Variations

White Outdoor 783-0110-0637

No Longer Available SHIELD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 17951

Seat Pivot Support Brkt. - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

51

White Outdoor 13725

Grille Strap

$

$

Not available

52

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

53

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

54

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

55

17239B

Seat Lift Bracket

$

$

Not available

56

White Outdoor 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

59

White Outdoor 732-0391

Hood Spring

$

$

Not available

60

White Outdoor 736-0722

L-Wash. #10

$6.99

$

Usually ships in 3-6 days

0

61

White Outdoor 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 13528

Speed Control Guide

$

$

Not available

63

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 13509D

Frame Ass'y.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 13509D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 13509D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13509D-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 13509D-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 736-0141

Spr. Wash. .445" I.D. x .75"
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

67

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

70

White Outdoor 783-0108

Side Panel - R.H.

Variations

White Outdoor 783-0108-0483

No Longer Available PANEL-SIDE RH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0108-0638

No Longer Available PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0108-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0108-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0108-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

White Outdoor 783-0109A

Side Panel - L.H.

Note: (Not shown). Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0109A-0648

No Longer Available PANEL-SIDE LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0109A-0662

PANEL-SIDE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0109A-0665

No Longer Available PANEL-SIDE LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

71

White Outdoor 683-0074

Foot Step Panel Ass'y. - R.H.

Variations

White Outdoor 683-0074-0637

No Longer Available PANEL ASSY-FOOT-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0074-0638

No Longer Available PANEL ASSY-FOOT-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0074-0648

No Longer Available PANEL ASSY-FOOT-RH - TECH GRAY (0648)

$

$

Not available

$

$

White Outdoor 683-0073

Foot Step Panel Ass'y. - L.H.

Note: (Not shown)

Variations

White Outdoor 683-0073-0648

No Longer Available PANEL ASSY-FOOT-LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0073-0665

No Longer Available PANEL ASSY-FOOT-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 736-0117

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

74

White Outdoor 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

75

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 723-3045

Snap Bushing

$

$

Not available

78

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

80

White Outdoor 750-0261

Spacer .375" I.D. x .62" O.D. x 2.00" Lg.

$

$

Not available

84

White Outdoor 13066

Transaxle Support Brkt.

$

$

Not available

85

White Outdoor 710-0617

Rd. Hd. Rib Neck Scr. 3/8-24

$4.49

$

Usually ships in 3-6 days

0

86

White Outdoor 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

87

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 5)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

88

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

90

White Outdoor 731-0405

Snap Bushing

$

$

Not available

91

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 13529

Transmission Cover

Variations

White Outdoor 13529-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 13529-0637

No Longer Available COVER-CONTROL - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13529-0648

No Longer Available COVER-CONTROL - TECH GRAY (0648)

$

$

Not available

White Outdoor 13529-0665

No Longer Available COVER-CONTROL - YARDMAN GREEN (0665)

$

$

Not available

$

$

97

White Outdoor 13536

Dash Panel Mtg. Brkt. - R.H.

Variations

White Outdoor 13536-0637

No Longer Available BRACKET ASSY-INSTR - POWDER BLACK (0637)

$

$

Not available

$

$

100

White Outdoor 731-0511-84

Trim Strip 84" Lg.

$103.99

$

Usually ships in 3-6 days

0

101

White Outdoor 783-0113

Dust Shield

Variations

White Outdoor 783-0113-0648

No Longer Available SHIELD-DUST - TECH GRAY (0648)

$

$

Not available

$

$

102

White Outdoor 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$6.99

$

In Stock, only 2 left!

0

103

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

104

White Outdoor 683-0023

Dash Panel Mtg. Brkt. - L.H.

$

$

Not available

105

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

106

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

107

White Outdoor 710-0607

Self-Tap Scr. 5/16 x .5" Lg.

$6.99

$

In Stock, Qty 11

0
