GT-1855 (145-992-190) - White Outdoor 50" Garden Tractor (1995) Battery, Switches And Wiring Harness Parts Diagram

50" Garden Tractor

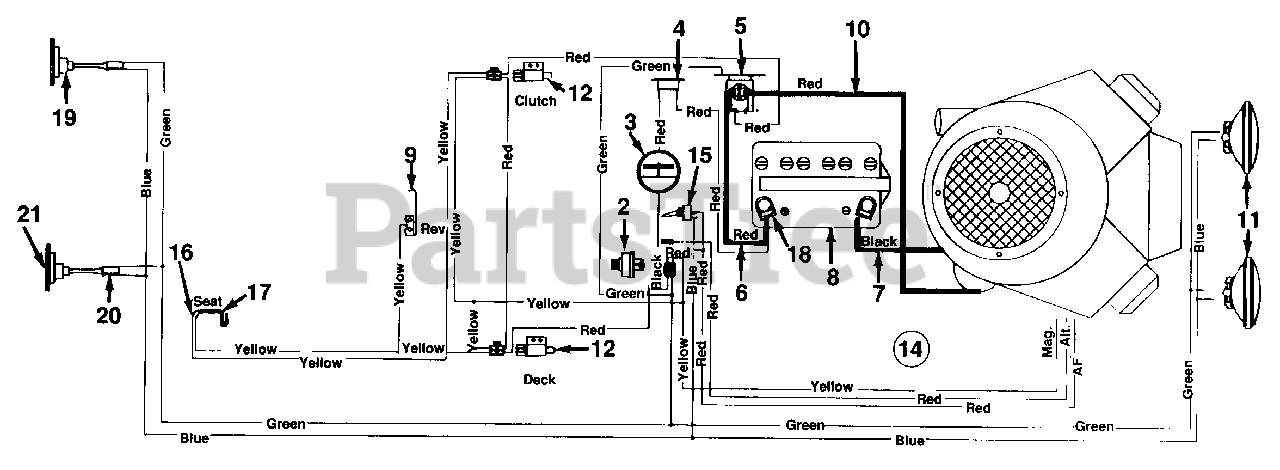

Battery, Switches And Wiring Harness Parts Diagram

  • Title
?1

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

Note: (Not shown)

$9.49

$

In Stock, only 1 left!

0

2

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

3

White Outdoor 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

4

White Outdoor 725-1382

Circuit Breaker 20 Amp

$

$

Not available

5

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

6

725-0558

Electric Wire

$

$

Not available

7

White Outdoor 725-0994

Electric Wire
(Superseded to 629-0739)

$

$

Not available

8

White Outdoor 725-0453B

Battery
(Superseded to 925-0453G)

$

$

Not available

9

White Outdoor 725-1644

Spring Switch

Note: (Reverse Safety)

$9.99

$

In Stock, only 1 left!

0

10

White Outdoor 725-0562

Electric Wire
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

11

White Outdoor 725-0222

Headlights
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

12

White Outdoor 725-1657

Safety Switch
(Superseded to 925-1657A)

Note: (PTO & Clutch)

$24.99

$

In Stock, Qty 5

0

14

629-0119

Wire Harness

$

$

Not available

15

White Outdoor 725-0646

Light Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

16

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

17

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 8

0

18

White Outdoor 725-0662

Battery Boot
(Superseded to 725-3007A)

$

$

Not available

19

White Outdoor 725-0612

Tail light
(Superseded to 925-0612)

$

$

Not available

20

White Outdoor 725-1380

Tail light Harness

$

$

Not available

21

White Outdoor 725-3020

Tail light Bulb
(Superseded to 925-3020)

$

$

Not available
