GT-1855 (144-998-190) - White Outdoor 50" Garden Tractor (1994) Three Point Hitch Parts Diagram

50" Garden Tractor

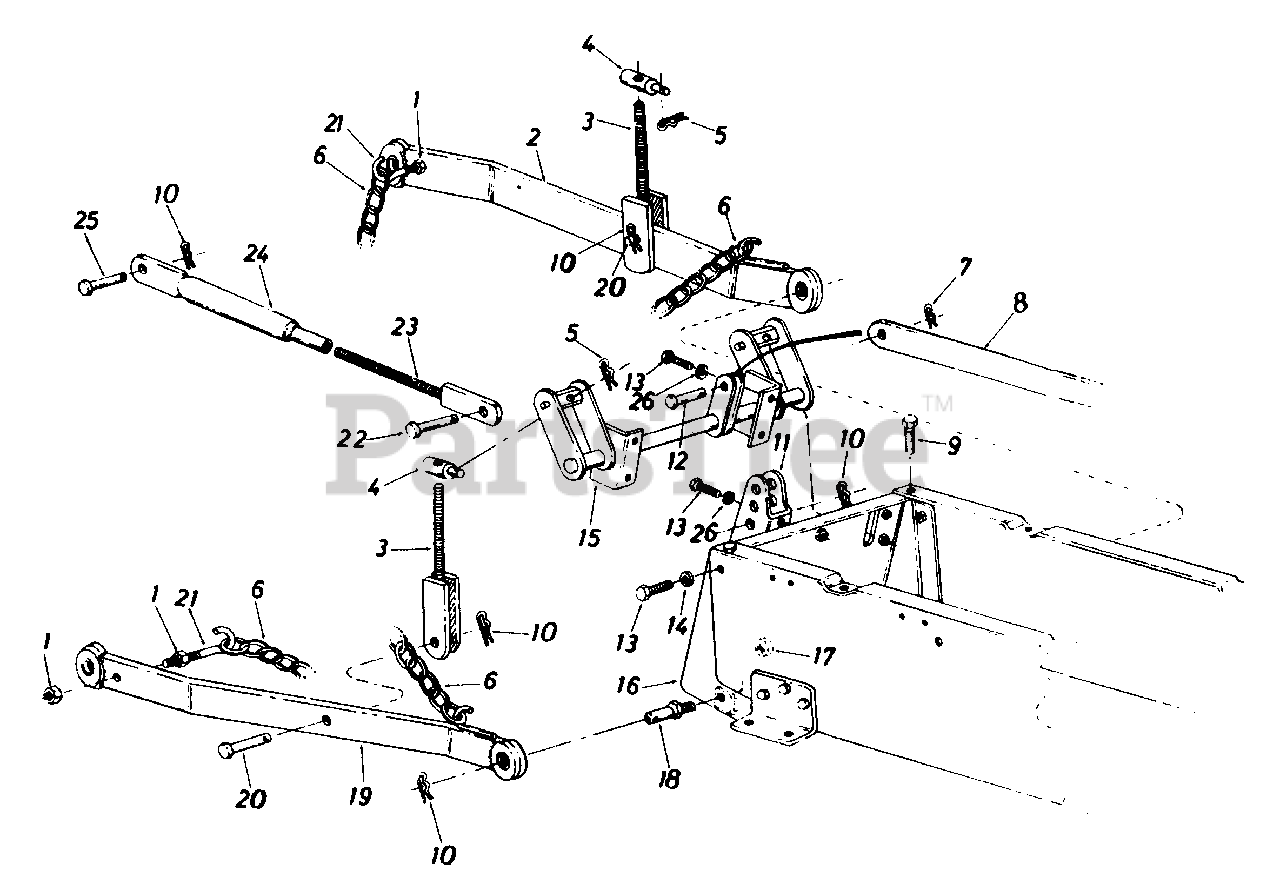

Three Point Hitch Parts Diagram

  • Title

1

White Outdoor 712-0290

Hex Cent. L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

2

White Outdoor 13130A

N Draft Bar Ass'y. - L.H.

Variations

White Outdoor 13130A-0637

No Longer Available BAR-DRAFT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 13138

Clevis Screw Ass'y.

$

$

Not available

4

White Outdoor 711-0649

Clevis Pin

$

$

Not available

5

White Outdoor 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 6

0

6

White Outdoor 713-0148

Chain - 20 Links

$

$

Not available

7

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 13709

Push Bar Ass'y.

Variations

White Outdoor 13709-0637

BAR ASSY-PUSH - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

10

White Outdoor 714-0117

Hairpin Cotter

$4.49

$

In Stock, Qty 16

0

11

White Outdoor 13026

Hitch Brkt.
(Superseded to 13026-0637)

Variations

White Outdoor 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

12

White Outdoor 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

13

White Outdoor 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

14

White Outdoor 736-0217

L-Wash. 3/8" Scr. - H.D.

$4.49

$

In Stock, Qty 8

0

15

White Outdoor 13135

Rear Lift Shaft Ass'y.
(Superseded to 13135-0637)

Variations

White Outdoor 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

White Outdoor 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

White Outdoor 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

18

White Outdoor 711-0497

Link Clevis Pin

$

$

Not available

19

White Outdoor 13129A

N Draft Bar Ass'y. - R.H.
(Superseded to 13129A-0637)

Variations

White Outdoor 13129A-0637

BAR-DRAFT-RH - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 711-0225

Clevis Pin .63" Dia. x 1.66" Lg.

$

$

Not available

21

White Outdoor 711-0639

Hitch Chain Hook

$10.99

$

Usually ships in 3-6 days

0

22

White Outdoor 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

23

White Outdoor 711-0636

Clevis Screw

$

$

Not available

24

White Outdoor 749-0238

Clevis Tubing
(Superseded to 749-0238-0637)

Variations

White Outdoor 749-0238-0637

TUBING - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

25

White Outdoor 711-0299

Clevis Pin .63" Dia. x 2.4" Lg.

$36.99

$

Usually ships in 3-6 days

0

26

White Outdoor 736-0217

L-Wash. 3/8" Scr. - H.D.

$4.49

$

In Stock, Qty 8

0
