GT-1855 (143-998-190) - White Outdoor 50" Garden Tractor (1993) Gas Tank & Hydrostatic Pump Parts Diagram

50" Garden Tractor

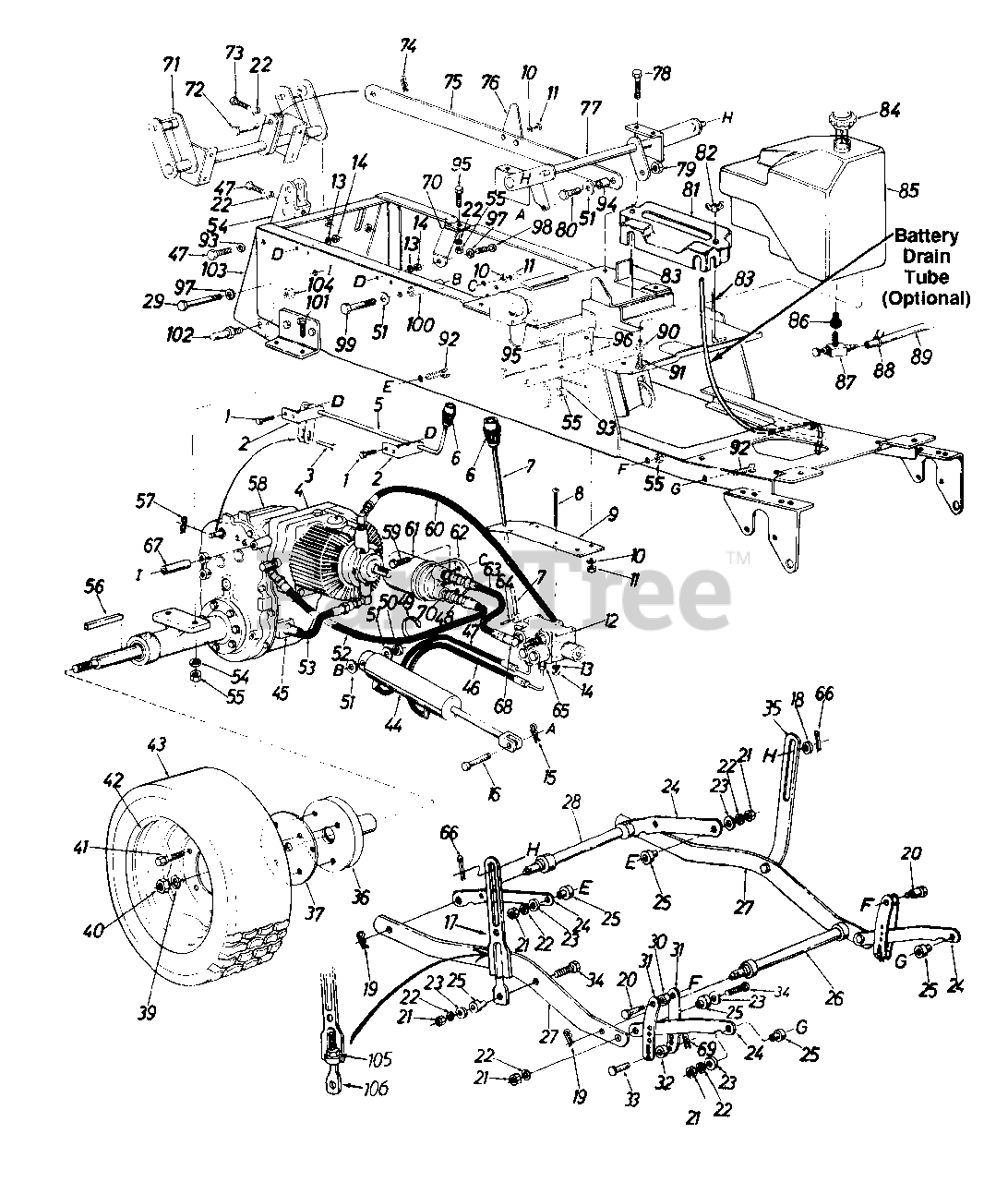

Gas Tank & Hydrostatic Pump Parts Diagram

  • Title

1

White Outdoor 710-0237

Hex Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

2

White Outdoor 13524

Hi-Lo Speed Control Brkt.

Variations

White Outdoor 13524-0637

BRACKET-HI LO SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 711-0684

Clevis Pin 1/4" Dia.

$

$

Not available

4

White Outdoor 717-0344

Hydrostatic Pump Comp.
(Superseded to 917-0344)

$

$

Not available

5

White Outdoor 13532

Hi-Lo Control Handle Ass'y.

$

$

Not available

6

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

7

White Outdoor 13531

Cylinder Control Handle Ass'y.

$

$

Not available

8

White Outdoor 710-0105

Truss Mach. Scr. 1/4-20 x 3.00" Lg.

$

$

Not available

9

White Outdoor 13534

Valve Base Plate

Variations

White Outdoor 13534-0648

No Longer Available PLATE-BASE-VALVE - TECH GRAY (0648)

$

$

Not available

$

$

10

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 727-0200

Valve Ass'y. Comp.
(Superseded to 927-0200)

$

$

Not available

13

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

White Outdoor 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

16

White Outdoor 711-0140

Clevis Pin 1/2" Dia.
(Superseded to 711-0308)

$

$

Not available

17

White Outdoor 683-0031

Adj. Deck Link

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

18

White Outdoor 736-0156

Fl-Wash. .62" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

19

White Outdoor 714-0147

Hairpin Cotter

$4.99

$

In Stock, Qty 6

0

20

White Outdoor 738-0148

Shld. Bolt .498" Dia. x .66"
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

21

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

22

White Outdoor 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 8

0

23

White Outdoor 736-0258

Fl-Wash. .38" I.D. x 1.00"

$4.49

$

In Stock, only 3 left!

0

24

White Outdoor 13151

Lift Arm
(Superseded to 13151-0637)

Variations

White Outdoor 13151-0637

ARM-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 750-0526

Spacer .385" I.D.

$4.99

$

In Stock, only 1 left!

0

26

13729

Cross Shaft Ass'y. - Front

$

$

Not available

27

White Outdoor 13139

Lift Arm Link

Variations

White Outdoor 13139-0637

LINK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13139-0648

LINK - TECH GRAY (0648)

$

$

Not available

White Outdoor 13139-0665

LINK - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

White Outdoor 13728

Cross Shaft Ass'y. - Rear

$

$

Not available

29

White Outdoor 710-0490

Hex Bolt 1/2-13 x 2.75"

$

$

Not available

30

White Outdoor 711-0146

Collar .50" I.D. x 1.0"

$

$

Not available

31

White Outdoor 13545

Index Brkt.

Variations

White Outdoor 13545-0637

BRACKET-INDEX - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 711-0242

Spacer .38" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 9

0

33

White Outdoor 711-0173

Clevis Pin 3/8" Dia.
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

34

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. - Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

35

White Outdoor 13570

Deck Link

Variations

White Outdoor 13570-0637

No Longer Available LINK-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 13572

Rear Wheel Hub Ass'y.

Variations

White Outdoor 13572-0637

No Longer Available HUB ASSY-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 13574

Hub Plate
(Superseded to 13574A-0637)

$

$

Not available

39

White Outdoor 736-0364

L-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

40

White Outdoor 712-0288

Hex Ins. L-Nut 3/4-16 Thd.
(Superseded to 912-0288)

$

$

Not available

41

White Outdoor 710-0470

Wheel Lug Bolt
(Superseded to 910-0470)

$

$

Not available

42

White Outdoor 734-0935

Rear Wheel Rim Only

Variations

White Outdoor 734-0935-0499

No Longer Available WHEEL ASSY W/O TIR - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-0935-0662

No Longer Available WHEEL ASSY W/O TIR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-0935-0674

No Longer Available WHEEL ASSY W/O TIR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

White Outdoor 734-0934

Rear Wheel Ass'y. Comp. 27 x 9.50

Variations

White Outdoor 734-0934-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-0934-0912

No Longer Available 911 Wheel Assy - Dico Gray (0912)

$

$

Not available

White Outdoor 734-0934-0941

No Longer Available WHL ASSY 27 X 9 50 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-0934-0942

No Longer Available WHEEL ASSY W/TIRE - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 734-0397

Tire Only 27 x 9.50

Variations

White Outdoor 734-0397-0901

No Longer Available - Carlisle (0901)

$

$

Not available

White Outdoor 734-0397-0902

No Longer Available TIRE-TUBELESS-27 X - Dico (0902)

$

$

Not available

$

$

734-0936

Air Valve

$

$

Not available

44

White Outdoor 727-0159

Hydraulic Cylinder

$

$

Not available

45

White Outdoor 727-0220

7/8-14 UNF-2A Thd. 5/8 Tube Fitting

$

$

Not available

46

White Outdoor 727-0219

Valve to Cylinder Hose - 20"

$

$

Not available

47

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg. - Grade 5

$4.49

$

In Stock, Qty 15

0

48

White Outdoor 727-0222

Bushing Reducer 1/2-14 NPTF to 3/8-18 NPTF

$

$

Not available

49

White Outdoor 726-0178

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

51

White Outdoor 736-0179

Fl-Wash. .50" I.D. x 1.25

$4.99

$

In Stock, only 2 left!

0

52

White Outdoor 727-0217

Filter Return Hose 24" Lg.

$

$

Not available

53

White Outdoor 749-0309

Pump Tube Ass'y.

$

$

Not available

54

White Outdoor 13026

Hitch Brkt.
(Superseded to 13026-0637)

Variations

White Outdoor 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

55

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

56

White Outdoor 714-0114

Sq. Key 1/4" x 1/4" x 2"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

57

White Outdoor 714-0104

Hairpin Cotter 1/4" Dia.

$4.49

$

In Stock, Qty 20+

0

58

Peerless Transaxle

Note: (See Breakdown)

$

$

Not available

59

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 727-0167

Pump to Valve Hose

$

$

Not available

61

White Outdoor 727-0162

Fram Filter Ass'y. PH-16

$

$

Not available

62

White Outdoor 727-0163

Filter Base

$

$

Not available

63

White Outdoor 727-0218

Valve to Filter Hose - 8.38"

$

$

Not available

64

White Outdoor 715-0129

Spring Pin Spiral 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

65

White Outdoor 727-0187

Flare Adapter

$

$

Not available

66

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

In Stock, only 2 left!

0

67

White Outdoor 750-0417

Spacer

$

$

Not available

68

White Outdoor 727-0175

Adapter 9/16-18 to 9/16-18

$

$

Not available

69

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

70

13530

Transmission Brace

$

$

Not available

71

White Outdoor 13135

Rear Lift Shaft Ass'y.
(Superseded to 13135-0637)

Variations

White Outdoor 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 711-0654

Clevis Pin

$16.99

$

Usually ships in 3-6 days

0

73

White Outdoor 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 13709

Push Bar Ass'y.

Variations

White Outdoor 13709-0637

BAR ASSY-PUSH - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 13535

Position Indicator

$

$

Not available

77

White Outdoor 13501

Lift Shaft Ass'y.

Variations

White Outdoor 13501-0637

No Longer Available SHAFT ASSY.-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

78

White Outdoor 710-0649

Hex Self-Tap Scr. 3/8-24 x .88" Lg.

$

$

Not available

79

White Outdoor 712-0239

Hex Cent. L-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

80

White Outdoor 710-0504

Hex Scr. 1/2-20 x 1.25" Lg.

$

$

Not available

81

White Outdoor 731-0707

Battery Cover

$

$

Not available

82

White Outdoor 712-0113

Wing Nut 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

83

White Outdoor 711-0222

Battery Hold Down Rods
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

84

White Outdoor 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 10

0

85

White Outdoor 751-0238

Gas Tank Ass'y.

$

$

Not available

86

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

87

White Outdoor 751-0171

Fuel Shut-Off Valve with Screen
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

88

White Outdoor 726-0205

Gas Line Clamp 1/2"

$3.99

$

In Stock, Qty 20+

0

89

White Outdoor 751-0535-26

Gas Line 26" Lg.
(Superseded to 751-10349-28)

$41.99

$

In Stock, only 1 left!

0

90

White Outdoor 736-0270

Bell-Wash.

$3.99

$

In Stock, Qty 20+

0

91

White Outdoor 710-0289

Hex Scr. 1/4-20 x .38" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

92

White Outdoor 710-0459

Hex Scr. 3/8-24 x 1.50" Lg."
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

93

White Outdoor 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

94

White Outdoor 750-0336

Push Bar Sleeve
(Superseded to 950-0336)

$

$

Not available

95

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. - Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

96

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 6

0

98

White Outdoor 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.

$

$

Not available

99

White Outdoor 710-0515

Hex Scr. 1/2-20 x 3 1/2" Lg. - Grade 5

$11.99

$

Usually ships in 3-6 days

0

100

White Outdoor 750-0443

Spacer for Cylinder

$

$

Not available

101

White Outdoor 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

102

White Outdoor 711-0497

Link Clevis Pin

$

$

Not available

103

White Outdoor 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

White Outdoor 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

White Outdoor 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

104

White Outdoor 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

105

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

106

White Outdoor 711-0817

Eye Bolt
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0
