GT-1855 (143-996-190) - White Outdoor 50" Garden Tractor (1993) Electrical System Parts Diagram

50" Garden Tractor

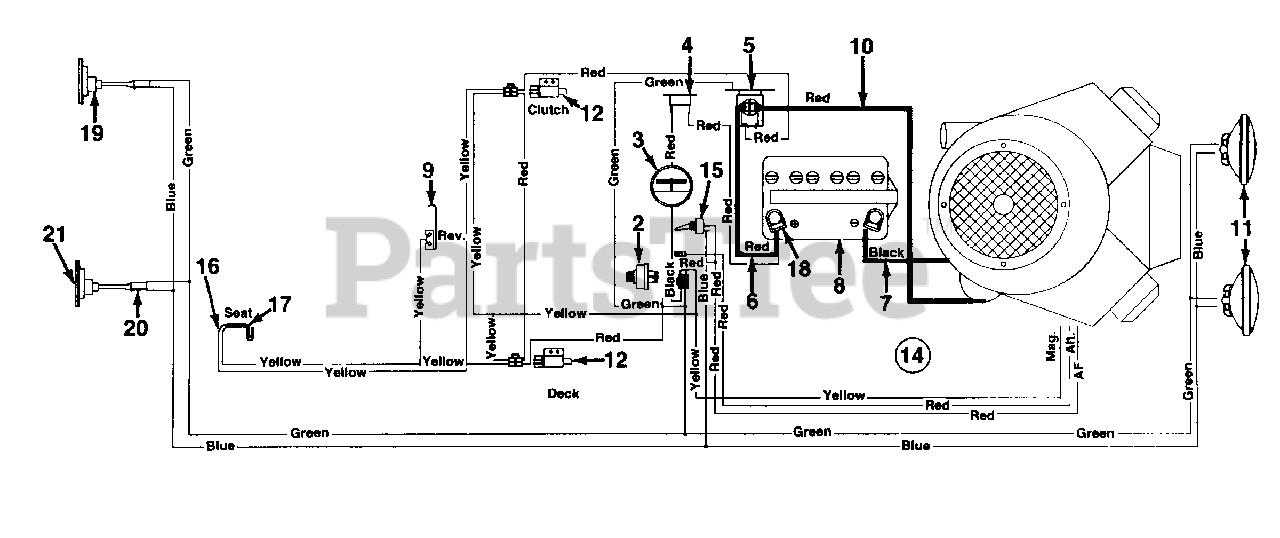

Electrical System Parts Diagram

  • Title
?1

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

Note: (Not shown)

$9.49

$

In Stock, only 1 left!

0

2

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

Note: For model 998 Only

$43.99

$

In Stock, Qty 5

0

3

White Outdoor 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

4

White Outdoor 725-0459

Circuit Breaker 8 Amp
(Superseded to 753-0685)

$

$

Not available

White Outdoor 725-1382

Circuit Breaker 20 Amp

Note: For model 998 Only

$

$

Not available

5

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

6

725-0558

Electric Wire

$

$

Not available

7

White Outdoor 725-0994

Electric Wire
(Superseded to 629-0739)

$

$

Not available

8

White Outdoor 725-0453B

Battery
(Superseded to 925-0453G)

Note: Code: N Notates a new part (not previously existing).

$

$

Not available

9

White Outdoor 725-1644

Spring Switch

Note: (Reverse Safety)

$9.99

$

In Stock, Qty 11

0

10

White Outdoor 725-0562

Electric Wire
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

11

White Outdoor 725-0222

Headlights
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

12

White Outdoor 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (PTO & Clutch)

$24.99

$

In Stock, Qty 8

0

14

629-0083

Wire Harness

$

$

Not available

629-0119

Wire Harness

Note: Code: N Notates a new part (not previously existing). For model 998 Only

$

$

Not available

15

White Outdoor 725-0646

Light Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

16

White Outdoor 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

17

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

18

White Outdoor 725-0662

Battery Boot
(Superseded to 725-3007A)

$

$

Not available

19

White Outdoor 725-0612

Taillight
(Superseded to 925-0612)

Note: For model 998 Only

$

$

Not available

20

White Outdoor 725-1380

Taillight Harness

Note: For model 998 Only

$

$

Not available

21

White Outdoor 725-3020

Taillight Bulb
(Superseded to 925-3020)

Note: For model 998 Only

$

$

Not available
