GT-1855 (142-996-190) - White Outdoor 50" Garden Tractor (1992) M11 Hydrostatic Transmission Parts Diagram

50" Garden Tractor

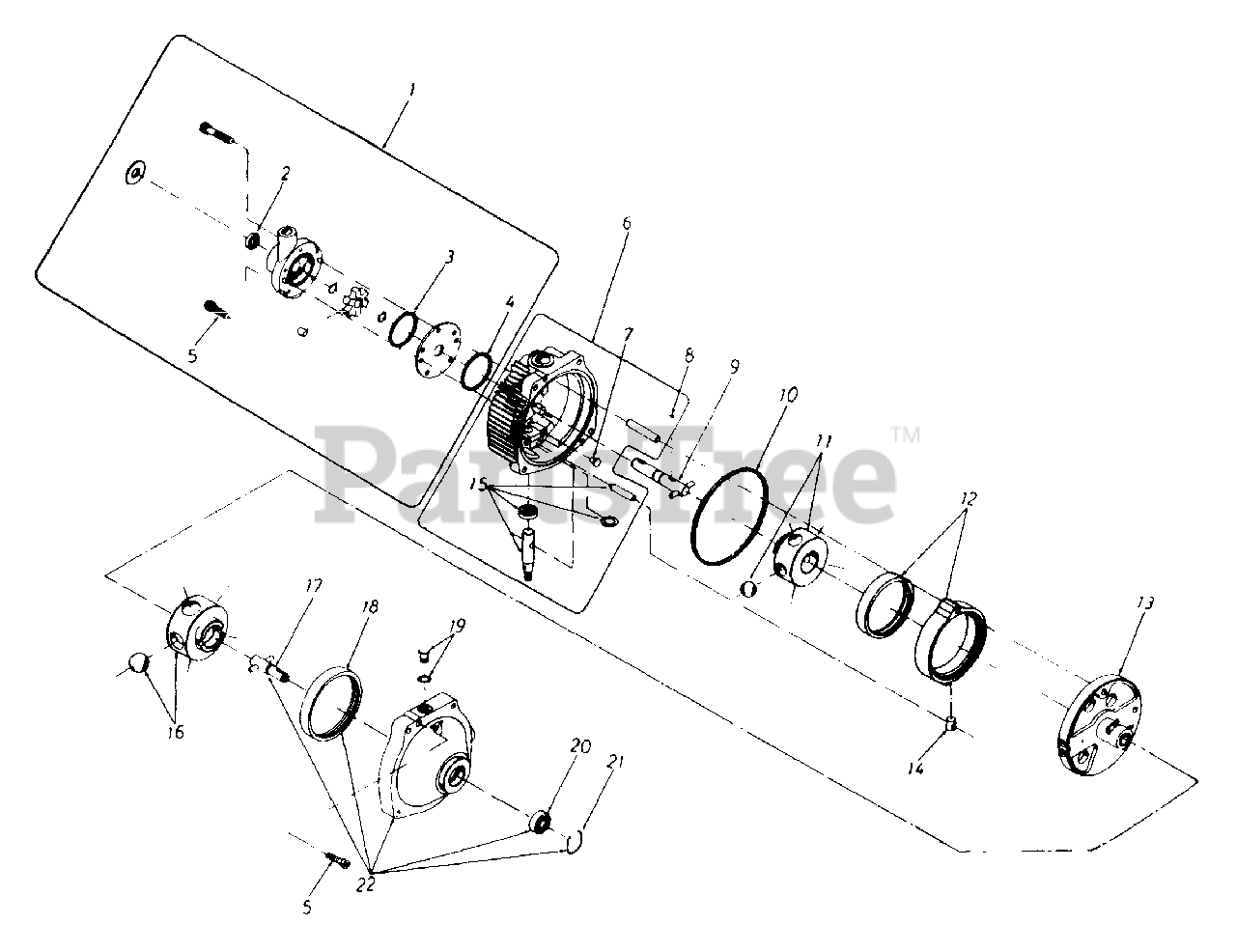

M11 Hydrostatic Transmission Parts Diagram

  • Title

White Outdoor 717-0344

M11 Hydrostatic Transmission
(Superseded to 917-0344)

Note: (ET-001100-006)

$

$

Not available

1

White Outdoor ET-990045-000

Charge Pump Kit

$

$

Not available

2

White Outdoor ET-092999-000

Oil Seal
(Superseded to ET-092999-000P)

$

$

Not available

3

White Outdoor ET-008771-036

Square Cut Seal Ring .036

$

$

Not available

4

White Outdoor ET-008771-038

Square Cut Seal Ring .038

$

$

Not available

5

ET-095912-125

Socket Head Cap Screw 5/16-18 x 1.25" Long

$

$

Not available

6

White Outdoor ET-990114-000

Cover Subassembly

$

$

Not available

7

ET-101597-000

Button

$

$

Not available

8

ET-090880-000

Drive Pin

$

$

Not available

9

White Outdoor ET-024129-000

Input Shaft Subassembly

$

$

Not available

10

White Outdoor ET-008771-166

Square Cut Seal Ring .166

$17.99

$

Usually ships in 3-6 days

0

11

ET-101470-000

Pump Rotor - Ball Subassembly

$

$

Not available

12

ET-101904-000

Cam Ring Subassembly

$

$

Not available

13

White Outdoor ET-101571-000

Pintle Subassembly

$

$

Not available

14

White Outdoor ET-097841-000

Cam Ring Insert

$

$

Not available

15

ET-990136-000

Control Shaft Kit

$

$

Not available

16

ET-101853-000

Motor Rotor - Ball Subassembly

$

$

Not available

17

ET-024608-000

Output Shaft Subassembly

$

$

Not available

18

White Outdoor ET-040525-000

Motor Race

$

$

Not available

19

White Outdoor ET-025090-006

"O"-Ring Plug Subassembly

$

$

Not available

20

ET-097879-000

Ball Bearing (Output)

$

$

Not available

21

ET-091231-000

Retaining Ring

$

$

Not available

22

ET-102583-000

Body Subassembly

$

$

Not available
