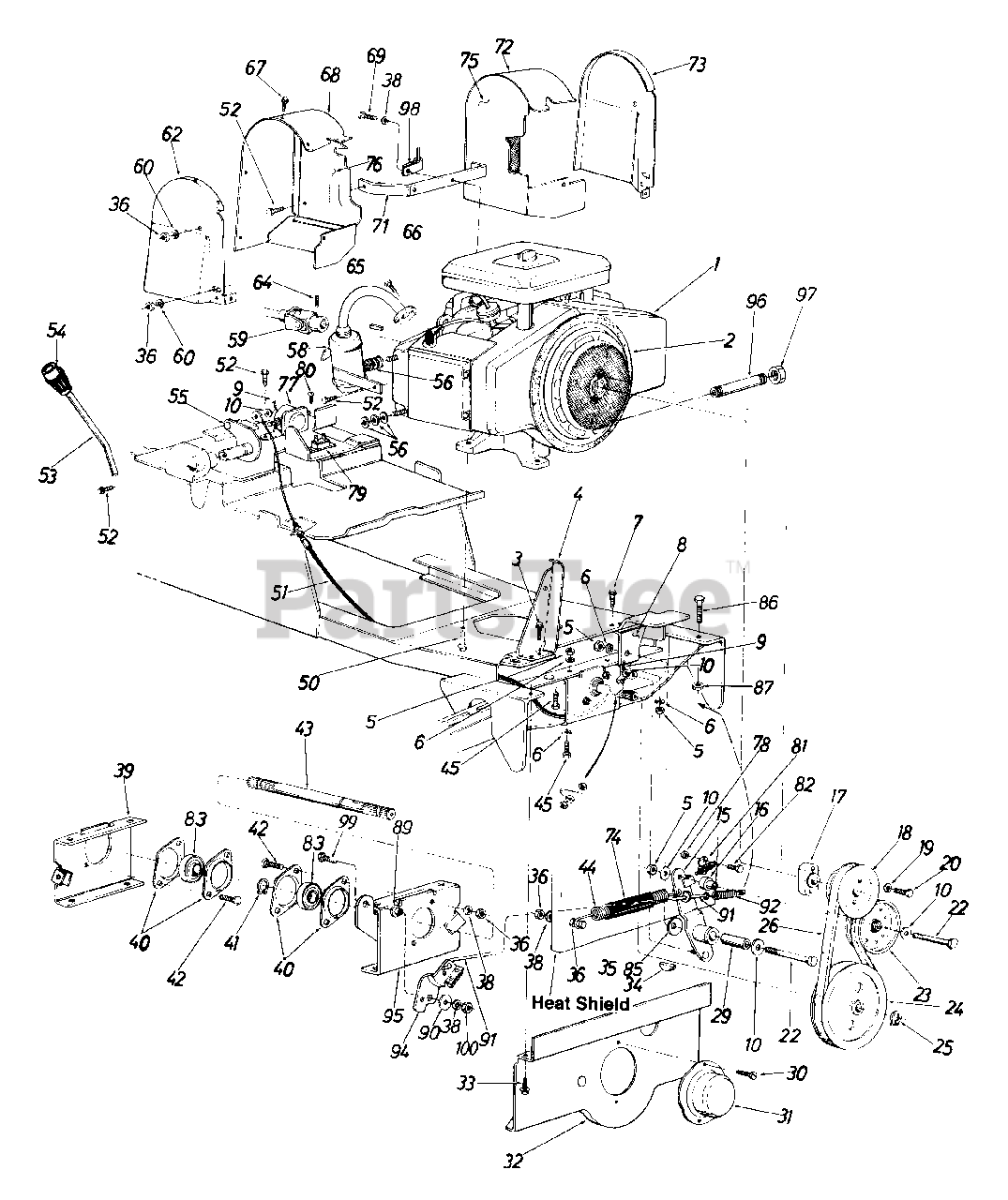

GT-1855 (142-996-190) - White Outdoor 50" Garden Tractor (1992) Engine and PTO Ass'y Parts Diagram

50" Garden Tractor

Engine and PTO Ass'y Parts Diagram

  • Title

1

Engine

$

$

Not available

2

722-0148

Mylar Foam Strip

$

$

Not available

3

White Outdoor 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 13590

Belt Guard

Variations

White Outdoor 13590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

6

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 13554

PTO Support Brkt.

Variations

White Outdoor 13554-0637

No Longer Available BRACKET-PTO SUP - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

10

White Outdoor 736-0133

Fl-Wash. .38" I.D. x 1.25" O.D. x .100" Thk.

$5.49

$

In Stock, Qty 7

0

15

White Outdoor 13550

PTO Idler Ass'y.

Variations

White Outdoor 13550-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 711-0598

Idler Adapter

$

$

Not available

17

White Outdoor 748-0271

Pulley Spacer

$

$

Not available

18

White Outdoor 756-0312

1/2" V-Pulley 4.75" O.D. (Engine)

$

$

Not available

19

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

20

White Outdoor 710-0427

Hex Scr. 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

23

White Outdoor 711-0306

Flat Idler Pulley

$115.99

$

Usually ships in 3-6 days

0

24

White Outdoor 756-0309

1/2" V-Pulley 7.00" O.D. (PTO)

$

$

Not available

25

White Outdoor 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

26

White Outdoor 754-0234

"V"-Belt 1/2" x 41" Lg. (PTO)
(Superseded to 954-0234)

$52.99

$

Usually ships in 3-6 days

0

29

White Outdoor 750-0374

Spacer .375" I.D. x .62" O.D. x 1.830" Lg.

$

$

Not available

30

White Outdoor 710-0224

Hex "B" Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 18

0

31

White Outdoor 13546

PTO Cup

Variations

White Outdoor 13546-0637

CUP-PTO - POWDER BLACK (0637)

$

$

Not available

White Outdoor 13546-0648

CUP-PTO - TECH GRAY (0648)

$

$

Not available

$

$

32

White Outdoor 13542

PTO Belt Guard Ass'y.

Variations

White Outdoor 13542-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 710-0601

Hex Wash. Self-Tap Scr. 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 714-0154

#91 Hi-Pro Key

$

$

Not available

35

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

36

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

UNKNOWN

$

$

Not available

40

White Outdoor 741-0242

1.00" Dia. Brg. w/Flangette

$11.99

$

In Stock, only 4 left!

0

41

White Outdoor 716-0127

Snap Ring

$12.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 738-0395

Spline Shaft

$225.99

$

Usually ships in 3-6 days

0

44

White Outdoor 732-0262

Extension Spring (PTO Clutch)
(Superseded to 932-0262)

$

$

Not available

45

White Outdoor 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

51

White Outdoor 746-0341

PTO Control Cable
(Superseded to 946-0341)

$106.99

$

In Stock, only 1 left!

0

52

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 747-0211

PTO Handle

$

$

Not available

54

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

55

White Outdoor 13587

PTO Actuator Lever Ass'y.

$

$

Not available

56

White Outdoor 736-0288

Fl-Wash. .312" I.D. x 1.620" O.D. x .060

$

$

Not available

58

White Outdoor 751-0242

Muffler Ass'y. Comp. - R.H.

$

$

Not available

59

White Outdoor 717-0402

Universal Joint Ass'y. Comp.

$

$

Not available

60

White Outdoor 736-0264

Fl-Wash. .312" I.D. x .630" O.D.

$6.99

$

In Stock, only 2 left!

0

62

13722

Shroud Outer - R.H.

$

$

Not available

64

White Outdoor 710-0666

Sq. Hd. Set Scr. 5/16-18 x .38" Lg. (Cup Point)

$

$

Not available

65

White Outdoor 714-0114

Sq. Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

66

White Outdoor 710-0751

Hex Wash. Hd. Scr. 1/4-20 x 5/8" Lg. - Grade 5

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 710-0224

Hex "AB" Tap Scr. #10 x .50" Lg
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 18

0

68

White Outdoor 13720

Shroud Cover - R.H.

$

$

Not available

69

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

71

White Outdoor 13723

Shroud Support Brkt.

$

$

Not available

72

White Outdoor 13719

Shroud Cover - L.H.

$

$

Not available

73

13721

Shroud Outer - L.H.

$

$

Not available

74

White Outdoor 731-0466

Spring Cover Tubing (PTO Clutch)

$

$

Not available

75

White Outdoor 13714A

Shroud Inner Ass'y. - L.H.

Note: Code: N notates a new part (not previously existing)

$

$

Not available

76

White Outdoor 13717A

Shroud Inner Ass'y. - R.H.

Note: Code: N notates a new part (not previously existing)

$

$

Not available

77

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

78

White Outdoor 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

79

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

80

White Outdoor 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

81

White Outdoor 725-3169A

Safety Switch (PTO)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

82

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

83

White Outdoor 741-0303

Ball Bearing

$114.99

$

In Stock, only 2 left!

0

?84

751-0241

Muffler Ass'y. Comp. - L.H.

Note: (Not shown)

$

$

Not available

85

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

86

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.'

$5.99

$

In Stock, Qty 11

0

87

White Outdoor 712-3000

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 9

0

?88

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

89

White Outdoor 736-0289

Shoulder Spacer
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

90

White Outdoor 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, only 4 left!

0

91

White Outdoor 747-0874

PTO Brake Rod

Note: Code: N notates a new part (not previously existing)

$

$

Not available

92

White Outdoor 732-0339

Extension Spring 2.15" Lg.
(Superseded to 932-0339)

$

$

Not available

?93

White Outdoor 13550

PTO Idler Arm Ass'y.

Variations

White Outdoor 13550-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

94

White Outdoor 17116

Brake Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

95

White Outdoor 683-0013

PTO Brg. Retainer Brkt. Ass'y.

Note: Code: N notates a new part (not previously existing)

$

$

Not available

96

White Outdoor 737-0164

Pipe Nipple 3/8" x 5" Lg.
(Superseded to 937-0164)

$

$

Not available

97

White Outdoor 737-0143

Oil Drain Cap

$

$

Not available

98

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

99

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

100

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0
