GT-185 (147U836H190) - White Outdoor 46" Garden Tractor (1997) Seat Plate, Hitch Plate, Rear Wheel Ass'y And Lift Pivot Brkt Ass'y Parts Diagram

46" Garden Tractor

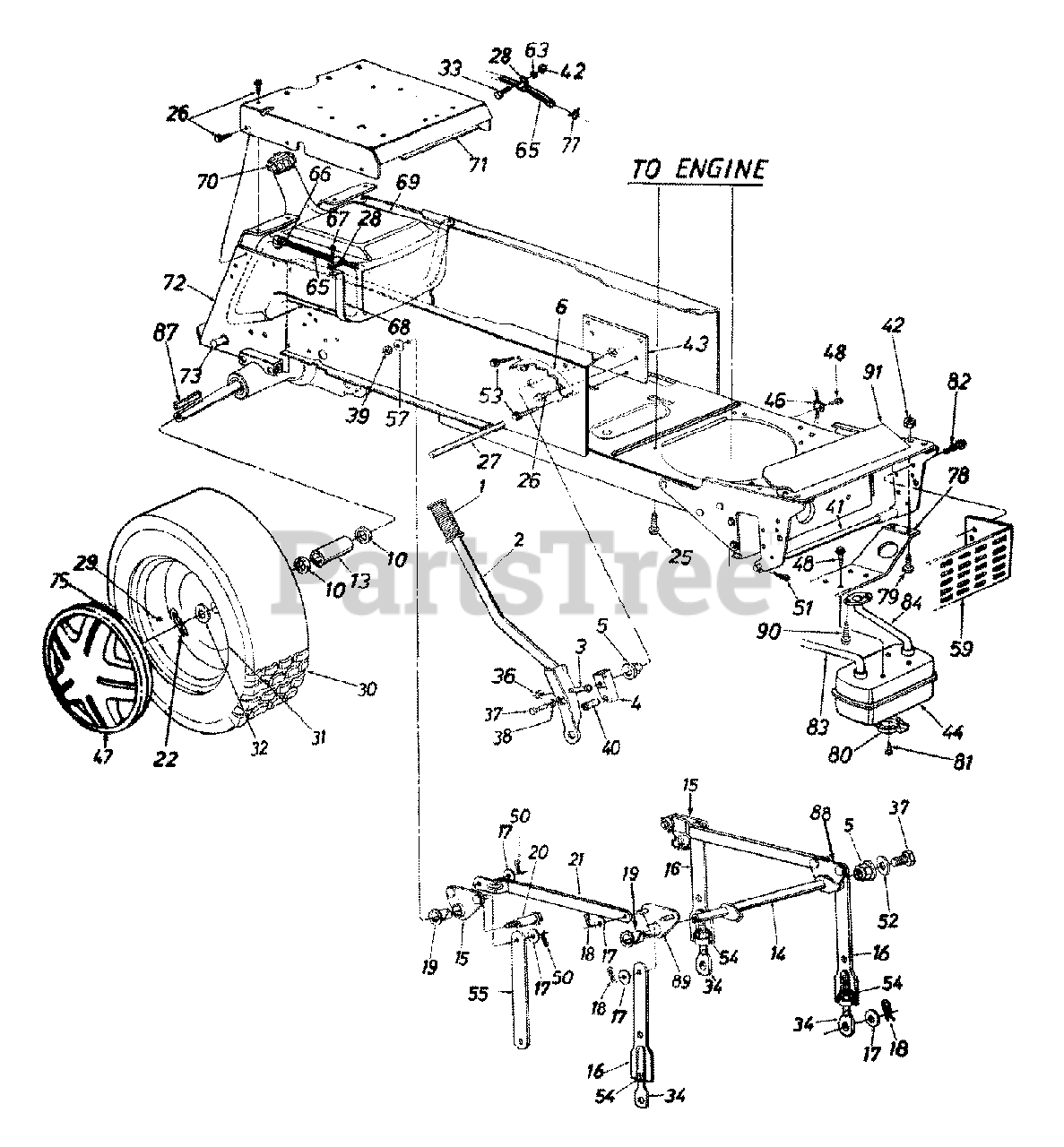

Seat Plate, Hitch Plate, Rear Wheel Ass'y And Lift Pivot Brkt Ass'y Parts Diagram

  • Title

1

White Outdoor 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 17282

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 748-0274A

Lift Shaft Drive

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

?7

White Outdoor 737-0286

Oil Drain Pipe

Note: (Not shown)

$

$

Not available

?8

White Outdoor 751-0572

Oil Drain Plug

Note: (Not shown)

$

$

Not available

10

White Outdoor 736-0163

Fl-Wash. 1.03" I.D. x 1.62" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 750-0762

Spacer 1" I.D. x 1.25" O.D.

$

$

Not available

14

White Outdoor 983-0101

Lift Shaft Ass'y.

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

White Outdoor 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

White Outdoor 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 1 left!

0

19

White Outdoor 741-0591

Flanged Brg. 5/8" I.D.

$4.49

$

In Stock, Qty 9

0

20

White Outdoor 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 714-0142

Cotter Pin 3/16" Dia. x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

28

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 734-1005

Rear Wheel Ass'y. Comp.

Note: For model 147U836H190 Only.

Variations

White Outdoor 734-1005-0911

No Longer Available WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1005-0912

No Longer Available WHEEL ASSY W - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1005-0931

No Longer Available WHEEL ASSY W - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1005-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1005-0942

No Longer Available WHEEL ASSY W/TIRE - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 634-0086

Rear Wheel Ass'y. Comp.

Note: For model 147Z836P190 Only.

Variations

White Outdoor 634-0086-0911

No Longer Available WHL ASSY 23 X 9 50 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0086-0912

No Longer Available WHEEL ASSY W - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0086-0931

No Longer Available WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0086-0941

No Longer Available WHL ASSY 23 X 9 50 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0086-0981

No Longer Available - Carlisle Green (0981)

$

$

Not available

$

$

White Outdoor 734-0322

Tire Only

Note: For model 147U836H190 Only.

Variations

White Outdoor 734-0322-0901

No Longer Available TIRE-TUBELESS-23 X - Carlisle (0901)

$

$

Not available

White Outdoor 734-0322-0902

No Longer Available TIRE-TUBELESS-23 X - Dico (0902)

$

$

Not available

$

$

White Outdoor 734-1728

Tire Only

Note: For model 147Z836P190 Only.

Variations

White Outdoor 734-1728-0901

TIRE-SQUARE TREAD - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1728-0904

TIRE-SQUARE TREAD - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

31

White Outdoor 734-1015

Rear Wheel Rim Only

Variations

White Outdoor 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

White Outdoor 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

33

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 14

0

38

UNKNOWN

$

$

Not available

39

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 15

0

46

White Outdoor 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

White Outdoor 734-1785A

Hub Cap

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

48

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

White Outdoor 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

White Outdoor 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0607

Hex Wash. Hd. AB-Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 9

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 14399

Deck Link
(Superseded to 14399-0637)

Variations

White Outdoor 14399-0637

LINK-DECK - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 783-0023A

Heat Shield
(Superseded to 783-0023A-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

63

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

65

White Outdoor 751-0535-46

Fuel Line 46" Lg.
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

66

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 17424

Fuel Tank Strap

$

$

Not available

69

White Outdoor 751-0566

Gas Tank

$

$

Not available

70

White Outdoor 751-0531B

Gas Gauge

$83.99

$

In Stock, only 4 left!

0

71

White Outdoor 683-0108A

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

72

White Outdoor 17344A

Hitch Plate

Variations

White Outdoor 17344A-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

75

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

77

White Outdoor 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0

78

White Outdoor 17958

Muffler Mounting Brkt.

$

$

Not available

79

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

81

White Outdoor 710-0148

Hex Wash. Hd. F-Tap Scr. #8 x .32" Lg.

$4.49

$

In Stock, Qty 16

0

82

White Outdoor 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16"-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 751-0558

Exhaust Tube - R.H.

$

$

Not available

84

White Outdoor 751-0559A

Exhaust Tube - L.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

87

White Outdoor 714-0120

Sq. Key 1/4" x 3" Lg.

$

$

Not available

88

White Outdoor 683-0097

Lift Pivot Brkt. - L.H.

$

$

Not available

89

White Outdoor 683-0098

Lift Pivot Brkt. - R.H.

$

$

Not available

90

White Outdoor 710-3292

Socket Scr. M8 x 1.25" x 20MM Lg.

$6.99

$

Usually ships in 3-6 days

0

91

White Outdoor 783-0394

Heat Shield

Note: Code: N Notates a new part (not previously existing)

$

$

Not available
