GT-185 (146U836H190) - White Outdoor 46" Garden Tractor (1996) Steering Assembly Parts Diagram

46" Garden Tractor

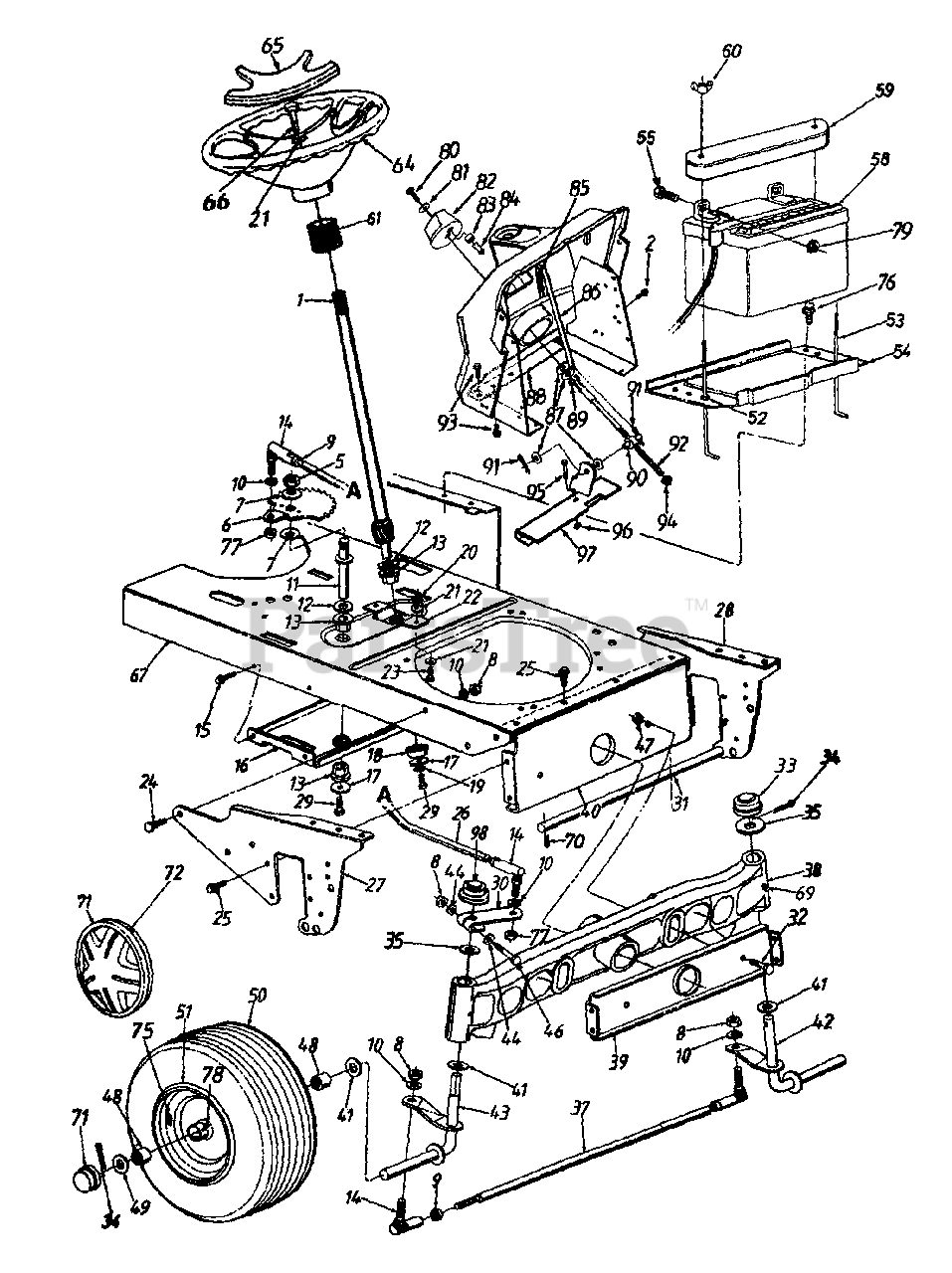

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 738-0939

Steering Shaft Ass'y.

$

$

Not available

2

UNKNOWN

$

$

Not available

5

White Outdoor 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 4 left!

0

6

White Outdoor 717-0943B

Steering Gear Segment
(Superseded to 717-0943C)

$89.99

$

In Stock, only 4 left!

0

7

White Outdoor 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

9

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 738-0768

Steering Gear Segment Shaft

$

$

Not available

12

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 748-0227A

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

14

White Outdoor 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 16888A

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

Variations

White Outdoor 16888A-0637

Idler Support Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

18

White Outdoor 750-0532

Spacer .985" I.D. x 1.25" O.D.
(Superseded to 950-0532)

$

$

Not available

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16894

Bearing Retainer Brkt.

Variations

White Outdoor 16894-0637

BRACKET-BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

24

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

25

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 747-0899

Steering Drag Link
(Superseded to 753-0674)

$

$

Not available

27

White Outdoor 783-0338

Pivot Bar Side Plate - R.H.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0338-0483

BRACKET-PIVOT SUP - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0338-0637

BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0338-0665

BRACKET-PIVOT SUP - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0338-0638

No Longer Available BRACKET-PIVOT SUP - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0338-0648

No Longer Available BRACKET-PIVOT SUP - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0338-0662

No Longer Available BRACKET-PIVOT SUP - OYSTER GRAY (0662)

$

$

Not available

$

$

28

White Outdoor 783-0337

Pivot Bar Side Plate - L.H.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0337-0483

BRACKET-PIVOT SUP - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0337-0629

BRACKET-PIVOT SUP - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0337-0637

BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0337-0638

No Longer Available BRACKET-PIVOT SUP - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0337-0648

No Longer Available BRACKET-PIVOT SUP - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0337-0662

BRACKET-PIVOT SUP - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0337-0665

BRACKET-PIVOT SUP - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

30

White Outdoor 683-0061A

Steering Arm Ass'y.
(Superseded to 983-0061A-0637)

$40.99

$

In Stock, only 1 left!

0

31

White Outdoor 738-0777A

Deck Connecting Rod

Note: Code: N notates a new part (not previously existing).

$37.99

$

Usually ships in 3-6 days

0

32

White Outdoor 738-0527

Shld. Bolt .498" Dia. x 2.45" Lg.

$8.49

$

In Stock, Qty 6

0

33

White Outdoor 731-0484A

Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

34

White Outdoor 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)

$

$

Not available

35

White Outdoor 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 747-0753

Tie Rod 20.25" Lg.

$34.99

$

In Stock, only 1 left!

0

38

White Outdoor 719-0343

Pivot Bar Ass'y.
(Superseded to 719-0343B)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

39

White Outdoor 16889A

Pivot Bar Support Brkt. - Front
(Superseded to 16889A-0637)

Variations

White Outdoor 16889A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 16890A

Pivot Bar Support Brkt. - Rear
(Superseded to 16890A-0637)

Variations

White Outdoor 16890A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 638-0007

Front Axle Ass'y. - L.H.
(Superseded to 938-0007A)

$

$

Not available

43

White Outdoor 638-0008

Front Axle Ass'y. - R.H.
(Superseded to 938-0008A)

$202.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

46

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

47

White Outdoor 712-0431

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 741-3032

Ball Brg. .75" I.D.
(Superseded to 941-3032)

$47.99

$

In Stock, only 2 left!

0

49

White Outdoor 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 734-1722

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1722-0911

WHL ASSY 16 X 6:50 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1722-0941

No Longer Available WHL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

White Outdoor 734-0275

Tire Only

Variations

White Outdoor 734-0275-0901

TIRE 16 X 6.5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0275-0905

TIRE 16 X 6.5 - Duro (0905)

$

$

Not available

White Outdoor 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

51

White Outdoor 634-0071

Rim Only

Variations

White Outdoor 634-0071-0674

WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 634-0071-0499

WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0071-0629

WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0071-0662

WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

$

$

52

White Outdoor 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

53

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

54

White Outdoor 783-0346

Battery Plate

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 783-0346-0637

BRACKET-MT BATTERY - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0346-0638

BRACKET-MT BATTERY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0346-0648

BRACKET-MT BATTERY - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0346-0662

BRACKET-MT BATTERY - OYSTER GRAY (0662)

$

$

Not available

$

$

55

White Outdoor 710-3015

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 725-1707

Battery (275 Cold Crank Amps)
(Superseded to 925-1707D)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

59

White Outdoor 731-1683

Battery Cover

Note: Code: N notates a new part (not previously existing).

$

$

Not available

60

White Outdoor 712-3087

Wing Nut Plastic 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

64

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

65

White Outdoor 731-1509

Steering Wheel Insert
(Superseded to 731-1509A)

$

$

Not available

66

White Outdoor 710-0643

Hex L-Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

67

White Outdoor 17359B

Lower Frame

Variations

White Outdoor 17359B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

69

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

71

White Outdoor 734-1784

Hub Cap

$

$

Not available

72

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

75

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4" x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 712-0446

Hex Jam L-Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

78

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

79

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 720-0236

Plastic Knob 3" Dia.
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

83

White Outdoor 750-0526

Spacer.38" I.D. x .5" O.D.

$4.99

$

In Stock, only 1 left!

0

84

White Outdoor 732-0675

Ball Plunger

$

$

Not available

85

White Outdoor 732-0748

Ext. Spring 4.62" Lg.
(Superseded to 932-0748)

$

$

Not available

86

White Outdoor 727-0469

Indicator Strip Ass'y.

$

$

Not available

87

White Outdoor 736-0267

Fl-Wash. 3/8" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 783-0272

Dash Support

Variations

White Outdoor 783-0272-0691

No Longer Available SUPPORT-DASH - BLACK JACK (0691)

$

$

Not available

$

$

89

White Outdoor 716-0125

"E"-Ring
(Superseded to 916-0125)

$

$

Not available

90

White Outdoor 711-1002

Adjustment Ferrule

$

$

Not available

91

White Outdoor 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

92

White Outdoor 747-0629

Height Adjustment Rod

$

$

Not available

93

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

94

White Outdoor 712-0449

Hex L-Nut 3/8-8 Twin Thd.

$

$

Not available

95

White Outdoor 710-0606

Hex Bolt 1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 10

0

96

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

97

White Outdoor 683-0096

"U" Channel Ass'y.
(Superseded to 683-0096-0637)

Variations

White Outdoor 683-0096-0637

CHAIN ASSY-U - POWDER BLACK (0637)

$

$

Not available

$

$

98

White Outdoor 726-0341

Cap

$4.99

$

In Stock, Qty 20+

0

White Outdoor 777-1822

Plastic Logo on Side Panel

$

$

Not available

777-0186

Plastic Logo - Grille

$

$

Not available

777-3733

GT-185 Hood Side Labels

$

$

Not available

White Outdoor 777-3734

GT-205 Hood Side Labels

$

$

Not available

White Outdoor 777-1990

Dash Label

$

$

Not available

777-3843

White Label - Fender

$

$

Not available
