GT-185 (143U836H190) - White Outdoor 46" Garden Tractor (1993) Steering And Battery Assembly Parts Diagram

46" Garden Tractor

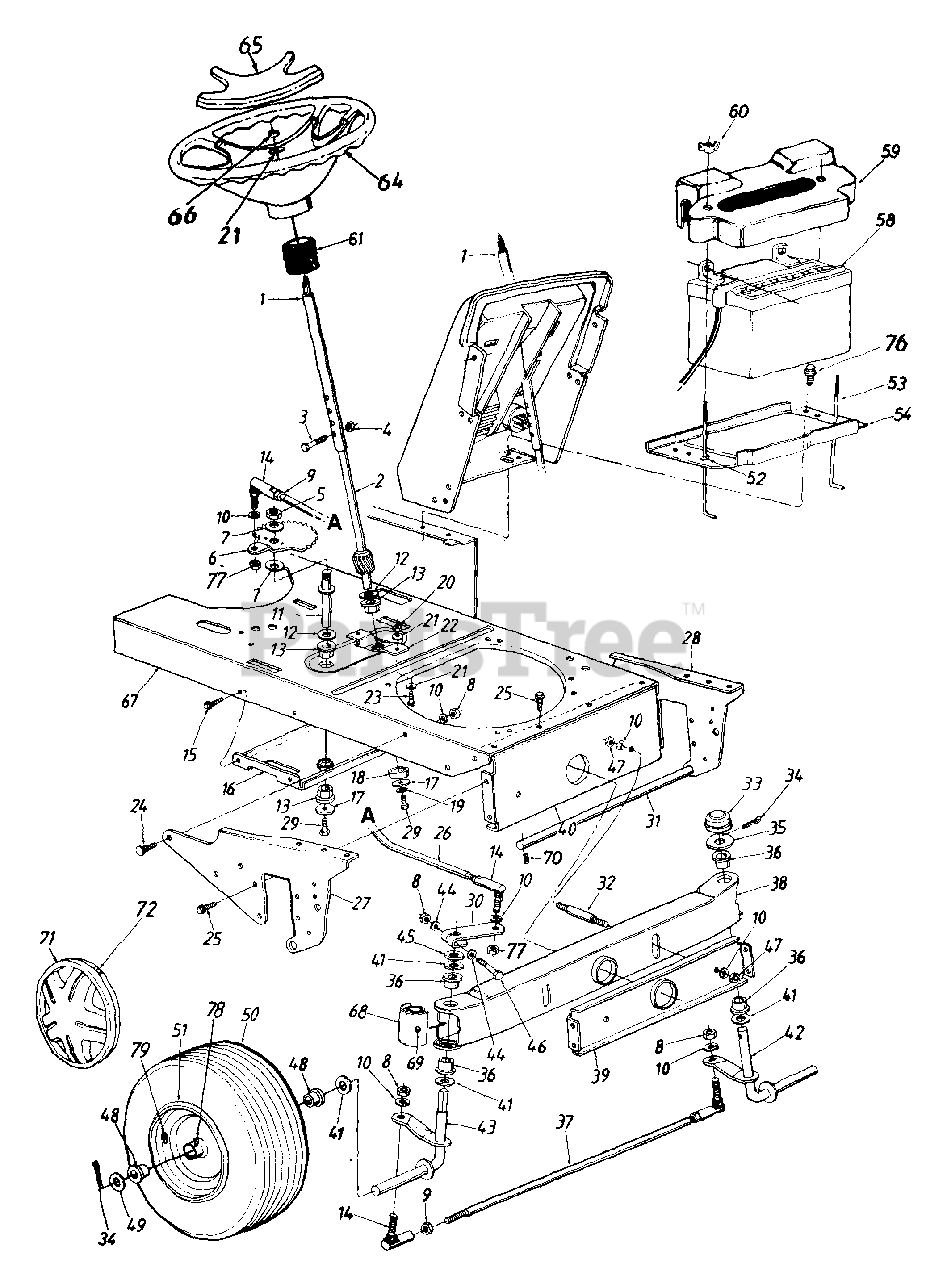

Steering And Battery Assembly Parts Diagram

  • Title

1

White Outdoor 16512

Steering Column Ass'y.

$

$

Not available

2

White Outdoor 738-0763

Lower Steering Shaft
(Superseded to 938-0763)

$83.99

$

In Stock, Qty 8

0

3

White Outdoor 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

4

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

White Outdoor 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 4 left!

0

6

White Outdoor 717-0943A

Steering Gear Segment
(Superseded to 717-0943C)

$89.99

$

In Stock, only 4 left!

0

7

White Outdoor 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

9

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 738-0768

Steering Gear Segment Shaft

$

$

Not available

12

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 748-0227A

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

14

White Outdoor 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

18

White Outdoor 750-0532

Spacer .985" I.D. x 1.25" O.D.
(Superseded to 950-0532)

$

$

Not available

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16894

Bearing Retainer Brkt.

Variations

White Outdoor 16894-0637

BRACKET-BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

24

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

25

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 747-0579

Steering Drag Link
(Superseded to 753-0674)

$

$

Not available

27

White Outdoor 16896

Pivot Bar Side Plate - R.H.

$

$

Not available

28

White Outdoor 16897

Pivot Bar Side Plate - L.H.

$

$

Not available

29

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

30

White Outdoor 16918

Steering Arm
(Superseded to 983-0061A-0637)

$40.99

$

In Stock, only 1 left!

0

31

White Outdoor 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

32

White Outdoor 738-0775

Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg.

$24.99

$

Usually ships in 3-6 days

0

33

White Outdoor 731-0484A

Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

34

White Outdoor 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)

$

$

Not available

35

White Outdoor 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 741-0523

Flange Brg. .757" I.D.

$10.99

$

Usually ships in 3-6 days

0

37

White Outdoor 747-0721

Tie Rod 20.25" Lg.

$

$

Not available

38

White Outdoor 16843

Pivot Bar Assy.
(Superseded to 96843-0637)

$130.99

$

Usually ships in 3-6 days

0

39

White Outdoor 16889

Pivot Bar Support Brkt. - Front
(Superseded to 16889A-0637)

Variations

White Outdoor 16889-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 16890

Pivot Bar Support Brkt. - Rear
(Superseded to 16890A-0637)

Variations

White Outdoor 16890-0637

Pivot Support Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 16915

Front Axle Ass'y. - L.H.
(Superseded to 96915)

$

$

Not available

43

White Outdoor 16914

Front Axle Ass'y. - R.H.
(Superseded to 938-0008A)

$202.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

45

White Outdoor 748-0160

Spacer .755" I.D. x 1.25" O.D.
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

46

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

47

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

48

White Outdoor 741-3032

Ball Brg. .75" I.D.
(Superseded to 941-3032)

$47.99

$

In Stock, only 2 left!

0

49

White Outdoor 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 734-1722

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1722-0911

WHL ASSY 16 X 6:50 - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-1722-0941

No Longer Available WHL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

White Outdoor 734-0275

Tire Only

Variations

White Outdoor 734-0275-0901

TIRE 16 X 6.5 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0275-0905

TIRE 16 X 6.5 - Duro (0905)

$

$

Not available

White Outdoor 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

51

White Outdoor 734-1688

Rim Only
(Superseded to 934-0071-0662)

$

$

Not available

52

White Outdoor 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

53

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

54

White Outdoor 17635

Battery Plate
(Superseded to 783-0346A-0637)

$

$

Not available

58

White Outdoor 725-1635

Battery
(Superseded to 753-0608)

Note: (275 Cold Crank Amps)

$

$

Not available

59

White Outdoor 731-1132

Battery Cover

$15.99

$

In Stock, only 3 left!

0

60

White Outdoor 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

61

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

64

White Outdoor 631-0005

Steering Wheel
(Superseded to 931-0005)

$

$

Not available

65

White Outdoor 731-1344

Steering Wheel Insert

$

$

Not available

66

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

67

White Outdoor 17359B

Lower Frame

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17359B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 731-1049

Pivot Bar End Cap

$

$

Not available

69

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

70

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

71

White Outdoor 734-1784

Hub Cap

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

72

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

76

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

77

White Outdoor 712-0446

Hex Jam L-Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

78

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

79

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 777-6549

Plastic Logo on Hood Side Labels

$

$

Not available

777-0186

Plastic Logo - Grille

$

$

Not available

777-0171A

GT-185 Side Panel Labels

$

$

Not available

777-8214

White Label - Fender

$

$

Not available

White Outdoor 777-4777

Reflective Label - Seat Back

$

$

Not available
