GT-185 (143U836H190) - White Outdoor 46" Garden Tractor (1993) Mower Deck Model Parts Diagram

46" Garden Tractor

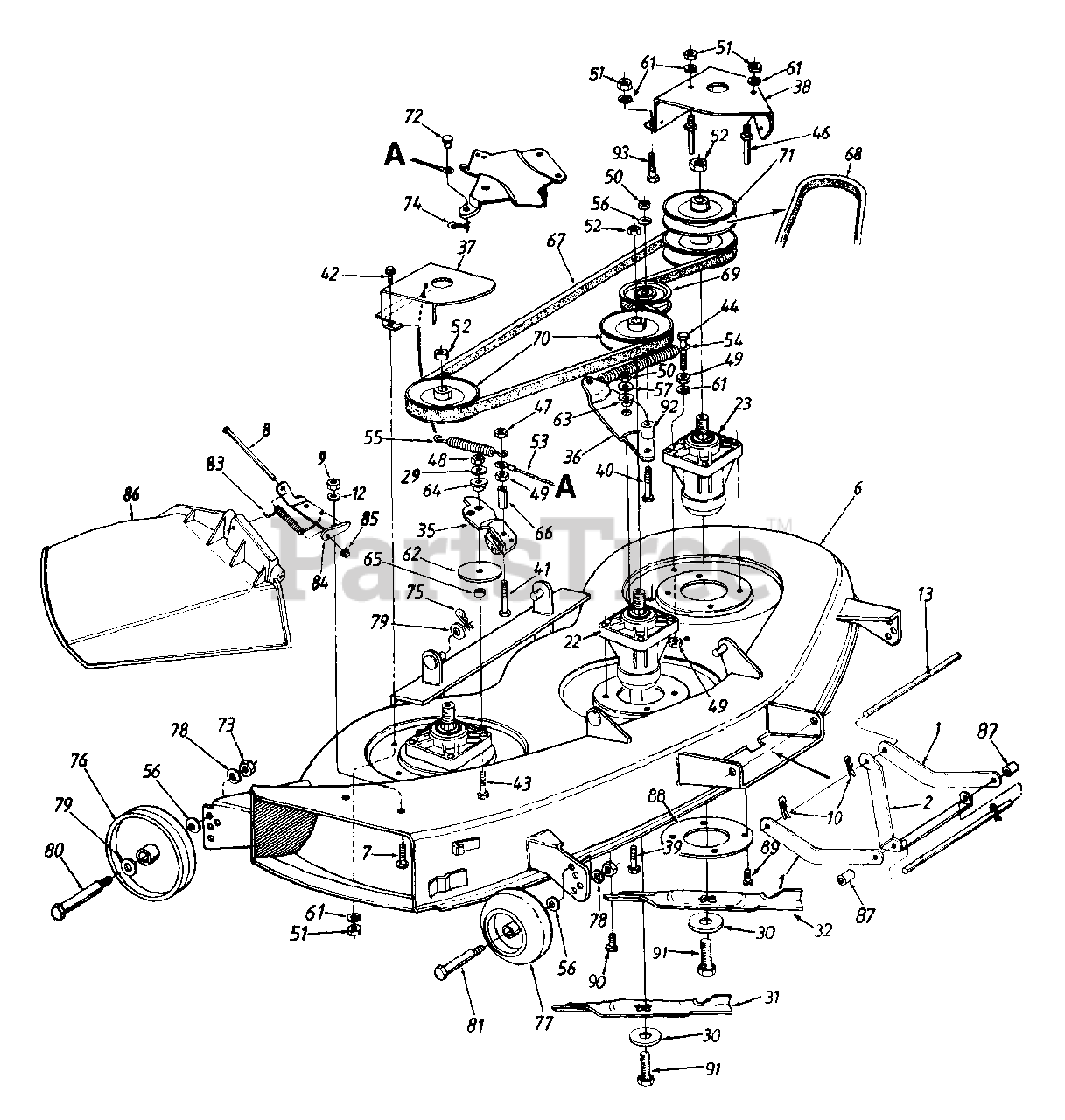

Mower Deck Model Parts Diagram

  • Title

1

White Outdoor 17347

Deck Stabilizer
(Superseded to 17347-0637)

Variations

White Outdoor 17347-0637

STABILIZER-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 17264

Diagonal Brace

Variations

White Outdoor 17264-0637

BRACE-DIAGONAL - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 683-0052

46" Deck Ass'y. Comp.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 683-0052-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0052-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 683-0052-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0052-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0052-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0052-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 683-0052-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

White Outdoor 683-0053

46" Deck Ass'y. Comp. (Style 9)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 683-0053-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0053-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 683-0053-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0053-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0053-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0053-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 683-0053-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

White Outdoor 683-0054

46" Deck Ass'y. Comp. (Electric Clutch)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 683-0054-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0054-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0054-0662

DECK ASSY-COMPLETE46 - OYSTER GRAY (0662)

$

$

Not available

$

$

7

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

9

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

White Outdoor 714-0149B

Hairpin Clip

$4.49

$

In Stock, Qty 18

0

12

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 738-0392

Deck Connecting Rod

$

$

Not available

22

White Outdoor 618-0111

Spindle Ass'y. (R.H. & Center)
(Superseded to 918-0116C)

Note: Code: N Notates a new part (not previously existing)

$149.99

$

Usually ships in 3-6 days

0

23

White Outdoor 618-0112

Spindle Ass'y. (L.H.)
(Superseded to 918-0117B)

Note: Code: N Notates a new part (not previously existing)

$203.99

$

In Stock, only 1 left!

0

29

White Outdoor 736-0119

Lock Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0510

Bell-Wash. .47" I.D. x 1.5"

Note: Code: N Notates a new part (not previously existing)

$4.99

$

In Stock, only 2 left!

0

31

White Outdoor 742-0543

High Lift Blade 14.88" Lg. (Middle)
(Superseded to 942-0543)

Note: Code: N Notates a new part (not previously existing)

$25.99

$

In Stock, only 1 left!

0

32

White Outdoor 742-0542

High Lift Blade 16.28" Lg. (R.H. & L.H.)
(Superseded to 942-0542)

Note: Code: N Notates a new part (not previously existing)

$27.99

$

In Stock, only 2 left!

0

35

White Outdoor 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

36

White Outdoor 17213

Idler Bracket
(Superseded to 17213A-0637)

$19.99

$

Usually ships in 3-6 days

0

37

White Outdoor 17258A

Belt Cover Brkt. - R.H.
(Superseded to 17258E)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17258A-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258A-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258A-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

38

White Outdoor 783-0066

Belt Cover - L.H.
(Superseded to 783-0066A)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0066-0480

Belt Cover, LH Black - BRILLIANT GREEN (0480)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0483

Belt Cover, LH Black - CHARCOAL GRAY (0483)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0498

Belt Cover, LH Black - OLD CUB YELLOW (0498)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0629

Belt Cover, LH Black - SILVER FLAKE (0629)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0638

Belt Cover, LH Black - MTD/TROY-BILT RED (0638)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0640

Belt Cover, LH Black - CO-OP GREEN (0640)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0648

Belt Cover, LH Black - TECH GRAY (0648)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0662

Belt Cover, LH Black - OYSTER GRAY (0662)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0665

Belt Cover, LH Black - YARDMAN GREEN (0665)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0667

Belt Cover, LH Black - MIDNIGHT BLUE (0667)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0668

Belt Cover, LH Black - MOSS GREEN (0668)

$68.99

$

In Stock, only 4 left!

0

White Outdoor 783-0066-0674

Belt Cover, LH Black - YARDMAN YELLOW (0674)

$68.99

$

In Stock, only 4 left!

0

$63.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 710-0151

Hex Bolt 3/8-24 x 2" Lg.

$7.49

$

In Stock, only 3 left!

0

41

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

42

White Outdoor 710-0599

Hex Wash. Hd. Tap-Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0624

Hex Bolt 5/16-24 x 1.5" Lg. (Grade 5)

$5.99

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0698

Hex Bolt 1/4-28 x 1.5" Lg.

$

$

Not available

46

White Outdoor 711-0993

Belt Guard Pin 1/4" Dia.
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

47

White Outdoor 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

48

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

49

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

50

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

51

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

52

White Outdoor 712-0417

Hex Flange L-Nut 5/16-18 Thd.
(Superseded to 712-0417A)

$6.99

$

In Stock, Qty 20+

0

53

White Outdoor 727-0426

Brake Cable Ass'y.

$

$

Not available

White Outdoor 727-0445

Brake Cable Ass'y. (Style 9)

$

$

Not available

54

White Outdoor 732-0594A

Extension Spring 6.17" Lg.
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

55

White Outdoor 732-0429A

Extension Spring 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

56

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

62

White Outdoor 736-0416

Fl-Wash. 5/16" I.D. x 3" O.D.

$

$

Not available

63

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

64

White Outdoor 748-0234

Shld. Spacer

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 750-0214

Spacer .34" I.D.

$

$

Not available

66

White Outdoor 750-0470

Spacer .326" I.D

$6.99

$

Usually ships in 3-6 days

0

67

White Outdoor 754-0349

V-Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

68

White Outdoor 754-0350

V-Belt
(Superseded to 954-0350)

$54.99

$

In Stock, only 1 left!

0

69

White Outdoor 756-0627

Fl-Idler Pulley 3.5" O.D.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

70

White Outdoor 756-0969

Pulley 5.0" Dia.

Note: Code: N Notates a new part (not previously existing)

$35.99

$

Usually ships in 3-6 days

0

71

White Outdoor 756-0977

Double Pulley 5.0" Dia.
(Superseded to 756-0603)

Note: Code: N Notates a new part (not previously existing)

$119.99

$

Usually ships in 3-6 days

0

72

White Outdoor 711-0701

Clevis Pin 1/4" Dia. x .53" Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

73

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

74

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 714-0145

Intern. Cotter Pin 3/8 Dia.

$4.99

$

In Stock, Qty 20+

0

76

White Outdoor 734-0973

Deck Wheel 5" Dia.

$12.99

$

In Stock, Qty 20+

0

77

White Outdoor 734-3058B

Deck Wheel w/Insert 5" Dia.
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

78

White Outdoor 736-0169

L-Wash. 3" I.D.

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 736-0192

Fl-Wash. .531" I.D.

$4.49

$

In Stock, Qty 18

0

80

White Outdoor 738-0533

Shoulder Bolt .498" Dia. x 1.64" Lg.

$7.99

$

Usually ships in 3-6 days

0

81

White Outdoor 738-3056

Shoulder Bolt
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

83

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

84

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

85

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

86

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. 8, 83, 84, 85, 86)

$81.99

$

In Stock, Qty 6

0

87

White Outdoor 750-0757

Spacer 5/8" I.D. x 7/8" O.D.
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

88

White Outdoor 17982

Spindle Reinforcement Plate
(Superseded to 17982-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

89

White Outdoor 710-1261

Hex Wash. Hd. Scr. 5/16-18 x 1" Lg.
(Superseded to 710-0650)

Note: Code: N Notates a new part (not previously existing)

$3.99

$

In Stock, Qty 20+

0

90

White Outdoor 710-1260

Hex Wash. Hd. Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

Note: Code: N Notates a new part (not previously existing)

$3.99

$

In Stock, Qty 20+

0

91

White Outdoor 710-1262

Hex L-Bolt 7/16-20 x 1" Lg.
(Superseded to 710-0314)

Note: Code: N Notates a new part (not previously existing)

$4.49

$

In Stock, Qty 13

0

92

White Outdoor 711-0242

Spacer .38" I.D.

$4.49

$

In Stock, Qty 9

0

93

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0
