GT-185 (132-836H190) - White Outdoor 46" Garden Tractor (1992) Transaxle P/N 717-0950 Parts Diagram

46" Garden Tractor

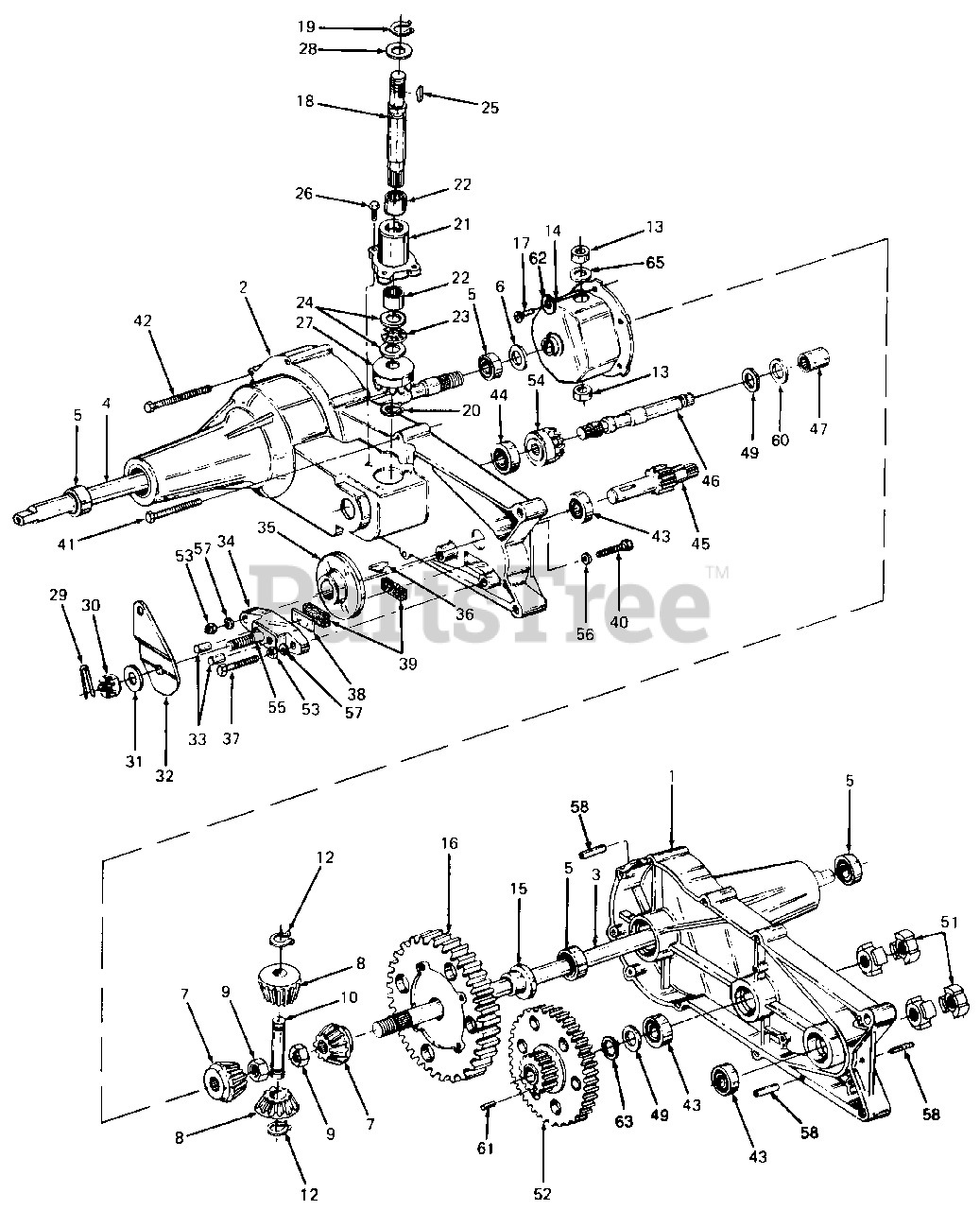

Transaxle P/N 717-0950 Parts Diagram

  • Title

White Outdoor 717-0950

Transaxle

$

$

Not available

1

White Outdoor AF-44077

Housing Half, L.H.
(Superseded to HG-62587)

$

$

Not available

2

White Outdoor AF-44076

Housing Half, R.H.
(Superseded to HG-62586P)

$

$

Not available

3

White Outdoor AF-44393

Axle, L.H.

$

$

Not available

4

White Outdoor AF-44392

Axle, R.H.

$

$

Not available

5

White Outdoor AF-44121

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

6

White Outdoor AF-44008

Washer, Flat, .76" x 1-1/8" x .306" Thk. Hdn.
(Superseded to HG-44008)

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 717-1019

Gear, Miter
(Superseded to 917-1019)

$29.99

$

Usually ships in 3-6 days

0

8

White Outdoor 717-1020

Gear, Miter

$

$

Not available

9

White Outdoor 712-0200

Nut, Hex Jam Patch Lock 1/2-20
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

10

White Outdoor 717-0673

Shaft, Cross
(Superseded to 753-0527)

$

$

Not available

?11

White Outdoor 736-0369

Washer, Flat .505" I.D. x 1.0"

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 716-0142

Ring, Snap
(Superseded to 753-0527)

$

$

Not available

13

White Outdoor 717-0690

Bearing, Thrust
(Superseded to 753-0527)

$

$

Not available

14

White Outdoor 717-0777

Housing Ass'y. Differential
(Superseded to 753-0546)

$62.99

$

Usually ships in 3-6 days

0

15

White Outdoor 741-0376

Bearing, Flange, .75" I.D. x .587"
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

16

White Outdoor 717-0759

Gear, Differential, 72 Tooth
(Superseded to 917-0767)

$

$

Not available

17

White Outdoor 710-1017

Torx Hd. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

18

White Outdoor AF-44270

Shaft, Input
(Superseded to HG-62636)

$

$

Not available

19

White Outdoor 716-0115

Ring, Snap
(Superseded to 916-0115)

$

$

Not available

20

White Outdoor 716-0108

Ring, Retaining, Ext. 7/16" Dia.

$5.49

$

Usually ships in 3-6 days

0

21

AF-44081

Bearing, Input Housing

$

$

Not available

22

White Outdoor 741-0335

Bearing, Needle, 5/8" I.D. x .50" Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 4 left!

0

23

White Outdoor AF-44139

Bearing, Thrust
(Superseded to HG-44139P)

$

$

Not available

24

White Outdoor AF-44109

Washer, Flat, 5/8" I.D. x 1.12" O.D. x .030" Thk.
(Superseded to HG-44109)

$10.99

$

Usually ships in 3-6 days

0

25

White Outdoor 714-0129

Key #4 Hi-Pro, 3/32" x 5/8" Dia. (Hdn)
(Superseded to 914-0129)

$

$

Not available

26

White Outdoor AF-44122

Screw, Hex Patch Lock, 1/4-20 x 3/4" Lg.

$

$

Not available

27

AF-44078

Gear, Input Pinion, 17 Tooth

$

$

Not available

28

White Outdoor 736-0336

Washer, Flat, .62" I.D. x 1.0" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0349

Washer, Flat, .62" I.D. x 1.0" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0337

Washer, Flat, .62" I.D. x 1.0" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0

White Outdoor AF-44371

Washer, Flat, .62" x 1.0" O.D. x .50" Thk.
(Superseded to HG-44371)

$15.99

$

Usually ships in 3-6 days

0

29

White Outdoor 714-0507

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

30

White Outdoor 712-0335

Nut, Castle, 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0371

Washer, Flat, .343" x .88" x .062" Thk.

$4.49

$

In Stock, only 3 left!

0

32

White Outdoor AF-44094

Arm, Brake Actuator

$

$

Not available

33

White Outdoor 741-0343

Pin, Actuating, 5/16" Dia.

$10.99

$

In Stock, Qty 7

0

34

White Outdoor 717-0679

Yoke, Brake

$

$

Not available

35

White Outdoor 717-0677

Disc, Brake

$

$

Not available

36

White Outdoor 714-0161

Key, Hi-Pro, 3/16" x 5/8" Dia.
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor AF-44276

Screw, Hex Patch Lock, 1/4-20 x 1.5" Lg.

$

$

Not available

38

White Outdoor 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

39

White Outdoor 717-0678

Puck, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

40

White Outdoor AF-44277

Screw, Hex Cap, 1/4-20 x 1.5" Lg.

$

$

Not available

41

White Outdoor AF-44123

Screw, Hex Self-Tap, 1/4-20 x 2.0" Lg.

$

$

Not available

42

White Outdoor AF-44124

Screw, Hex Self-Tap, 1/4-20 x 2.75" Lg.

$

$

Not available

43

White Outdoor 741-0155

Bearing, Ball
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

44

White Outdoor 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

45

White Outdoor AF-44083

Shaft, Pinion w/11 Tooth Gear
(Superseded to HG-44083P)

$

$

Not available

46

White Outdoor AF-44080

Shaft, Drive
(Superseded to HG-44080)

$181.99

$

Usually ships in 3-6 days

0

47

White Outdoor AF-44342

Bearing, Needle
(Superseded to 941-0478)

$

$

Not available

49

AF-44110

Washer, Flat, 5/8" x 1.12" x .060" Thk.

$

$

Not available

White Outdoor AF-44371

Washer, Flat, 5/8" x 1.12" x .050" Thk.
(Superseded to HG-44371)

$15.99

$

Usually ships in 3-6 days

0

51

White Outdoor AF-44084

Coupling
(Superseded to HG-44084P)

$17.99

$

In Stock, Qty 6

0

52

White Outdoor AF-44082

Gear, Tooth 60 & 17
(Superseded to HG-62760P)

$

$

Not available

53

White Outdoor 712-0298

Nut, Hex Jam, 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

54

White Outdoor AF-44079

Gear, Drive Pinion, 17 Tooth

$

$

Not available

55

White Outdoor 717-0796

Bolt, Square Hd. 5/16-24 Thd.

$

$

Not available

56

White Outdoor 736-0176

Washer, Flat, .265" x .938" x .12" Thk.

$4.99

$

In Stock, only 4 left!

0

57

White Outdoor 736-0329

Washer, Lock, 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

White Outdoor AF-44269

Pin, Roll, 3/16 Dia. x .50" Lg.

$

$

Not available

?59

737-3047

Grease, Transmission

$

$

Not available

60

White Outdoor AF-44343

Bronze Thrust Brg. 5/8" I.D.
(Superseded to HG-44343)

$28.99

$

In Stock, only 1 left!

0

61

White Outdoor AF-44346

Dowel Pin 3/32" x 1/4"

$

$

Not available

62

MTD AF-44504

Washer, Spring Lock 1/4" I.D.
(Superseded to HG-44126)

$

$

Not available

63

White Outdoor AF-44394

Seal, Grease
(Superseded to HG-44394)

$

$

Not available

65

White Outdoor 736-0369

Washer, Flat, .62" I.D. x 1.0" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

AF-44421

Washer, Flat, .62" I.D. x 1.0" O.D. x .030" Thk.

$

$

Not available
