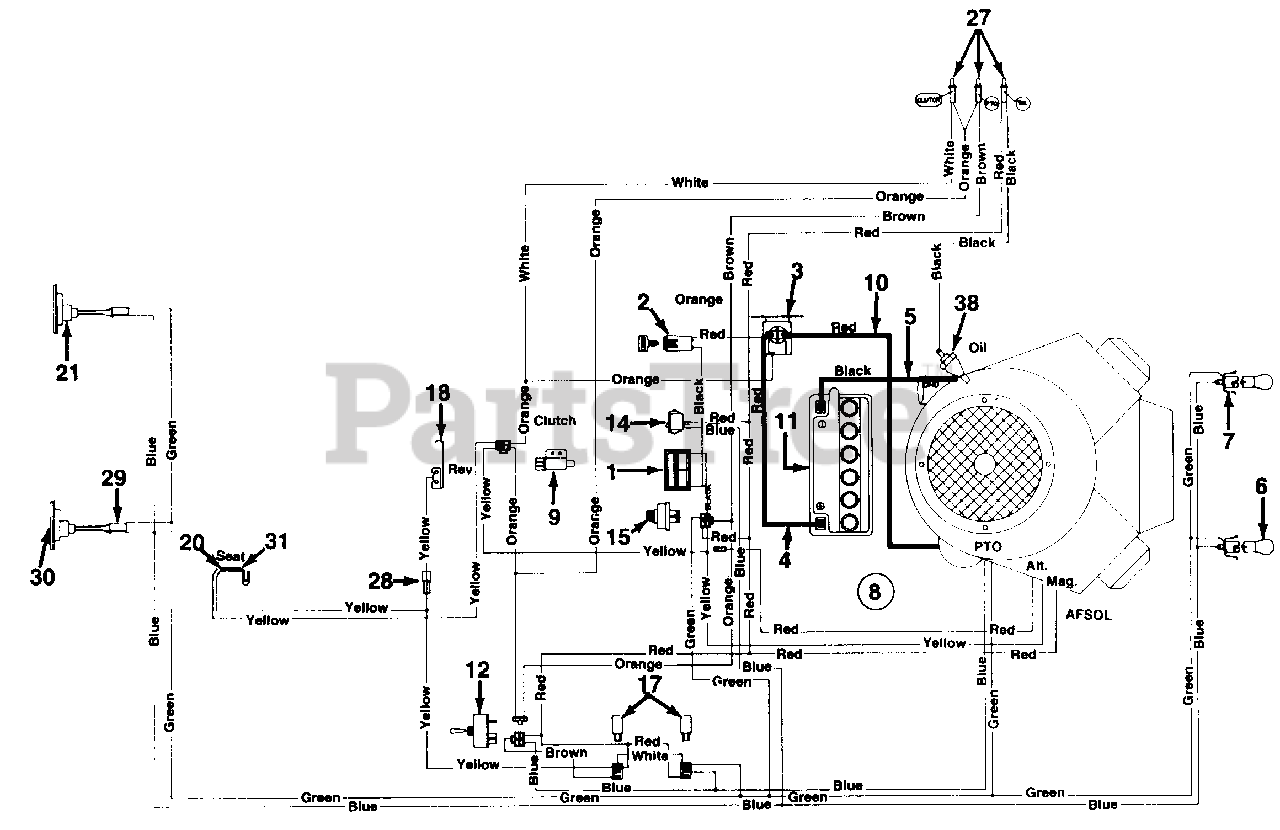

GT-185 (132-836H190) - White Outdoor 46" Garden Tractor (1992) Electrical System Parts Diagram

46" Garden Tractor

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

2

White Outdoor 725-1381

Fuse 20 Amp
(Superseded to 925-1381)

Note: Code: N notates a new part (not previously existing).

$6.49

$

In Stock, Qty 11

0

3

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

4

White Outdoor 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

5

White Outdoor 725-0981

6 Ga. Red Wire 20" Lg.

$

$

Not available

6

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

7

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

Note: Code: N notates a new part (not previously existing).

$11.99

$

In Stock, Qty 20+

0

8

629-0065

Wire Harness

Note: Code: N notates a new part (not previously existing).

$

$

Not available

9

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

10

White Outdoor 725-1085

6 Ga. Black Wire
(Superseded to 629-0700)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

11

White Outdoor 725-1635

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

12

White Outdoor 725-0893

Switch (PTO)
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

?13

White Outdoor 725-0379

Safety Switch (Clutch)

$

$

Not available

14

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

15

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

17

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

Note: Code: N notates a new part (not previously existing).

$47.99

$

In Stock, Qty 7

0

18

White Outdoor 725-1643

Spring Lever

Note: Code: N notates a new part (not previously existing).

$10.99

$

In Stock, only 1 left!

0

20

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

21

725-3018

Taillight

$

$

Not available

27

White Outdoor 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

28

White Outdoor 725-1399

Transmission Ext. Wire

$

$

Not available

29

White Outdoor 725-1380

Taillight Harness

$

$

Not available

30

White Outdoor 725-3020

Bulb
(Superseded to 925-3020)

$

$

Not available

31

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

38

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available
