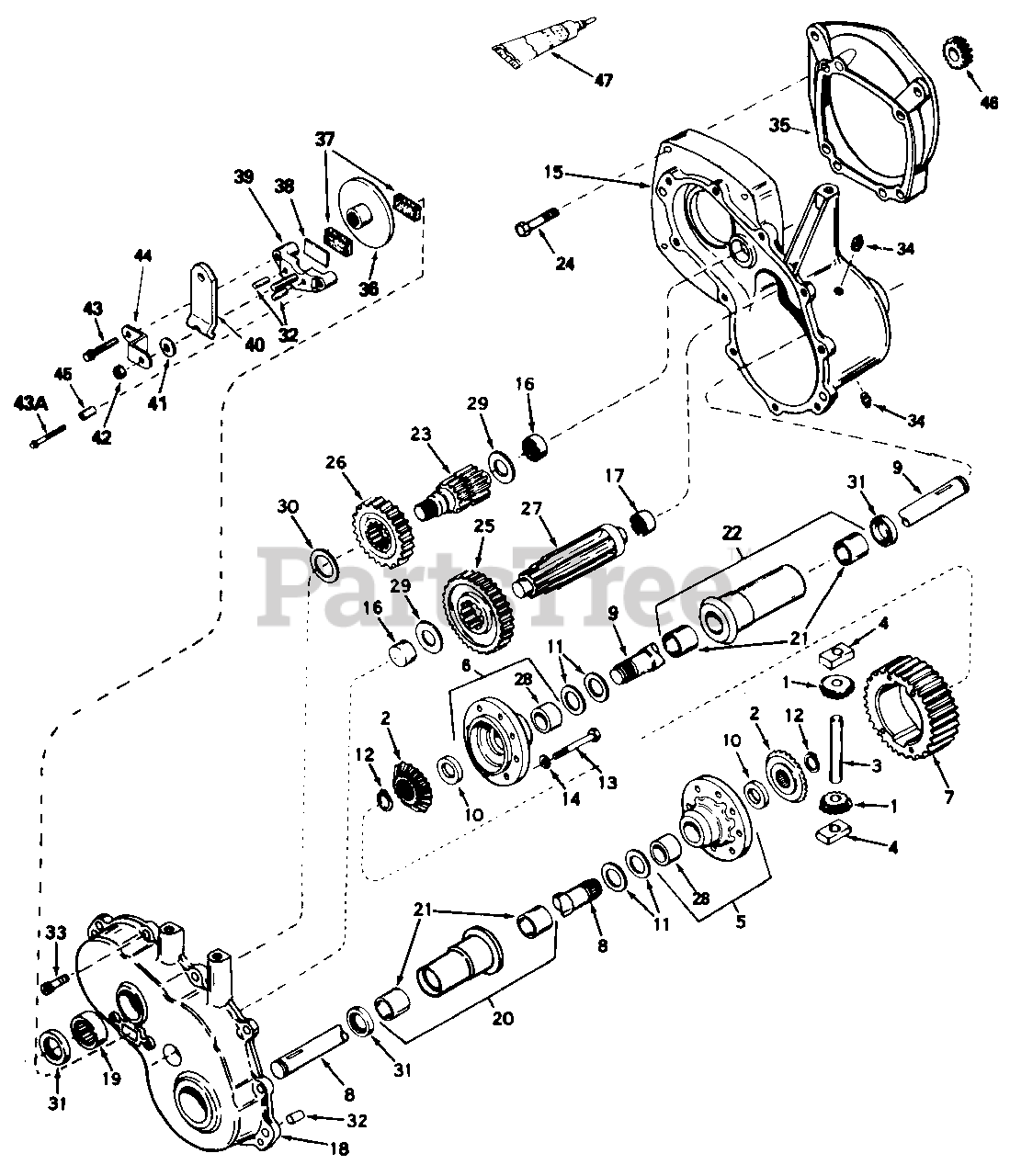

GT-1845 (146-842-190) - White Outdoor Yard Boss Garden Tractor (1986) Transaxle Assembly Parts Diagram

Yard Boss Garden Tractor

Transaxle Assembly Parts Diagram

  • Title

1

MTD TC-778094

Pinion, Bevel

Note: NLA

$

$

Currently unavailable

2

MTD TC-778095

Gear, Bevel

Note: NLA

$

$

Currently unavailable

3

MTD TC-786019

Pin, Drive

Note: NLA

$14.99

$

Usually ships in 3-12 days

0

4

MTD TC-786027

Block, Drive

Note: NLA

$10.99

$

In Stock, only 1 left!

0

5

MTD TC-774609

Carrier Ass'y., Differential

Note: NLA

$

$

Currently unavailable

6

MTD TC-774610

Carrier Ass'y., Differential

Note: NLA

$

$

Currently unavailable

7

MTD TC-778033A

Gear, Ring

Note: NLA

$

$

Currently unavailable

8

MTD TC-774611

Axle (13-1/16" Long)

Note: NLA

$

$

Currently unavailable

9

MTD TC-774612

Axle (19-1/8" Long)

Note: NLA

$

$

Currently unavailable

10

MTD TC-780107

Washer

$4.49

$

Usually ships in 3-12 days

0

11

MTD TC-780042

Washer, Thrust

Note: NLA

$4.49

$

Usually ships in 3-12 days

0

12

MTD 716-3001

Ring, Snap

$4.99

$

In Stock, only 1 left!

0

13

MTD TC-792005

Screw, Hex Hd., 1/4-20 X 21/4

Note: NLA

$

$

Currently unavailable

14

MTD TC-792006

Lock Washer, 1/4"

Note: NLA

$

$

Currently unavailable

15

MTD TC-770081

Case Ass'y.

Note: NLA

$

$

Currently unavailable

16

MTD 941-0362

Bearing, Needle

$109.99

$

Usually ships in 3-6 days

0

17

MTD TC-780088

Bearing, Needle

Note: NLA

$21.99

$

Usually ships in 3-12 days

0

18

MTD TC-772085

Cover Ass'y.

Note: NLA

$227.99

$

In Stock, only 2 left!

0

19

MTD TC-780089

Bearing, Needle

Note: NLA

$24.99

$

Usually ships in 3-12 days

0

20

MTD TC-782041A

Housing & Bushing Ass'y. (6-5/8" Long)

Note: NLA

$189.99

$

In Stock, only 1 left!

0

21

MTD TC-780054

Bushing

$10.99

$

Usually ships in 3-12 days

0

22

MTD TC-782067

Housing & Bushing Ass'y. (12-45/64" Long)

Note: NLA

$

$

Currently unavailable

23

MTD TC-776245

Shaft, Brake

Note: NLA

$

$

Currently unavailable

24

MTD TC-792120

Screw, Hex Hd., 3/8-16 x 2

Note: NLA

$

$

Currently unavailable

25

MTD TC-778036

Gear, Output

Note: NLA

$76.99

$

Usually ships in 3-12 days

0

26

MTD TC-778195

Gear, Idler

Note: NLA

$

$

Currently unavailable

27

MTD TC-776244

Shaft, Output

Note: NLA

$

$

Currently unavailable

28

MTD TC-780144

Bushing

Note: NLA

$

$

Currently unavailable

29

MTD TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

30

MTD TC-780090

Washer

$4.49

$

In Stock, Qty 7

0

31

MTD TC-788008

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

32

MTD TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

33

MTD TC-792046

Screw, Hex Washer Hd. Thread Forming, 1/4-20 x 1

Note: NLA

$

$

Not available

34

MTD TC-792010

Plug, Pipe

Note: NLA

$

$

Not available

35

MTD TC-786112

Plate, Adapter

Note: NLA

$

$

Currently unavailable

36

MTD TC-790027

Disc, Brake

Note: NLA

$

$

Currently unavailable

37

MTD TC-799021A

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

38

MTD TC-790007

Plate, Brake Pad

$5.99

$

In Stock, only 1 left!

0

39

MTD TC-790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

40

MTD TC-790010

Lever, Brake

Note: NLA

$

$

Currently unavailable

41

MTD 736-3078

Washer, Flat

$4.49

$

In Stock, only 3 left!

0

42

MTD 912-0237

Lock Nut, 5/16-24
(Superseded to 712-0237)

$

$

Not available

43

MTD TC-792073A

Screw, Flanged Hex Hd. Thread Forming, 1/4-20 x 1-1/4

$1.99

$

Usually ships in 3-12 days

0

43A

MTD TC-792085A

Screw, Flanged Hex Hd. Thread Forming, 1/4-20 x 2-1/4

$4.49

$

In Stock, only 1 left!

0

44

MTD TC-786086

Bracket

$6.49

$

Usually ships in 3-12 days

0

45

MTD TC-786066

Spacer

Note: NLA

$4.49

$

In Stock, only 2 left!

0

46

MTD TC-778196

Gear, Spur (18 Teeth)

Note: NLA

$

$

Currently unavailable

47

MTD TC-510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0
