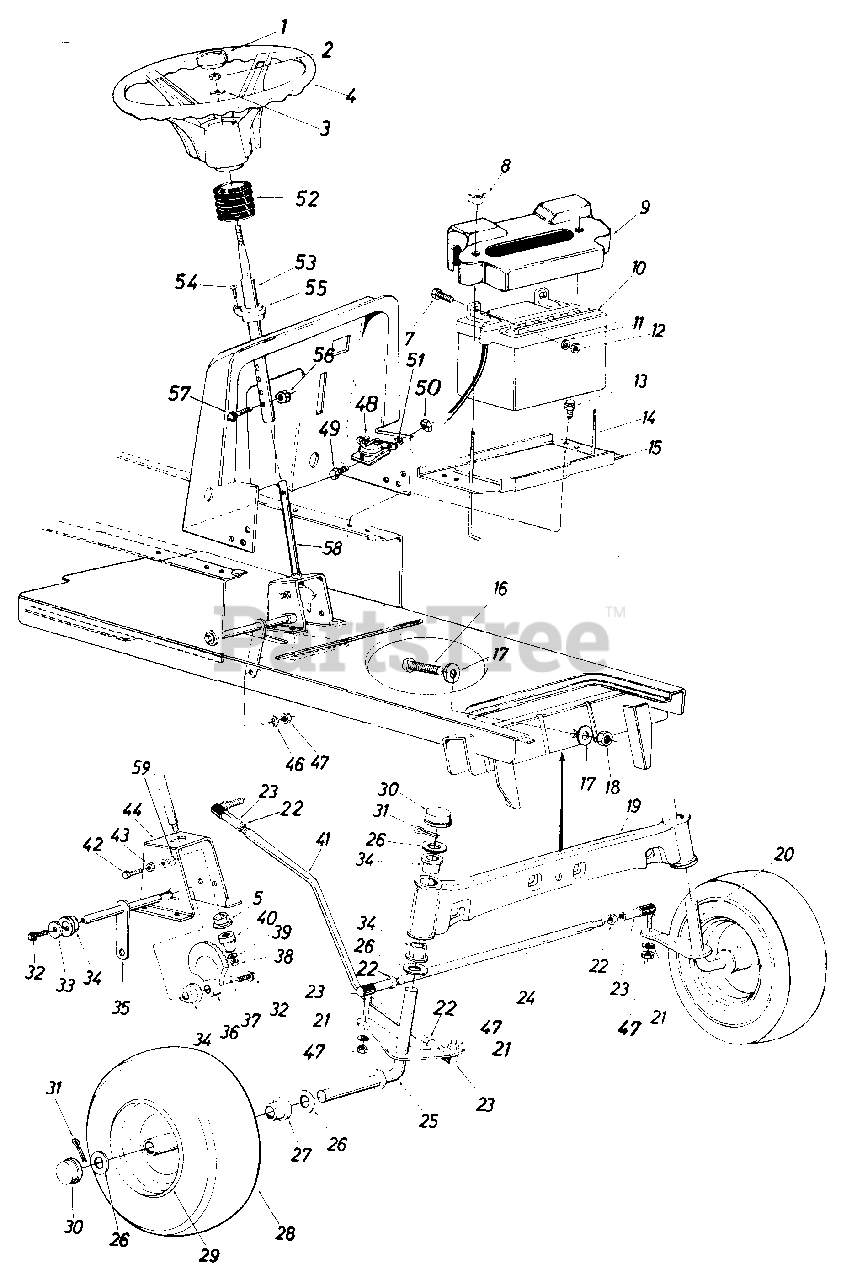

GT-1810 (148-800-190) - White Outdoor Garden Tractor (1988) Steering Assembly Parts Diagram

Garden Tractor

Steering Assembly Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

2

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

3

MTD 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

4

MTD 931-0806A

Steering Wheel

$

$

Not available

5

MTD 941-0225

Plastic Hex Bearing 5/8" I.D.

$7.49

$

In Stock, Qty 20+

0

5

MTD 741-0356

Steering Column Bearing
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

7

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-0113

Wing Nut Plastic 1/4-20 Thd.

$6.99

$

In Stock, only 2 left!

0

9

MTD 731-0707

Battery Cover

Note: NLA

$

$

Not available

10

MTD 925-0453G

12-V Battery

$

$

Not available

11

MTD 936-0329

L-Wash 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

12

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

15

MTD 13379

Battery Plate

Note: NLA

$

$

Not available

16

MTD 710-0533

Hex Bolt 5/8-18 x 2.5" Lg.

Note: NLA

$

$

Not available

17

MTD 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

Note: NLA

$

$

Not available

18

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 13865

Front Pivot Bar Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 13839

Front Axle Ass'y.-L.H.

Note: NLA

$

$

Currently unavailable

21

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 923-0156

Ball Joint Ass'y.

$16.99

$

In Stock, Qty 20+

0

24

MTD 747-0301

Tie Rod

Note: NLA

$

$

Not available

25

MTD 13838

Front Axle Ass'y.-R . H .

Note: NLA

$

$

Currently unavailable

26

MTD 936-0316

Fl-Wash. .780 I.D. x 1.59 O.D.
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

27

MTD 941-0382

Bearing 16 x 6.50 Turf Tread

$

$

Not available

28

MTD 734-1500A

Wheel Assembly Comp. 16 x 6.50 Turf Tread

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-1500A-0911

Wheel Ass'y. Comp. - Carlisle Gray (0911)

$

$

Not available

MTD 734-1500A-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1500A-0915

No Longer Available - Duro Gray (0915)

$

$

Not available

MTD 734-1500A-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1500A-0942

No Longer Available WHL ASM 1 - Dico Yellow (0942)

$

$

Not available

MTD 734-1500A-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

29

MTD 934-0067-0662

Rim Only 16 x 6.50 Turf Tread

$

$

Not available

30

MTD 931-0484A

Dust Cover

$6.49

$

In Stock, Qty 20+

0

31

MTD 914-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.

$

$

Not available

32

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg. Grade 5

$6.99

$

In Stock, only 3 left!

0

33

MTD 936-0133

Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090
(Superseded to 736-0133)

$

$

Not available

34

MTD 941-0490

Flange Double "D" Brg. .753 I.D.

$13.99

$

In Stock, only 1 left!

0

35

MTD 12749

Steering Arm Shaft Ass'y.

Note: NLA

$

$

Not available

36

MTD 748-0236

Side Gear-Steering

$101.99

$

In Stock, only 1 left!

0

37

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

39

MTD 936-0264

Fl-Wash. 5/16" I.D. x .62 O.D. x .059

$6.99

$

In Stock, only 3 left!

0

40

MTD 948-0237

Pinion Gear-Steering

$21.99

$

In Stock, only 1 left!

0

41

MTD 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 10

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

44

MTD 12850

Steering Gear Sup. Ass'y.

Note: NLA

$

$

Not available

46

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0

49

MTD 910-0289

Hex Bolt 1/4-20 x .5" Lg.

$3.99

$

In Stock, only 3 left!

0

50

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

51

MTD 936-0222

Ext. L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

52

MTD 731-0559B

Steering Bellow

$

$

Not available

53

MTD 16512

Upper Steering Shaft

Note: NLA

$

$

Not available

54

MTD 710-0837

Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 6

0

55

MTD 741-0356

Fl-Bearing .89" I.D. x 1.36" O.D.
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

56

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

57

MTD 710-0958

Hex Bolt 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

58

MTD 738-0588

Lower Steering Shaft

$

$

Not available

59

MTD 731-0988

Nylon Cap

Note: NLA

$

$

Not available
