GT-1810 (148-800-190) - White Outdoor Garden Tractor (1988) Body Assembly Parts Diagram

Garden Tractor

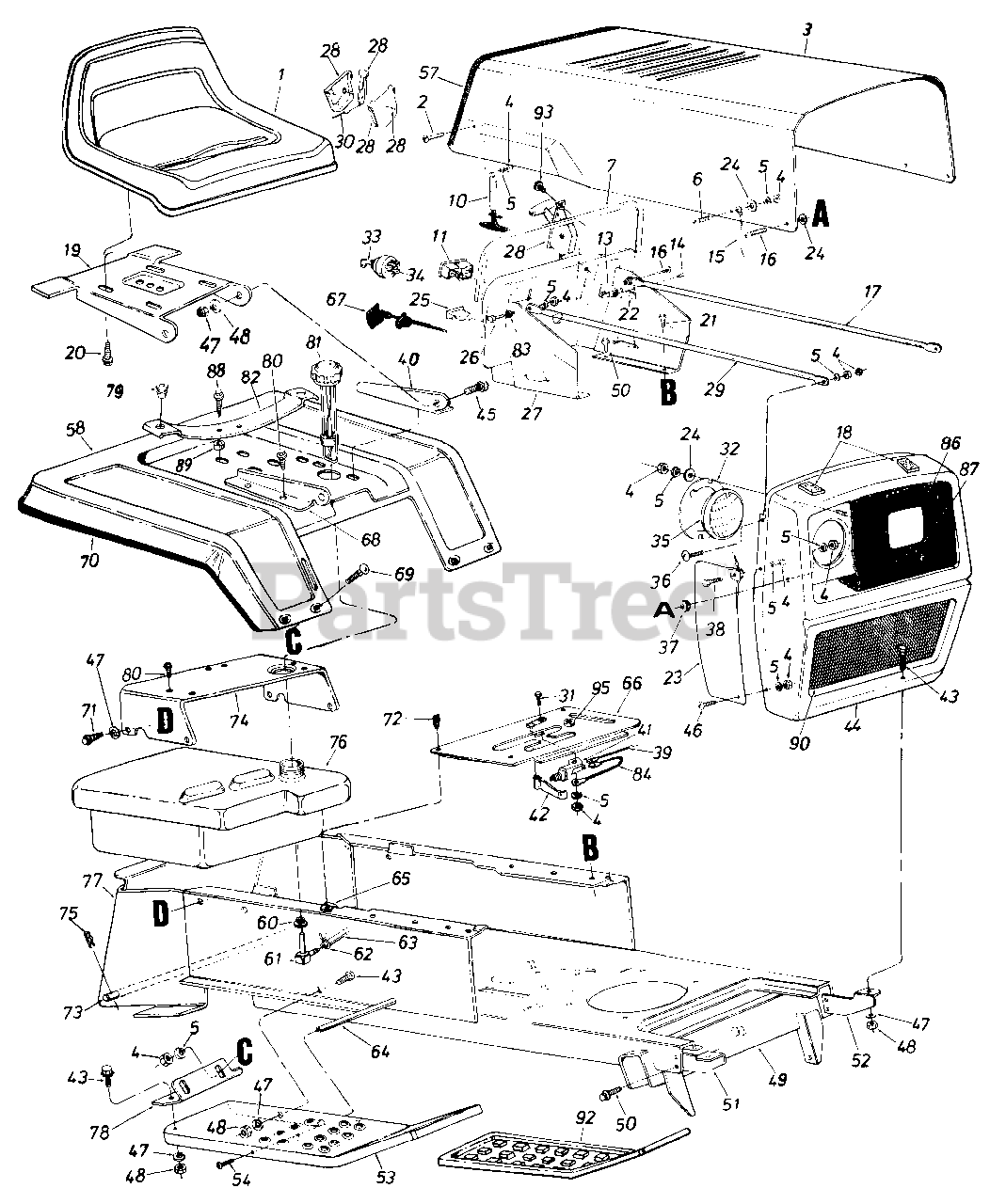

Body Assembly Parts Diagram

  • Title

1

MTD 757-0336

Seat Assembly

Note: NLA

$

$

Not available

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.'

$4.49

$

Usually ships in 3-6 days

0

3

MTD 13808

Hood

Note: NLA

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

5

MTD 936-0329

L-Wash. 1/4" Scr.

$4.49

$

In Stock, Qty 11

0

6

MTD 710-0286

Truss Mach. Scr. '/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 731-0511

Vinyl Molding Strip-29"

$3.99

$

Usually ships in 3-6 days

0

10

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

11

MTD 925-0925

Ammeter

$31.99

$

In Stock, Qty 6

0

13

MTD 753-0685

Circuit Breaker 8 Amp.

$

$

Not available

14

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

15

MTD 727-0199

Hood Stop

Note: NLA

$

$

Not available

16

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 749-0651

Grille Positioning Rod

$

$

Not available

18

MTD 722-0135

PVC Foam Strip 1/2 x 1.OO" x 2.00" Lg.

Note: NLA

$

$

Not available

19

MTD 783-0039A

Seat Pivot Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

20

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

21

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x . 50" Lg .

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0344

Speed Nut #10Z

Note: NLA

$

$

Not available

23

MTD 14748

Grille Side Panel-R.H.

Note: NLA

$

$

Currently unavailable

23

MTD 14749

Grille Side Panel-L.H.

Note: NLA

$

$

Currently unavailable

24

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 925-0634

Light Switch

$17.99

$

In Stock, only 4 left!

0

26

MTD 710-0166A

Truss Hd. Scr. 1/4-20 x 1.00" Lg.

$7.49

$

In Stock, only 1 left!

0

27

MTD 16427

Dash Panel Ass'y.

Note: NLA

$

$

Not available

28

MTD 831-0823A

Throttle Control Box Comp.

$32.99

$

In Stock, Qty 20+

0

29

MTD 749-0651

Grille Positioning Rod

$

$

Not available

30

MTD 946-0503

Throttle Control Cable

$

$

Not available

31

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.

$3.99

$

In Stock, only 3 left!

0

32

MTD 09960

Head Lamp Retainer

Note: NLA

$

$

Not available

33

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

34

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

35

MTD 925-0222

Head Lamp

$58.99

$

In Stock, only 4 left!

0

36

MTD 710-0924

Truss Machine Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

Note: NLA

$

$

Not available

38

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

39

MTD 725-0764

Reverse Lockout Wire Harness

Note: NLA

$

$

Currently unavailable

40

MTD 15803

Seat Bracket-L.H.

Note: NLA

$

$

Not available

41

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0

42

MTD 732-0405

Switch Actuator Spring Lever

Note: NLA

$

$

Currently unavailable

43

MTD 710-3008

Hex Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 13800

Grille Ass'y.

Note: NLA

$

$

Currently unavailable

45

MTD 938-0155

Shld. Bolt .437 Dia. x .162 Lg.

$6.99

$

Usually ships in 3-6 days

0

46

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

48

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 13820

Lower Frame Ass'y.

Note: NLA

$

$

Not available

50

MTD 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 13862

Grille Mount Brkt.-R.H.

Note: NLA

$

$

Not available

52

MTD 13863

Grille Mount Brkt.-L.H.

Note: NLA

$

$

Not available

53

MTD 13828

Running Board-R.H.

Note: NLA

$

$

Not available

53

MTD 13827

Running Board-L.H.

Note: NLA

$

$

Not available

54

MTD 710-0323

Truss Mach. Scr. 5/16-18 x 75" Lg.

$4.99

$

In Stock, only 2 left!

0

54

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

54

MTD 736-0242

Bell-Wash. .34" I.D. x .88 -O.D.

$4.49

$

In Stock, Qty 20+

0

57

MTD 731-0511

Vinyl Moulding Strip-30"

$3.99

$

Usually ships in 3-6 days

0

58

MTD 15886

Fender Ass'y.

Note: NLA

Variations

MTD 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

60

MTD 935-0149

Bushing

$2.99

$

In Stock, Qty 20+

0

61

MTD 751-3054

90ø Nipple

Note: NLA

$

$

Currently unavailable

62

MTD 726-0207

Hose Clamp 3/8"

Note: NLA

$

$

Not available

63

MTD 751-10349-16

Gas Line 46" Lg.

$19.99

$

In Stock, Qty 11

0

64

MTD 738-0435

Running Board Rod

Note: NLA

$

$

Not available

65

MTD 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

66

MTD 17152

Transmission Cover Ass'y.

Note: NLA

$

$

Currently unavailable

67

MTD 946-0613A

Choke Control Comp.

$27.99

$

In Stock, Qty 6

0

68

MTD 15802

Seat Bracket-R.H.

Note: NLA

$

$

Not available

69

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 731-0511

Trim Strip-81" Lg.

$3.99

$

Usually ships in 3-6 days

0

71

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-0351

Truss Hd. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

73

MTD 738-0482

Hitch Rod

$

$

Not available

74

MTD 15849

Seat Mounting Channel

Note: NLA

$

$

Not available

75

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

76

MTD 751-0367

Gas Tank

Note: NLA

$

$

Not available

77

MTD 13813

Hitch Plate

Note: NLA

$

$

Not available

78

MTD 15846-0637

Fender Brkt.-R.H.

$

$

Not available

78

MTD 15847

Fender Brkt.-L.H.

Note: NLA

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 731-0555A

Grommet

$

$

Not available

80

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

81

MTD 751-0370

Gas Gauge

Note: NLA

$

$

Not available

82

MTD 732-0431

Seat Spring

Note: NLA

$

$

Currently unavailable

83

MTD 936-0222

External Wash. 1/4" I.Dt
(Superseded to 736-0222)

$

$

Not available

84

MTD 725-0765

Electric Wire

Note: NLA

$

$

Not available

86

MTD 731-0465

Headlight Bezel

$

$

Not available

87

MTD 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

88

MTD 710-0817

Hex Self-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

89

MTD 950-0706

Spacer

$

$

Not available

90

MTD 731-0881

Grille Screen

Note: NLA

$

$

Not available

92

MTD 731-0755

Foot Pad

Note: NLA

$

$

Not available

93

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

95

MTD 731-0405

Snap Bushing

$

$

Not available

MTD 730-0116

Reflectors-Fender

Note: NLA

$

$

Currently unavailable
