GT-1810 (147-806-190) - White Outdoor Garden Tractor (1987) Electrical System Parts Diagram

Garden Tractor

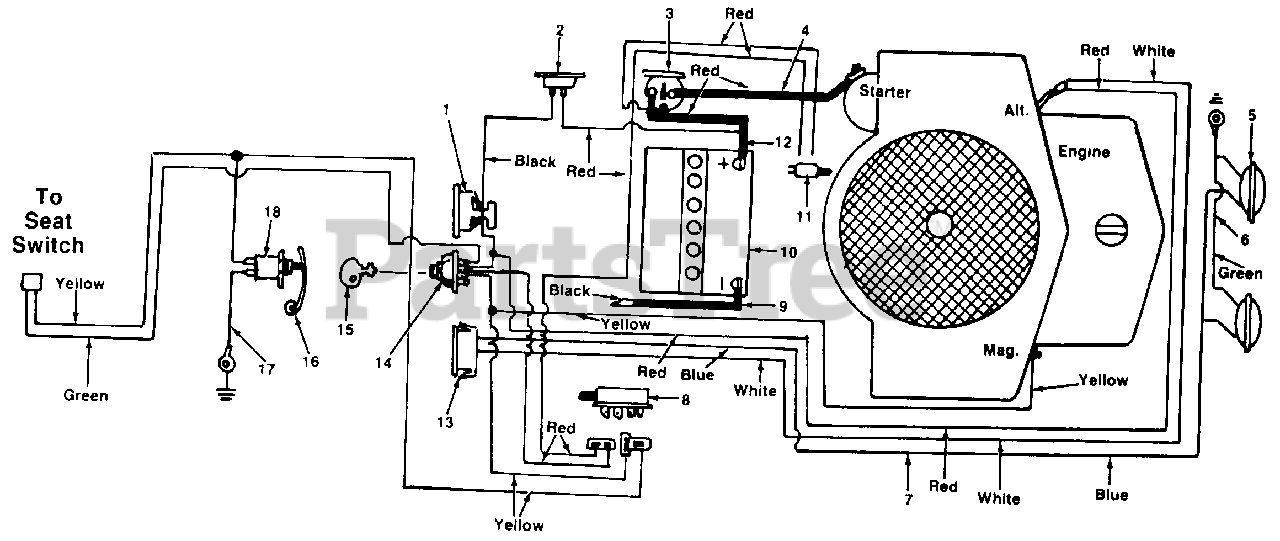

Electrical System Parts Diagram

  • Title

1

MTD 925-0925

Ammeter

$31.99

$

In Stock, Qty 6

0

2

MTD 753-0685

Circuit Breaker

$

$

Not available

3

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0

4

MTD 629-0705

Wire

$

$

Not available

5

MTD 925-0222

Headlight

$58.99

$

In Stock, only 4 left!

0

6

MTD 725-0916A

Ground Wire

$

$

Not available

7

MTD 925-1134A

Wire Harness

$

$

Not available

8

MTD 925-0465A

Safety Switch

$30.99

$

In Stock, only 1 left!

0

9

MTD 725-0996

6 Ga. Black Wire

Note: NLA

$

$

Not available

10

MTD 925-0453G

Battery 12V

$

$

Not available

11

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0

12

MTD 725-0563

Wire

Note: NLA

$

$

Currently unavailable

13

MTD 925-0634

Light Switch

$17.99

$

In Stock, only 4 left!

0

14

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

15

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

16

MTD 732-0405

Spring Lever

Note: NLA

$

$

Currently unavailable

17

MTD 725-0765

Electric Wire

Note: NLA

$

$

Not available

18

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0
