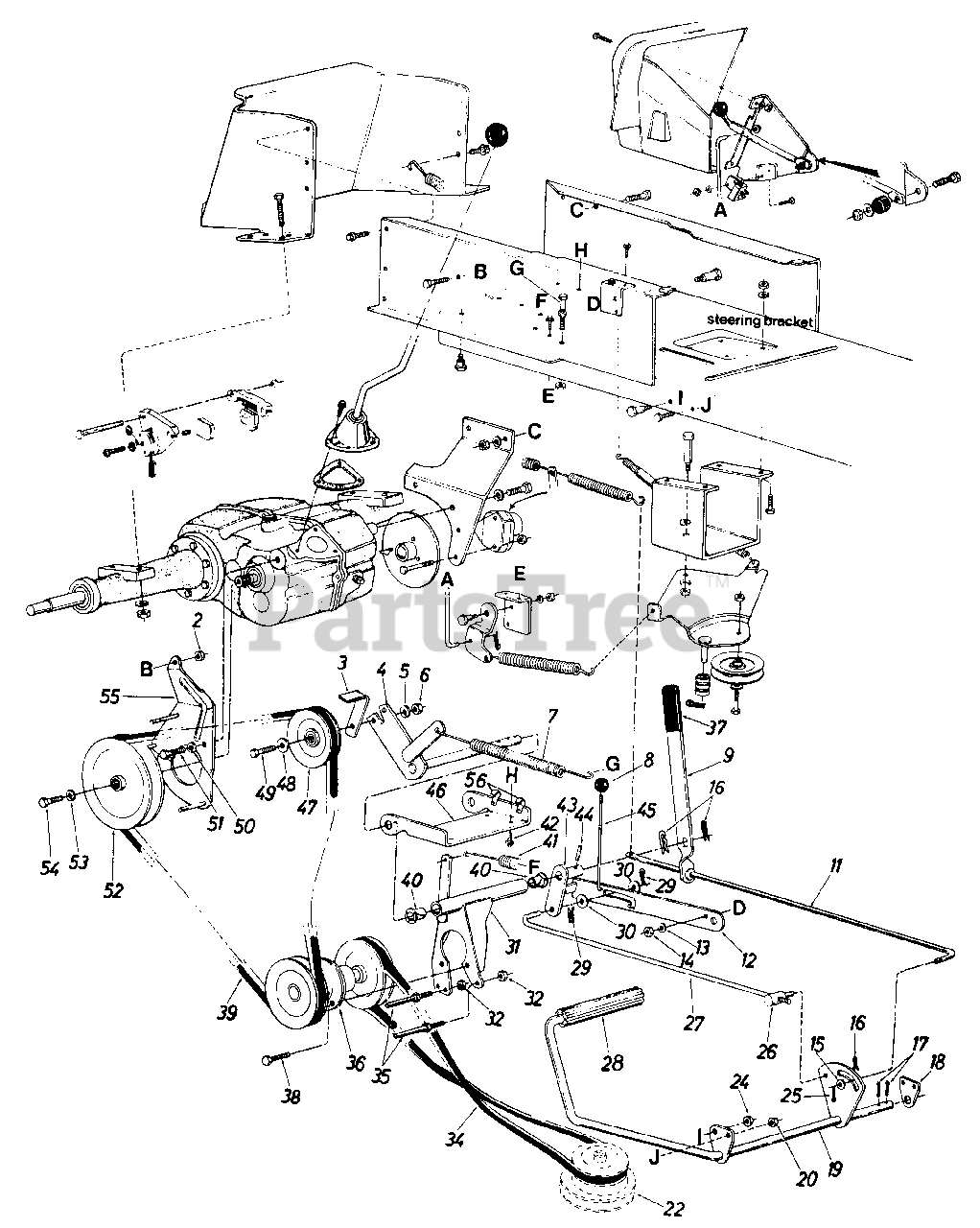

GT-1810 (146-832-190) - White Outdoor Garden Tractor (1986) Linkage Assembly Parts Diagram

Garden Tractor

Linkage Assembly Parts Diagram

  • Title

2

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

3

MTD 13819

Belt Guard (Clutch Idler)

Note: NLA

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 13815

Clutch Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

5

MTD 936-0169

L-Wash. 3/8" Scr.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

7

MTD 932-0384

Ext. Spring (Drive Idler)

$14.99

$

In Stock, Qty 12

0

8

MTD 720-0166

Knob (Parking Brake)

$

$

Not available

9

MTD 13872

Hand Brake Lever

Note: NLA

$

$

Currently unavailable

9

MTD 914-0145

Hairpin Cotter 3/8" Rod
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

11

MTD 747-0304

Brake Rod

Note: NLA

$

$

Currently unavailable

12

MTD 13832

Parking Brake Cam

Note: NLA

$

$

Not available

13

MTD 936-0119

Fl-Wash. 5/16" Scr.

$4.99

$

In Stock, Qty 20+

0

14

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0275

Fl-Wash. 5/16" Scr.
(Superseded to 736-0275)

$

$

Not available

16

MTD 914-0145

Hairpin Cotter 3/8" Rod
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

17

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

18

MTD 13859

Clutch Rod Brg. Brkt.

Note: NLA

$

$

Not available

19

MTD 13856

Clutch Brake Pedal Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

22

MTD 756-0328

Engine Pulley 4.75 & 5.56

$

$

Not available

24

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

26

MTD 911-0198

Pivot Bushing

$13.99

$

In Stock, Qty 17

0

27

MTD 747-0306

Brake Cam Rod

Note: NLA

$

$

Not available

28

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

29

MTD 914-0145

Hairpin Cotter 3/8" Rod
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

30

MTD 936-0101

Fl-Wash. 3/8" I.D. x 1.00" O D. x .030

$4.99

$

Usually ships in 3-6 days

0

31

MTD 13823

Jack Shaft Mtg. Brkt. Ass'y.

Note: NLA

$

$

Not available

32

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

34

MTD 954-0245

VBelt 1/2 x 59" Lg. (Polyester)

$

$

Not available

35

MTD 711-0696

Stud 3/8-16 x 3.62" Lg. Special

Note: NLA

$

$

Currently unavailable

36

MTD 756-0324

Jack Shaft Ass'y.

$

$

Not available

37

MTD 720-0189

Flat Grip

Note: NLA

$

$

Not available

38

MTD 910-0198

Hex Sem Scr. 5/16-18 x .75" Lg.

$

$

Not available

39

MTD 954-0244

VBelt 1/2 x 40" Lg. (Kevlar)

$39.99

$

Usually ships in 3-6 days

0

40

MTD 941-0591

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 741-0591)

$

$

Not available

41

MTD 732-0153

Ext. Spring (Jack Shaft)

$

$

Not available

42

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 13871

Clutch-ldler Horn Ass'y.

Note: NLA

$

$

Not available

44

MTD 715-0108

Spring Pin Spiral 1/4" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 15

0

45

MTD 747-0300

Parking Brake Link

Note: NLA

$

$

Currently unavailable

46

MTD 13822

Idler Mtg. Brkt. Drive

Note: NLA

$

$

Not available

47

MTD 756-0487

4" "V"-Idler Pulley

$48.99

$

In Stock, only 1 left!

0

48

MTD 936-0300

Fl-Wash. 3/8" I.D.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

50

MTD 936-0169

L-Wash. 3/8" Scr.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

51

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

52

MTD 756-0332

VPulley 7.0" O.D. (Transaxle)

Note: NLA

$

$

Not available

53

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

54

MTD 710-0180

Hex Scr. 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

55

MTD 13829

Belt Guard Ass'y.

Note: NLA

$

$

Not available

56

MTD 726-0193

Plastic Hose Clamp

Note: NLA

$

$

Not available
