GT 180H484K (80241) - Snapper 48" Garden Tractor, 18hp Steering & Front Axle Parts Parts Diagram

48" Garden Tractor, 18hp

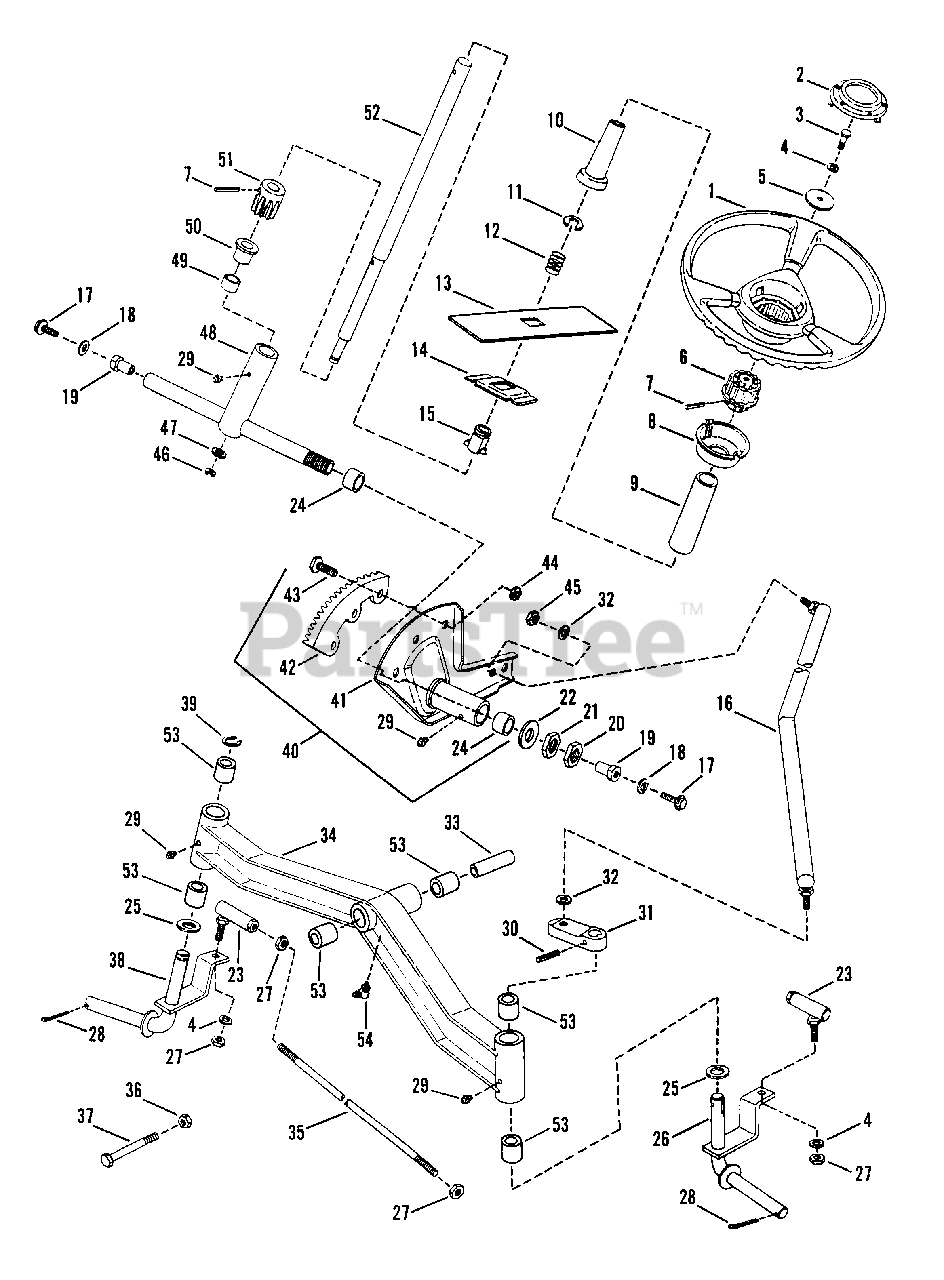

Steering & Front Axle Parts Parts Diagram

  • Title

1

Snapper 7018589

STEERING WHEEL
(Superseded to 7018589YP)

Note: Was 24370

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 7024371

CAP, Steering Wheel
(Superseded to 7024371YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7090603

BOLT, 3/8-16 x 7/8"

$2.99

$

In Stock, only 1 left!

0

4

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Snapper 7024374

WASHER, Flat

$

$

Not available

6

Snapper 7024373

ADAPTER, Steering Wheel

$

$

Currently unavailable

7

Snapper 7090842

ROLL-PIN, 1/4 x 1 1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 7024372

BASE, Steering Wheel

$

$

Currently unavailable

9

Snapper 7024375

COVER, Foam

$

$

Not available

10

Snapper 7018601

ACTUATOR, Steering Lock

$

$

Currently unavailable

11

Snapper 7014362

RING, Retaining

$

$

Not available

12

Snapper 7014402

SPRING, Actuator
(Superseded to 7014402YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7014430

COVER, Slide

$

$

Not available

14

Snapper 7032272

RISER, Steering Lock
(Superseded to 7032272YP)

$38.99

$

Usually ships in 2-12 days

0

15

Snapper 7018583

BUSHING, Steering Lock
(Superseded to 7018583YP)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 7019724

DRAG-LINK

Note: Was 28691

$

$

Not available

17

Snapper 7090793

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

18

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7014358

PIVOT
(Superseded to 7014358YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

21

Snapper 7090281

NUT, 3/4-16 Hex

$

$

Not available

22

Snapper 7090863

WASHER, 3/4 SAE Flat
(Superseded to 7090863YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

24

Snapper 7012706

BEARING, Sleeve, .750" Long
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

25

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7041240

KING-PIN, Left Side

Note: (33" Cutting Deck)

$

$

Not available

Snapper 7041242

KING-PIN, Left Side

Note: (42" & 48" Cutting Decks)

$

$

Not available

27

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

29

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

30

Snapper 7090842

ROLL-PIN, 1/4 x 1 1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7018621

ARM, Steering
(Superseded to 7018621YP)

$12.99

$

Usually ships in 2-12 days

0

32

Snapper 7090254

WASHER, 1/2 Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7021882

JOURNAL, Axle
(Superseded to 7021882YP)

$17.99

$

Usually ships in 2-12 days

0

34

Snapper 7053074

ASSEMBLY, Front Axle

Note: (Incl. 6 item 53, 2 item 29, & 1 item 54)(Series 5 Shown)(33,42,48)

$

$

Not available

Snapper 7057366

ASSEMBLY, Front Axle

Note: (Includes 6 item 24 & 3 item 29)(Series 4 - Not Shown)

$

$

Not available

35

Snapper 7014403

TIE-ROD

$

$

Currently unavailable

36

Snapper 7090393

NUT, 1/2-20 Hex Lock
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7090826

SCREW, 1/2-20 x 4" Hex Head Cap

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7041241

KING-PIN, Right Side

Note: (33" Cutting Deck)

$

$

Not available

Snapper 7041243

KING-PIN, Right Side
(Superseded to 7041243YP)

Note: (42" & 48" Cutting Decks)

$60.99

$

Usually ships in 2-12 days

0

39

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7053977

ASSEMBLY, Steering Sector

Note: (Includes 2 item 24 & 1 item 29, & items 41 thru 44)

$

$

Not available

41

Snapper 7041781

WELDMENT, Steering Sector
(Superseded to 7041781YP)

$47.99

$

Usually ships in 2-12 days

0

42

Snapper 7019717

GEAR, Steering Sector
(Superseded to 7019717YP)

$59.99

$

Usually ships in 2-12 days

0

43

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

44

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

45

Snapper 7090265

NUT, 1/2-20 Hex

$

$

Currently unavailable

46

Snapper 7090870

RING, Retaining

$

$

Not available

47

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

48

Snapper 7057363

ASSEMBLY, Bearing Support

Note: (Includes items 49 & 50)

$

$

Currently unavailable

49

Snapper 7014435

BUSHING
(Superseded to 7014435YP)

$3.99

$

In Stock, only 2 left!

0

50

Snapper 7014436

FLANGE
(Superseded to 7014436YP)

$5.99

$

Usually ships in 2-12 days

0

51

Snapper 7018568

PINION, Steering

$

$

Not available

52

Snapper 7027646

SHAFT, Steering
(Superseded to 7027646YP)

$60.99

$

Usually ships in 2-12 days

0

53

Snapper 7015048

BEARING, Sleeve, 1.00" Long
(Superseded to 7015048YP)

Note: (Series 5)

$17.99

$

In Stock, only 1 left!

0

54

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

Note: (Series 5)

$7.99

$

In Stock, Qty 6

0
