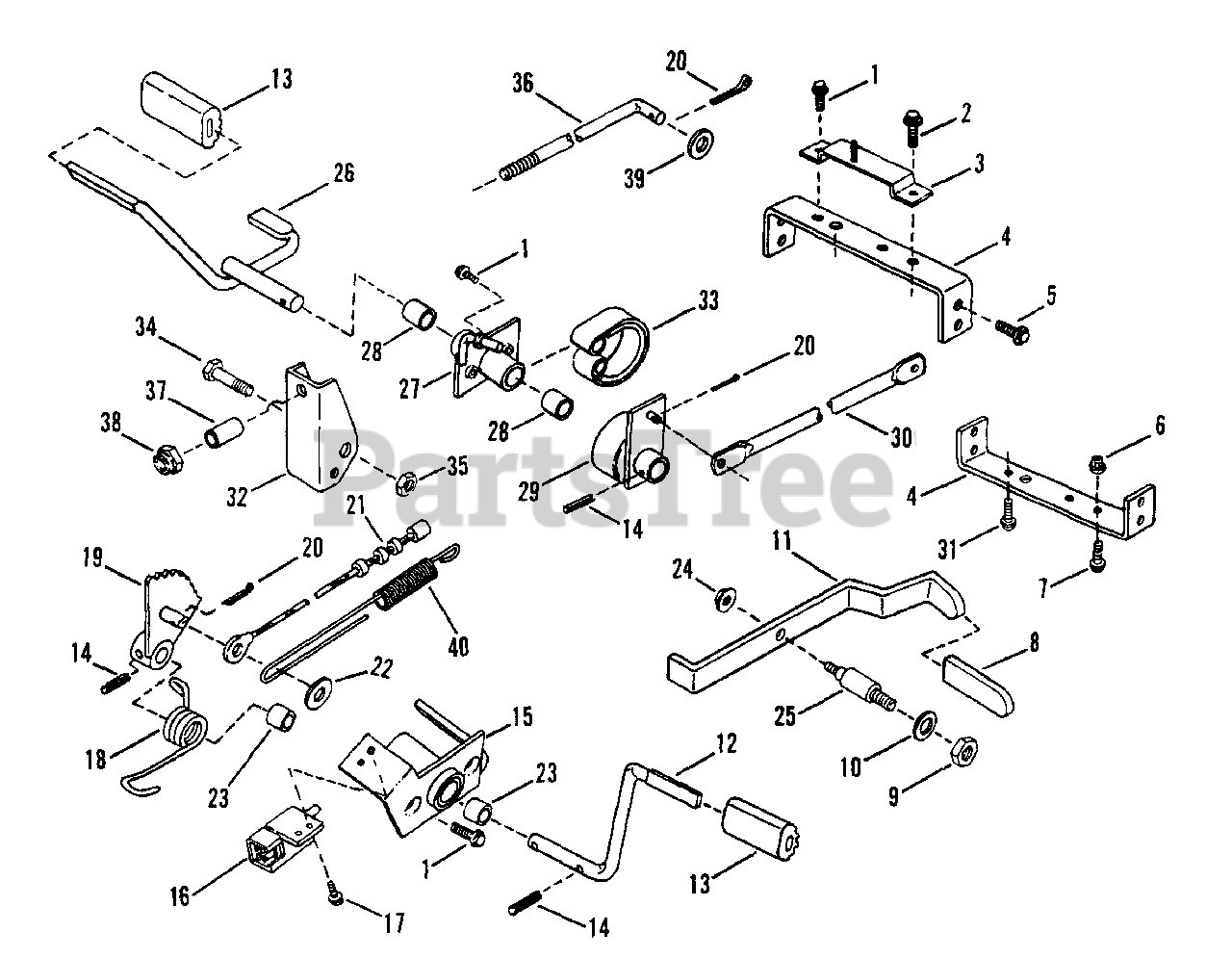

GT 180H484K (80241) - Snapper 48" Garden Tractor, 18hp Neutral Brake Controls Parts Diagram

48" Garden Tractor, 18hp

Neutral Brake Controls Parts Diagram

  • Title

1

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

2

Snapper 7090661

SCREW, 5/16-18 x 1" Hex Flng. Lk.

$

$

Not available

3

Snapper 7051909

BRACKET ASSM'Y., Cross Strap

$

$

Not available

4

Snapper 7038354

STRAP, Cross

$

$

Not available

5

Snapper 7090815

SCREW, 3/8-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

6

Snapper 7091619

NUT, 3/8-16 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7091580

SCREW, 3/8-16 x 1-3/4" Hex Flange Lock, Grade 5
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7014755

SLEEVE, Parking Brake
(Superseded to 7014755YP)

$

$

Not available

9

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7038142

LEVER, Parking Brake

$

$

Not available

12

Snapper 7036086

PEDAL, Neutral Brake
(Superseded to 7036086YP)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

14

Snapper 7013878

PIN, 3/16" x 1-1/4" Roll

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7053839

BRACKET, Pedal Pivot

Note: (Incl. 2 item 23)

$

$

Currently unavailable

16

Snapper 7023355

SWITCH, Neutral Brake Interlock
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

17

Snapper 7090896

SCREW, #10-24 x 1/2" H.W.H.S.T.
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

18

Snapper 7014752

SPRING, Neutral Brake
(Superseded to 7014752YP)

$9.49

$

Usually ships in 2-12 days

0

19

Snapper 7040514

ARM, Neutral Brake
(Superseded to 7040514YP)

$50.99

$

Usually ships in 2-12 days

0

20

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7015975

CABLE, Neutral Brake
(Superseded to 7015975YP)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7014435

BEARING, Sleeve
(Superseded to 7014435YP)

$3.99

$

In Stock, only 2 left!

0

24

Snapper 7091545

NUT, 1/4-20 Hex, Grade A
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, Qty 6

0

25

Snapper 7014754

STUD, Parking Brake

$

$

Currently unavailable

26

Snapper 7059920

ASSEMBLY, Control Pedal

$

$

Not available

27

Snapper 7051975

ASSEMBLY, Control Pedal Pivot
(Superseded to 7051975YP)

Note: (Includes 2 item 28)

$96.99

$

Usually ships in 2-12 days

0

28

Snapper 7015140

BEARING, DX
(Superseded to 7015140YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7040612

ASSEMBLY, Control Pedal Arm

$

$

Not available

30

Snapper 7038351

ROD, Speed Control

$

$

Currently unavailable

31

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

32

Snapper 7038657

LEVER, Friction Control

$

$

Currently unavailable

33

Snapper 7052886

BAND, Brake Assembly
(Superseded to 7503086YP)

Note: Was 57307

$35.99

$

In Stock, only 1 left!

0

34

Snapper 7090112

BOLT, 1/4-28 x 2" Hex Head, Grade 5
(Superseded to 7090112YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7090303

NUT, 1/4-28 Hex, Tog Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 6

0

36

Snapper 7019291

ROD, Brake

$

$

Not available

37

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

38

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7016314

WASHER, Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

40

Snapper 7019292

SPRING

$

$

Not available
