GT 180H484K (80241) - Snapper 48" Garden Tractor, 18hp 48" Cutting Deck, Belts, Pulleys (Cable Hung) Parts Diagram

48" Garden Tractor, 18hp

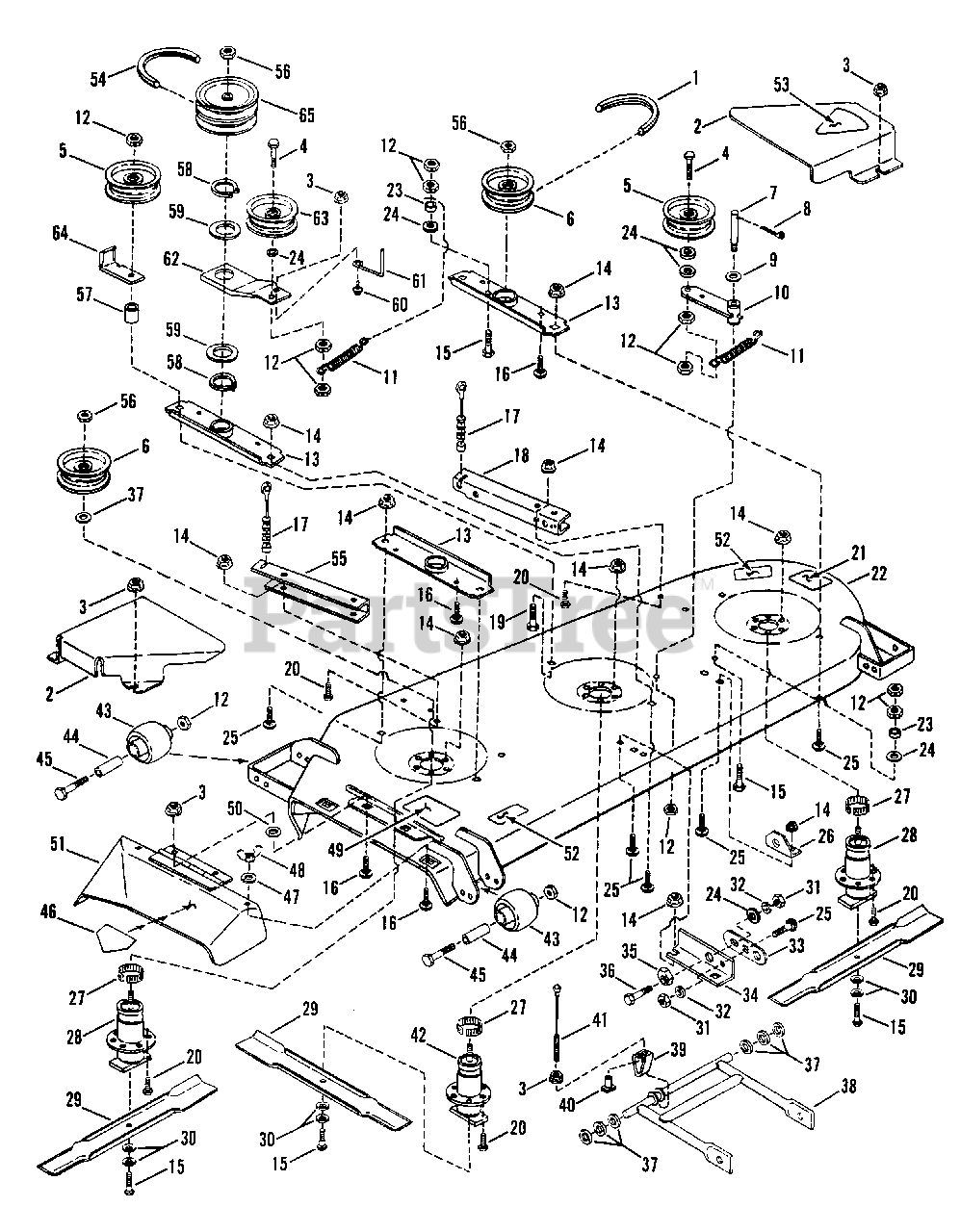

48" Cutting Deck, Belts, Pulleys (Cable Hung) Parts Diagram

  • Title

Snapper 7061846

48" Replacement Deck

Note: Was 60832

$

$

Currently unavailable

1

Snapper 7024497

V-BELT, 48" Cutting Deck
(Superseded to 7024497YP)

Note: AA105

$56.99

$

In Stock, only 1 left!

0

2

Snapper 7035054

GUARD, Pulley
(Superseded to 7035054YP)

$39.99

$

Usually ships in 2-12 days

0

3

Snapper 7091601

NUT, 5/16-18 Hex Fl. Lk., Gr. 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7090167

SCREW, 3/8-24 x 2" H.H.C., Gr. 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7018651

PULLEY, Idler, V, 4-1/2" O.D.
(Superseded to 7018651YP)

$42.99

$

In Stock, only 1 left!

0

6

Snapper 7014544

PULLEY, Idler, Flat, 4-3/4" O.D.
(Superseded to 7014544SM)

$58.99

$

In Stock, only 1 left!

0

7

Snapper 7035816

STUD, Idler
(Superseded to 7035816YP)

Note: Was 14408

$100.99

$

Usually ships in 2-12 days

0

8

Snapper 7091598

COTTER-PIN, 1/8 x 1"
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7090183

WASHER, 5/8 SAE Flat
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7051475

ASSEMBLY, Idler Arm
(Superseded to 7051475YP)

$102.99

$

Usually ships in 2-12 days

0

11

Snapper 7014513

SPRING
(Superseded to 7014513YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

13

Snapper 7038078

BRACE, Spindle
(Superseded to 7038078YP)

$26.99

$

In Stock, only 1 left!

0

14

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Gr.5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

16

Snapper 7090799

BOLT, 5/16-18 x 5/8 Carr. Gr. 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7016845

CABLE, Lift
(Superseded to 7016845YP)

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 7033118

SUPPORT, Cable, Left Side (Rear)
(Superseded to 7033118YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7090169

SCREW, 3/8-24 x 2-1/2" H.H.C., Gr.5

$

$

Not available

20

Snapper 7091588

BOLT, 3/8-16 x 3/4" Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

21

Snapper 7014852

DECAL-CAUTION
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 3 left!

0

22

Snapper 7049961

DECK, 48" Cutter

$

$

Not available

23

Snapper 7014527

SPACER
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7091547

BOLT, 3/8-16 x 3/4" S.N.C., Gr.2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7032297

BRACKET, Front Hanger (Left Side)

$

$

Not available

27

Snapper 7012670

RING, Tolerance, 3/4"
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

28

Snapper 7051473

ASSEMBLY, Spindle
(Superseded to 7051473YP)

Note: (See "41"/42" Cutting Deck (Chain Hung)" Illustration and Parts List For Breakdown)

$162.99

$

Usually ships in 2-12 days

0

29

Snapper 7019733

BLADE, 16.5"
(Superseded to 7019733BMYP)

$

$

Not available

30

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

31

Snapper 7091302

NUT, 3/8-16 Hex, Gr. 5
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

33

Snapper 7032432

LINK, Adjustment

$

$

Not available

34

Snapper 7038181

BRACKET, Front Hanger (Right Side)
(Superseded to 7038181YP)

$21.99

$

Usually ships in 2-12 days

0

35

Snapper 7015012

RING, Adjustment
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7091304

SCREW, 3/8-16 x 1" H.H.C., Gr. 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

37

Snapper 7010935

WASHER, 3/4 I.D.
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7049724

ARM, Front Lift

$

$

Not available

39

Snapper 7038043

BRACKET, Front Lift Arm
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

40

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

41

Snapper 7015629

CABLE, Front Lift
(Superseded to 7015629YP)

$

$

Not available

42

Snapper 7051528

ASSEMBLY, Spindle

Note: (See "Mule Drive Assembly" Illustration and Parts List For Breakdown)

$

$

Not available

43

Snapper 7019190

WHEEL, Gage, Front
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

44

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

45

Snapper 7091532

SCREW, 3/8-24 x 3-3/4", Gr. 5
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

46

Snapper 7013010

DECAL-DANGER
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

47

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

48

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

49

Snapper 7014852

DECAL- CAUTION, Deflector in Place
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

50

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes item 46)

$159.99

$

Usually ships in 2-12 days

0

52

Snapper 7012929

FOOTPAD

$

$

Not available

53

Snapper 7024431

DECAL - 48 Inch
(Superseded to 7024431YP)

$11.99

$

Usually ships in 2-12 days

0

54

Snapper 7014801

V-BELT, Drive, A92
(Superseded to 7014801YP)

$65.99

$

Usually ships in 2-12 days

0

55

Snapper 7033119

SUPPORT, Cable, Right Side (Rear)
(Superseded to 7033119YP)

$20.99

$

Usually ships in 2-12 days

0

56

Snapper 7090820

NUT, 3/4-16 Hex Jam Lock
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

57

Snapper 7021845

SPACER
(Superseded to 7016050YP)

$90.99

$

Usually ships in 2-12 days

0

58

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 2 left!

0

59

Snapper 7014795

WASHER, Plastic

$

$

Not available

60

Snapper 7091508

BOLT, 5/16-18 x 3/4" S.N.C., Gr. 5
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 12

0

61

Snapper 7014410

GUIDE, Belt
(Superseded to 7014410YP)

$9.49

$

In Stock, only 1 left!

0

62

Snapper 7038156

ARM, Idler, Center
(Superseded to 7038156YP)

$17.99

$

Usually ships in 2-12 days

0

63

Snapper 7023966

PULLEY, Idler, Flat, 4.8" O.D.
(Superseded to 7023966YP)

$48.99

$

Usually ships in 2-12 days

0

64

Snapper 7032368

GUIDE, Belt

$

$

Not available

65

Snapper 7014545

PULLEY, Double, 5" O.D. & 4-3/4" O.D.
(Superseded to 7014545YP)

$106.99

$

In Stock, only 1 left!

0
