GT 180H415K (80383) - Snapper 41" Garden Tractor, 18hp Spindle Assembly Parts Diagram

41" Garden Tractor, 18hp

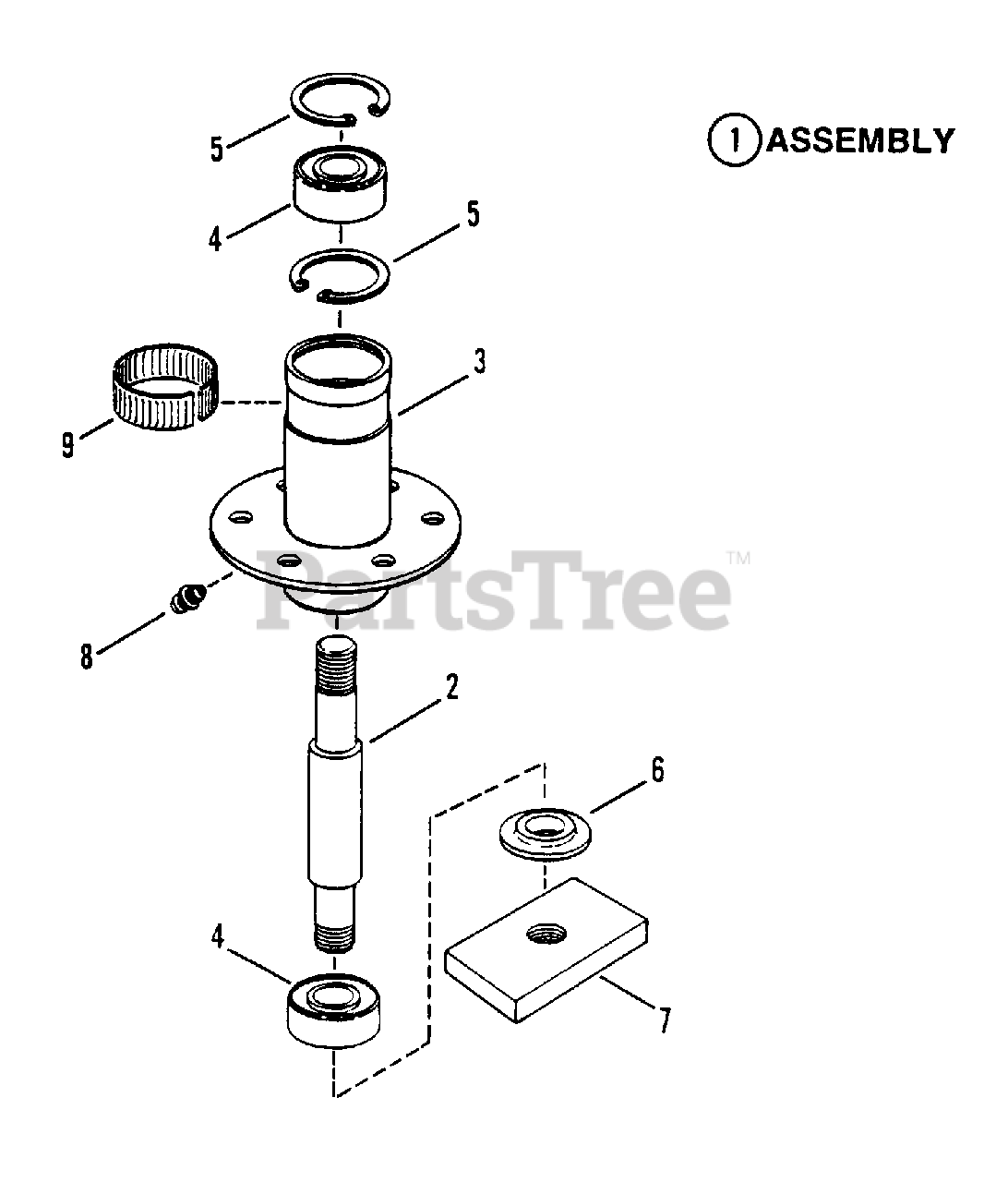

Spindle Assembly Parts Diagram

  • Title

1

Snapper 7051473

ASSEMBLY, Spindle
(Superseded to 7051473YP)

Note: (Includes items 2A, 3A, & 4 thru 8) (42" & 48" Outboard)

$162.99

$

Usually ships in 2-12 days

0

Snapper 7051528

ASSEMBLY, Spindle

Note: (Includes items 2B, 38, & 4 thru 8) (48" Center)

$

$

Not available

2

Snapper 7027632

SPINDLE
(Superseded to 7027632YP)

Note: (42" & 48" Outboard)

$52.99

$

In Stock, only 1 left!

0

Snapper 7027641

SPINDLE

Note: (48" Center)

$

$

Not available

3

Snapper 7051472

HOUSING, Spindle
(Superseded to 7051472YP)

Note: (42" & 48" Outboard)

$92.99

$

Usually ships in 2-12 days

0

Snapper 7051527

HOUSING, Spindle
(Superseded to 7051527YP)

Note: (48" Center)

$45.99

$

Usually ships in 2-12 days

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

7

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

Note: (Order Separately)

$8.49

$

In Stock, Qty 6

0
