GT 180H415K (80383) - Snapper 41" Garden Tractor, 18hp Rear Wheels Parts Diagram

41" Garden Tractor, 18hp

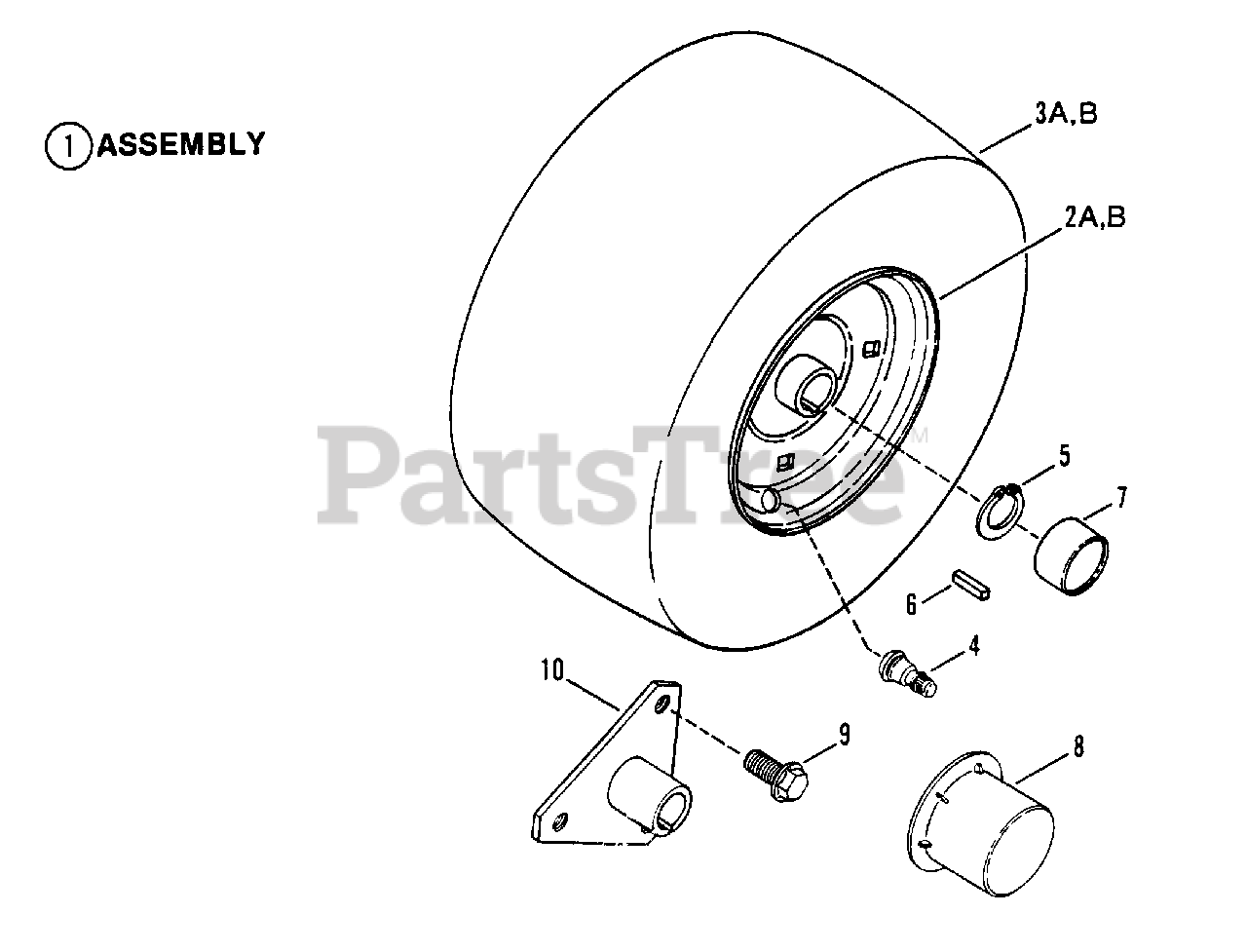

Rear Wheels Parts Diagram

  • Title

1

Snapper 7052339

ASSEMBLY, Rear Tire & Rim

Note: (Includes items 2A, 3A, & 4) (33" Cutting Deck)

$

$

Currently unavailable

Snapper 7052338

ASSEMBLY, Rear Tire & Rim

Note: (Includes items 2B, 3B, & 4) (42" & 48" Cutting Decks)

$

$

Currently unavailable

2A

Snapper 7017441

RIM, 10 x 5

Note: (33" Cutting Deck)

$

$

Currently unavailable

2B

Snapper 7017442

RIM, 12 x 9

Note: (42" & 48" Cutting Decks)

$

$

Currently unavailable

3A

Snapper 7015326

TIRE, 21 x 7.00 x 10

Note: (33" Cutting Deck)

$

$

Currently unavailable

3B

Snapper 7019675

TIRE, 23 x 10.50 x 12

Note: (42" & 48" Cutting Decks)

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7015979

RING, Retaining

$

$

Not available

6

Snapper 7010210

KEY, 1/4 x 1/4 x 2" Square
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

7

Snapper 7011022

COVER, Dust
(Superseded to 7011022YP)

Note: (42" & 48" Cutting Decks)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7015266

HUB-CAP
(Superseded to 7015266YP)

Note: (33" Cutting Deck)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

Note: Was 90367 (33" Cutting Deck)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7023344

HUB, Rear Wheel

Note: (33" Cutting Deck)

$

$

Not available
