GT 180H334K (80239) - Snapper 33" Garden Tractor, 18hp Mule Drive Assembly Parts Diagram

33" Garden Tractor, 18hp

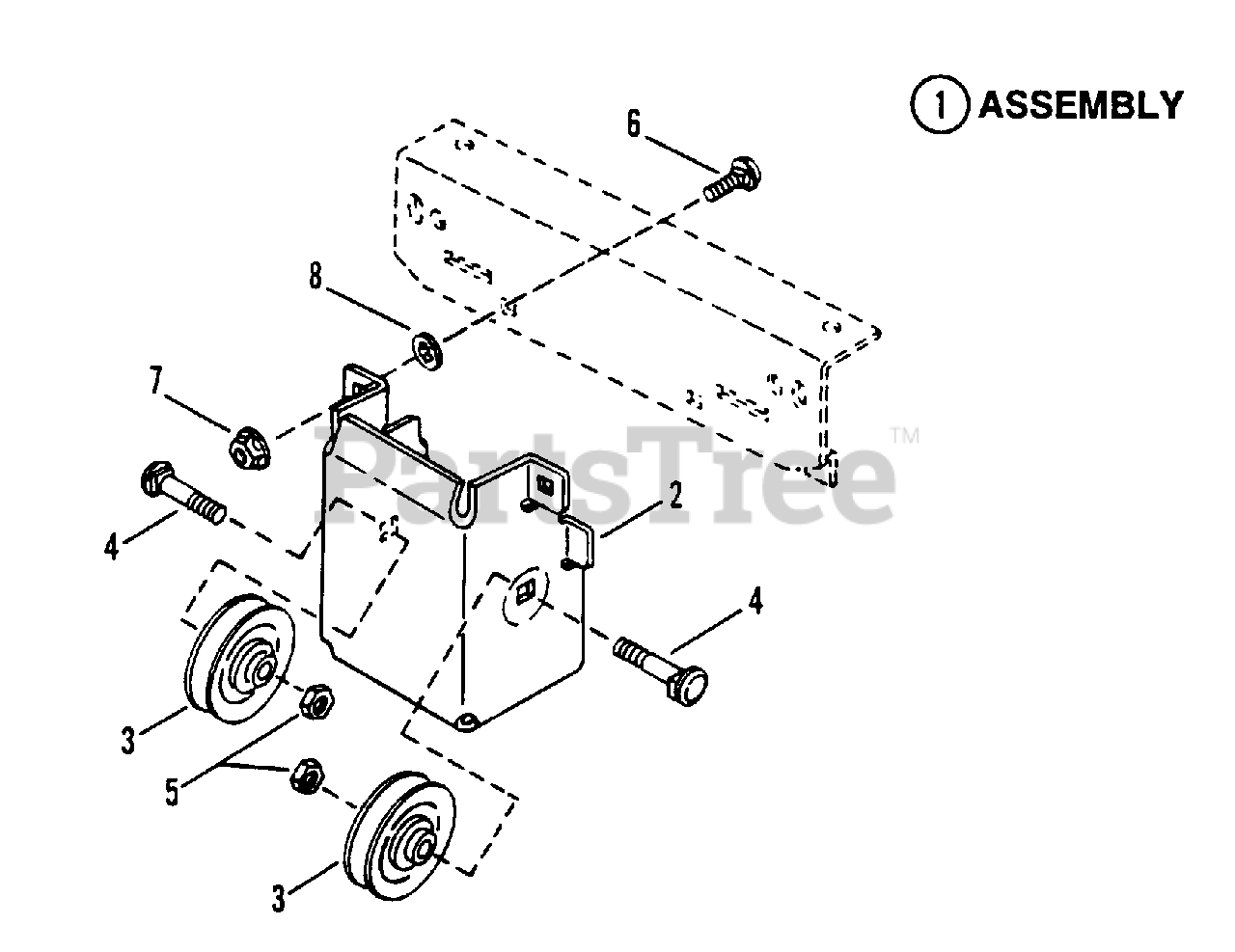

Mule Drive Assembly Parts Diagram

  • Title

1

Snapper 7060636

ASSEMBLY, Mule Drive

Note: (Includes items 2 thru 8)

$

$

Currently unavailable

2

Snapper 7047860

BRACKET, Mule Drive
(Superseded to 7047860YP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper 7018651

PULLEY, Belt Idler
(Superseded to 7018651YP)

$42.99

$

In Stock, only 1 left!

0

4

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Short Neck Carriage, Grade 2
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7091299

NUT, 3/8-16 Hex
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage, Grade 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7091619

NUT, 3/8-16 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0
