GT 180 FR - Electrolux/AYP Garden Tractor MOWER LIFT Parts Diagram

Garden Tractor

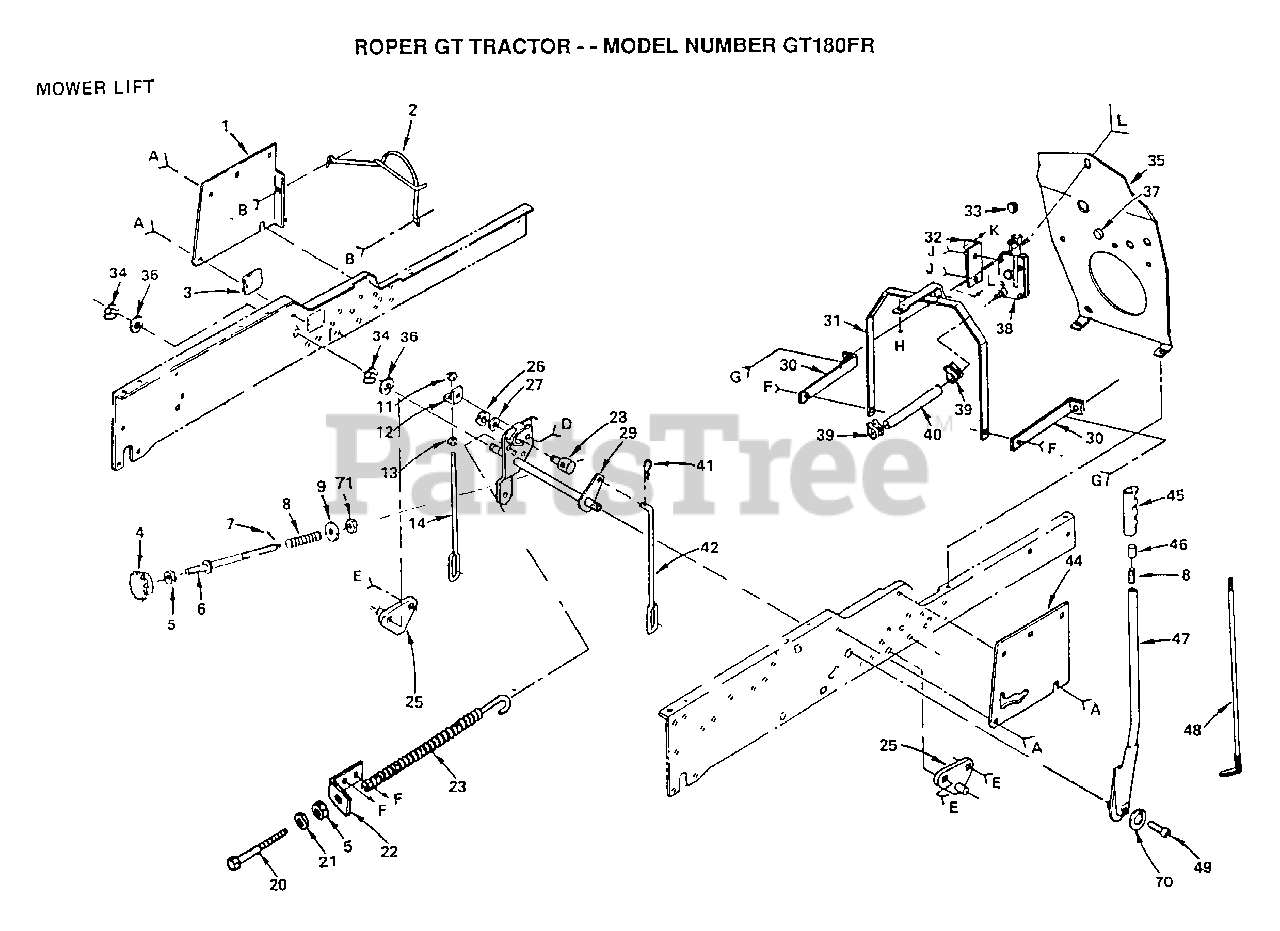

MOWER LIFT Parts Diagram

  • Title
1

Electrolux/AYP 121044X

SUB= 532121046

$

$

Not available

2

Electrolux/AYP 110908X

SUB= 126651X

$

$

Not available

3

Electrolux/AYP 105505X

SUB= 121794X

$

$

Not available

4

Electrolux/AYP 121891X

HDLE ADJ LIFT
(Superseded to 532121891)

$

$

Not available

5

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 110811X

ROD ADJ. T
(Superseded to 532110811)

$

$

Not available

7

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

8

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

11

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 7594J

BRACKET T
(Superseded to 532007594)

$

$

Not available

13

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 7596J

LINK-LIFT MOW T
(Superseded to 532007596)

$

$

Not available

20

Electrolux/AYP 5328J

BOLT-ADJ SPRING T
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 5329J

SUB= 143363

$

$

Not available

23

Electrolux/AYP 674A247

SUB= 918674A247
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 105501X

SUSP BRACKET T
(Superseded to 532105501)

$

$

Not available

26

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

29

$

$

Not available

$

$

Not available

31

Electrolux/AYP 106872X

SUB= 532128141

$

$

Not available

32

$

$

Not available

33

$

$

Not available

34

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 110948X

HEAT SHIELD T

$

$

Not available

36

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 106351X

PLUG GT
(Superseded to 583650601)

$2.99

$

Usually ships in 3-10 days

0

38

$

$

Not available

39

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

40

$

$

Not available

41

Murray 4939M

SUB= 85902

$

$

Not available

42

Electrolux/AYP 105503X

LIFT LINK RH T
(Superseded to 532105503)

$

$

Not available

44

Electrolux/AYP 121043X

SUB= 532121045

$

$

Not available

45

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 105723X

SUB= 125925X

$

$

Not available

47

Electrolux/AYP 121002X

SUB= 123096X

$

$

Not available

48

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available
