GT 180 CT - Electrolux/AYP Garden Tractor FRAME, FENDER AND DRAWBAR Parts Diagram

Garden Tractor

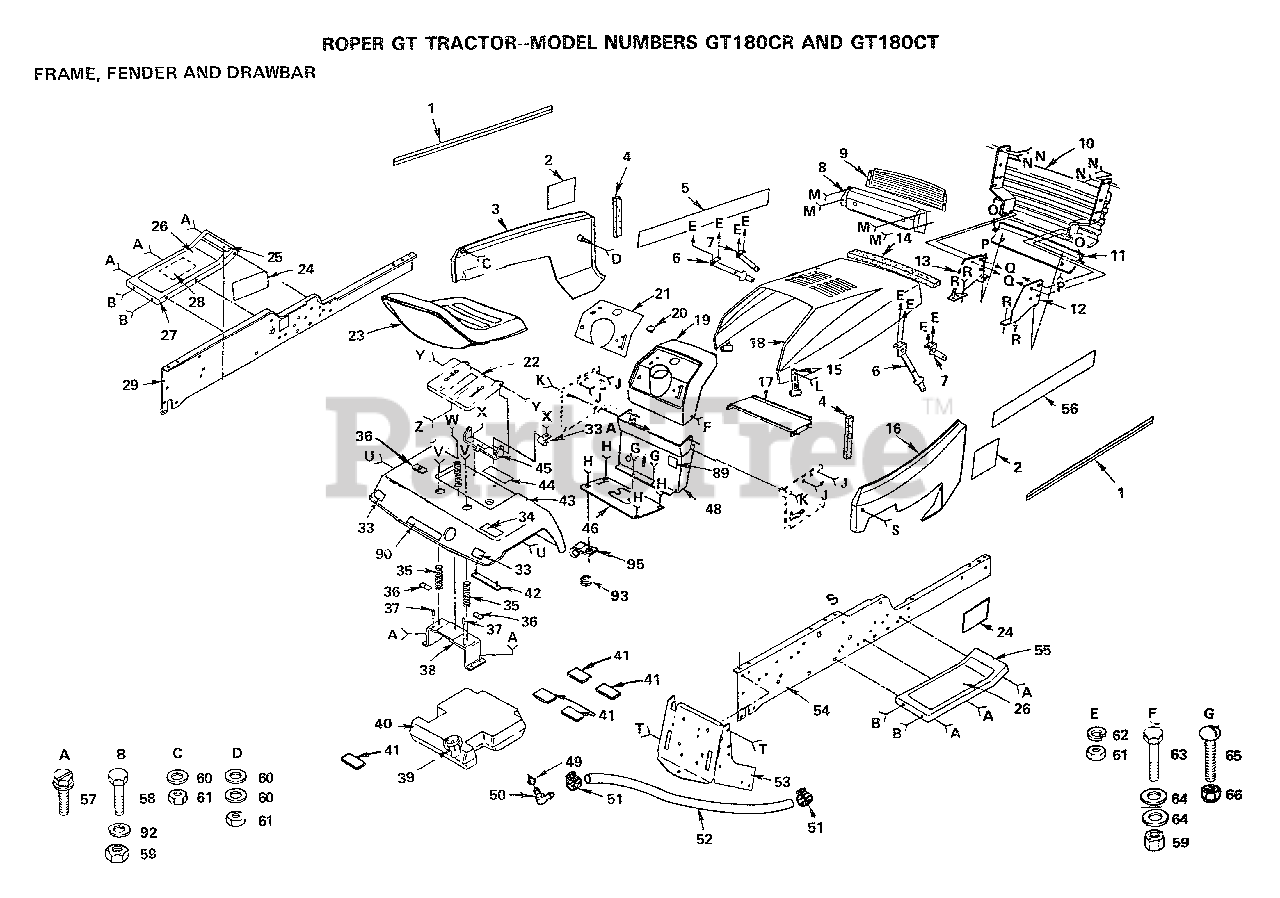

FRAME, FENDER AND DRAWBAR Parts Diagram

  • Title

1

Electrolux/AYP 104646X

NLA

$

$

Not available

2

Electrolux/AYP 104639X

NLA

$

$

Not available

3

Electrolux/AYP 108372X367

SUB= 150302X505

$

$

Not available

4

Electrolux/AYP 105036X

FOAM STRIP HYT

$

$

Not available

5

Electrolux/AYP 104643X

NLA

$

$

Not available

6

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

7

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

8

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$

$

Not available

9

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 104628X

GRILL GT

$60.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 104634X367

SUB= 105419X388

$

$

Not available

12

Electrolux/AYP 105288X

SUPPORT-GRILL

$

$

Not available

13

Electrolux/AYP 105287X

SUPPORT-GRILL

$

$

Not available

14

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

15

Electrolux/AYP 100225L

SUB= 109808X
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

16

Electrolux/AYP 108371X367

SUB= 140679X505

$

$

Not available

17

Electrolux/AYP 7985J

SUB= 140229

$

$

Not available

18

Electrolux/AYP 108370X367

SUB= 150301X505

$

$

Not available

19

Electrolux/AYP 106796X

DASHBOARD T

$83.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

21

Electrolux/AYP 106797X

DECAL-DASHBOARD

$

$

Not available

21

Electrolux/AYP 108697X

DECAL-DASHBOARD

$

$

Not available

22

Electrolux/AYP 109866X

SEAT PAN T
(Superseded to 583658401)

$36.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110057X

SUB= 164945

$

$

Not available

24

Electrolux/AYP 104640X

NLA

$

$

Not available

25

Electrolux/AYP 4900J

DECAL T

$

$

Not available

25

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

26

Electrolux/AYP 109864X

SUB= 108256X

$

$

Not available

27

Electrolux/AYP 105465X367

SUB= 145244X428

$

$

Not available

28

Electrolux/AYP 106868X

DECAL T
(Superseded to 532106868)

$

$

Not available

29

Electrolux/AYP 105504X

SUB= 151630

$

$

Not available

32

Electrolux/AYP 74760816

SUB= 74780816

$

$

Not available

33

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

33A

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

34

Electrolux/AYP 7178J

DECAL-CAUTION

$

$

Not available

34

Electrolux/AYP 101893X

NLA

$

$

Not available

35

Electrolux/AYP 105512X

SPRING LT

$

$

Not available

36

Electrolux/AYP 105514X

"CLAMP, SPRING LT"
(Superseded to 583646001)

$2.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

39

Electrolux/AYP 109462X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

41

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

42

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

43

Electrolux/AYP 109593X367

NLA

$

$

Not available

44

Electrolux/AYP 106974X

SUB= 133796

$

$

Not available

44

Electrolux/AYP 108658X

SUB= 120822X

$

$

Not available

45

Electrolux/AYP 110378X

BRACKET T
(Superseded to 583659401)

$6.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 106042X

SUB= 106042X012

$

$

Not available

48

Electrolux/AYP 104608X

DASH ASSEMBLY
(Superseded to 532104608)

$

$

Not available

49

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

51

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

52

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

53

Electrolux/AYP 7982J

SUB= 140506

$

$

Not available

54

Electrolux/AYP 105506X

SUB= 150383

$

$

Not available

55

Electrolux/AYP 105464X367

SUB= 145243X505

$

$

Not available

56

Electrolux/AYP 104644X

NLA

$

$

Not available

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

58

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

62

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

63

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

66

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

87

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

89

Electrolux/AYP 8497J

DECAL, INSTRUCTION

$

$

Not available

89

Electrolux/AYP 101895X

NLA

$

$

Not available

90

Electrolux/AYP 104810X

NLA

$

$

Not available

91

Electrolux/AYP 109867X

SPRING T
(Superseded to 583658501)

$60.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

93

Electrolux/AYP 109641X

GROMMET T
(Superseded to 583657901)

$2.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 2 left!

0

95

Electrolux/AYP 4171R

CLIP T

$

$

Not available
