GT 180 (954000372-D) - Husqvarna Garden Tractor (1992-11) Ground Drive Parts Diagram

Garden Tractor

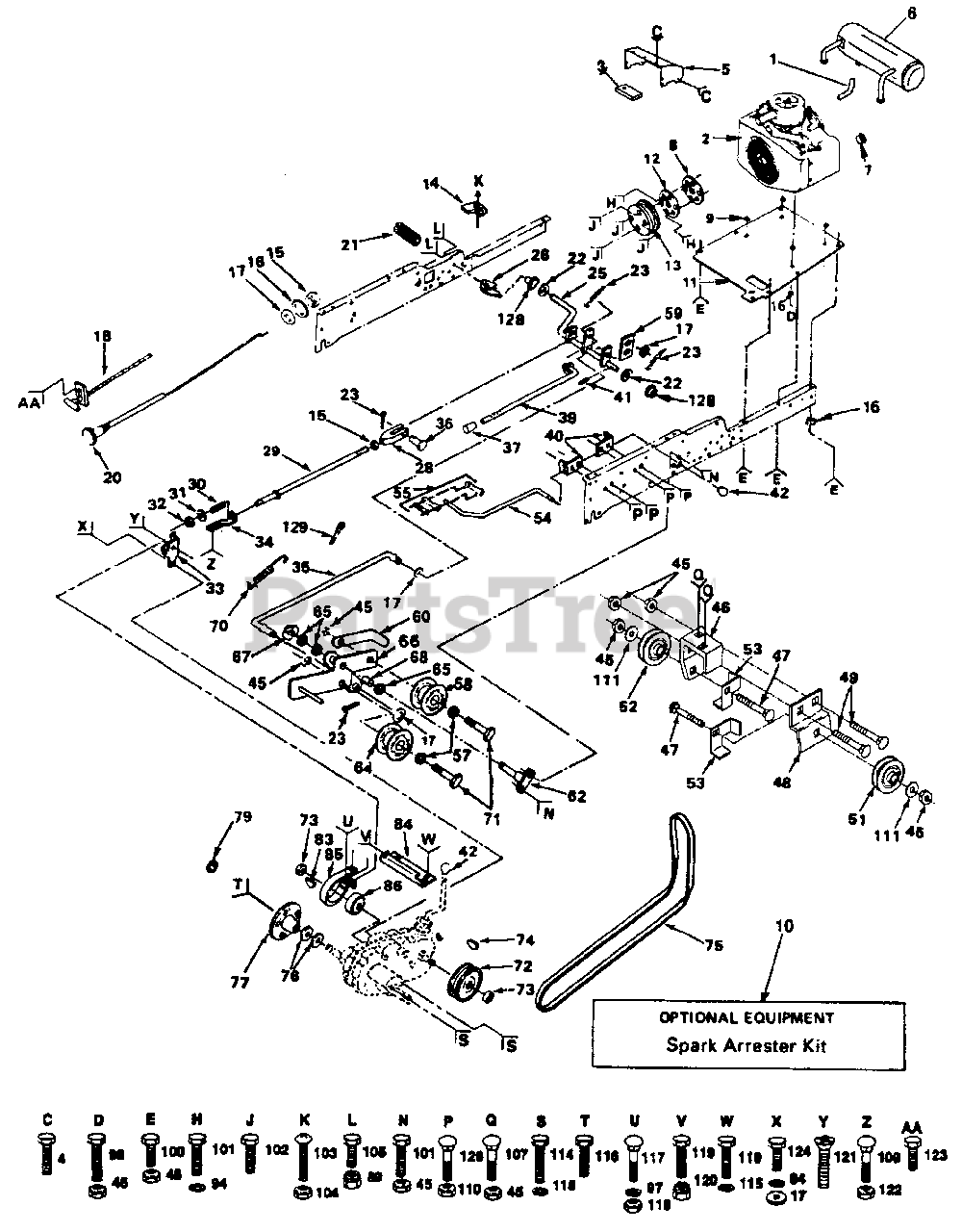

Ground Drive Parts Diagram

  • Title
1

Husqvarna 532126086

Exhaust Tube Outlet

$

$

Not available

2

Husqvarna 532124276

Engine-18HP Kohler M18QS Type 24644

$

$

Currently unavailable

3

Husqvarna 532126350

Duct, Lower Assembly

$

$

Not available

4

Husqvarna 817720408

Screw, Hex Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124508

Duct, Exhaust, Upper

$

$

Not available

6

Husqvarna 532124532

Muffler, Exhaust

$

$

Not available

7

Plug, Oil Drain

Note: (Order from engine manufacturer)

$

$

Not available

8

Husqvarna 532133692

Chaff Guard

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532132922

Spark Arrester Kit
(Superseded to 532674380)

$

$

Not available

11

Husqvarna 532110867

Base, Engine

$

$

Not available

12

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121355

PUlley, Ground Drive

$

$

Not available

14

Husqvarna 532005304

Actuator, Switch, Interlock
(Superseded to 532178575)

$

$

Not available

15

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 811050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532132746

Control, Throttle

$

$

Not available

20

Husqvarna 532132780

Control, Choke

$

$

Not available

21

Husqvarna 532123533

Cover, Pedal

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

25

Husqvarna 532104375

Shaft, Foot Pedal

$

$

Not available

26

Husqvarna 532104601

Bracket, Interlock

$

$

Not available

$

$

Not available

29

Husqvarna 532005308

Rod, Brake

$

$

Not available

30

Husqvarna 532007241

Spring, Compression

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 873530600

Locknut 3/8-24
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532124692

Bracket, Brake
(Superseded to 532677637)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532124695

Guide, Rod, Brake
(Superseded to 532007229)

$

$

Not available

35

Husqvarna 532101356

Rod, Clutch

$

$

Not available

36

Husqvarna 532005102

Pin, Clevis

$

$

Not available

37

Husqvarna 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532136284

Rod, Parking Brake

$

$

Not available

40

Husqvarna 532105598

Bracket, Rod, Shift

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532005142

Pin, Roll 3/16 x 1-1/4

$

$

Not available

$

$

Not available

45

Husqvarna 873680600

Locknut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121063

Bracket, V-Pulley, Drive, Mule
(Superseded to 532139995)

$

$

Not available

47

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532122825

Bracket, Idler, Flat

$

$

Not available

49

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

51

Husqvarna 532102403

Idler, Flat

$39.99

$

In Stock, only 1 left!

0

52

Husqvarna 532101344

Pulley, Idler

$45.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532122824

Keeper, Belt

$

$

Not available

54

Husqvarna 532122253

Rod, Shift, Hi-Lo

$14.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532122268

Connecting Link, Spring Clip

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 819131413

Washer 13/32 x 7/8 x 13 Gauge

$2.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532104360

Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

59

Husqvarna 532121358

Retainer, Spring

$

$

Not available

60

Husqvarna 532121360

Retainer, Belt

$2.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532101358

Bracket Assembly, Clutch

$

$

Not available

64

Husqvarna 532121361

Idler, Grooved
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

65

Husqvarna 532000207

Washer, Hardened

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532121356

Bracket, Clutch w/Bearing

Note: (Incl. Key No. 68)

$

$

Not available

67

Husqvarna 812000039

Klip, Ring

$6.49

$

In Stock, Qty 9

0

68

Husqvarna 532105706

Bearing, Idler

$7.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532121357

Spring, Extension

$

$

Not available

71

Husqvarna 874760628

Bolt, Hex 3/8-16 x 1-3/4
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

72

Husqvarna 532137524

Pulley, Transaxle

$

$

Not available

73

Husqvarna 532009204

Locknut 1/2-20

$

$

Not available

74

Husqvarna 532124708

Key, Woodruff 3/16 x 5/8
(Superseded to 532009858)

$

$

Not available

$51.99

$

In Stock, only 2 left!

0

76

Husqvarna 532007563

Washer, Thrust, Axle

$8.99

$

In Stock, only 1 left!

0

77

Husqvarna 532135758

Bushing Assembly and Wheel Hub
(Superseded to 532634692)

$42.99

$

Usually ships in 3-10 days

0

79

Husqvarna 812000034

Klip, Ring

$

$

Not available

83

Husqvarna 532125096

Key, Woodruff #9 (3/16 x 3/4)

$9.49

$

In Stock, only 1 left!

0

84

Husqvarna 532120404

Bracket, Support, Transaxle
(Superseded to 532156404)

$

$

Not available

85

Husqvarna 532101122

Band, Brake

$

$

Not available

86

Husqvarna 532000214

Drum, Brake

$

$

Not available

89

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

94

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

97

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

98

Husqvarna 874780624

Bolt, Hex 3/8-16 x 1-3/4
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

100

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

101

Husqvarna 874780616

Bolt, Hex Head 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 817190516

Screw, Hex 5/16-18 x 1

$

$

Not available

103

Husqvarna 874321016

Screw, Fin #10-24 x 1

$

$

Not available

104

Husqvarna 873631000

Locknut #10-24
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

105

Husqvarna 874760412

Bolt, Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

107

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4 Grade 5

$

$

Not available

109

Husqvarna 872110506

Bolt, Carriage 5/16-18 x 3/4

$7.49

$

In Stock, Qty 19

0

110

Husqvarna 873680500

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

111

Husqvarna 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

114

Husqvarna 874760720

Bolt, Hex 7/16-14 x 1-1/4
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

115

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

116

Husqvarna 532001304

Bolt, Hub
(Superseded to 532140080)

$3.99

$

Usually ships in 3-10 days

0

117

Husqvarna 872140405

Bolt, Carriage 1/4-20 x 5/8

$7.49

$

In Stock, Qty 8

0

118

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

119

Husqvarna 874760716

Bolt, Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873680700

Nut, Crownlock 7/16-14

$2.99

$

Usually ships in 3-10 days

0

121

Husqvarna 874370612

Screw, Mach. Undrcut. Flat Head 3/8-16 x 3/4

$

$

Not available

122

Husqvarna 532124949

Locknut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

123

Husqvarna 817720410

Screw, Hex 1/4-20 x 1/2
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

124

Husqvarna 874760614

Bolt, Hex 3/8-16 x 7/8
(Superseded to 874760616)

$6.49

$

Usually ships in 3-10 days

0

126

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

128

$

$

Not available

129

UNKNOWN

$

$

Not available
