GT 180 (954000372-C) - Husqvarna Garden Tractor (1992-08) Steering Parts Diagram

Garden Tractor

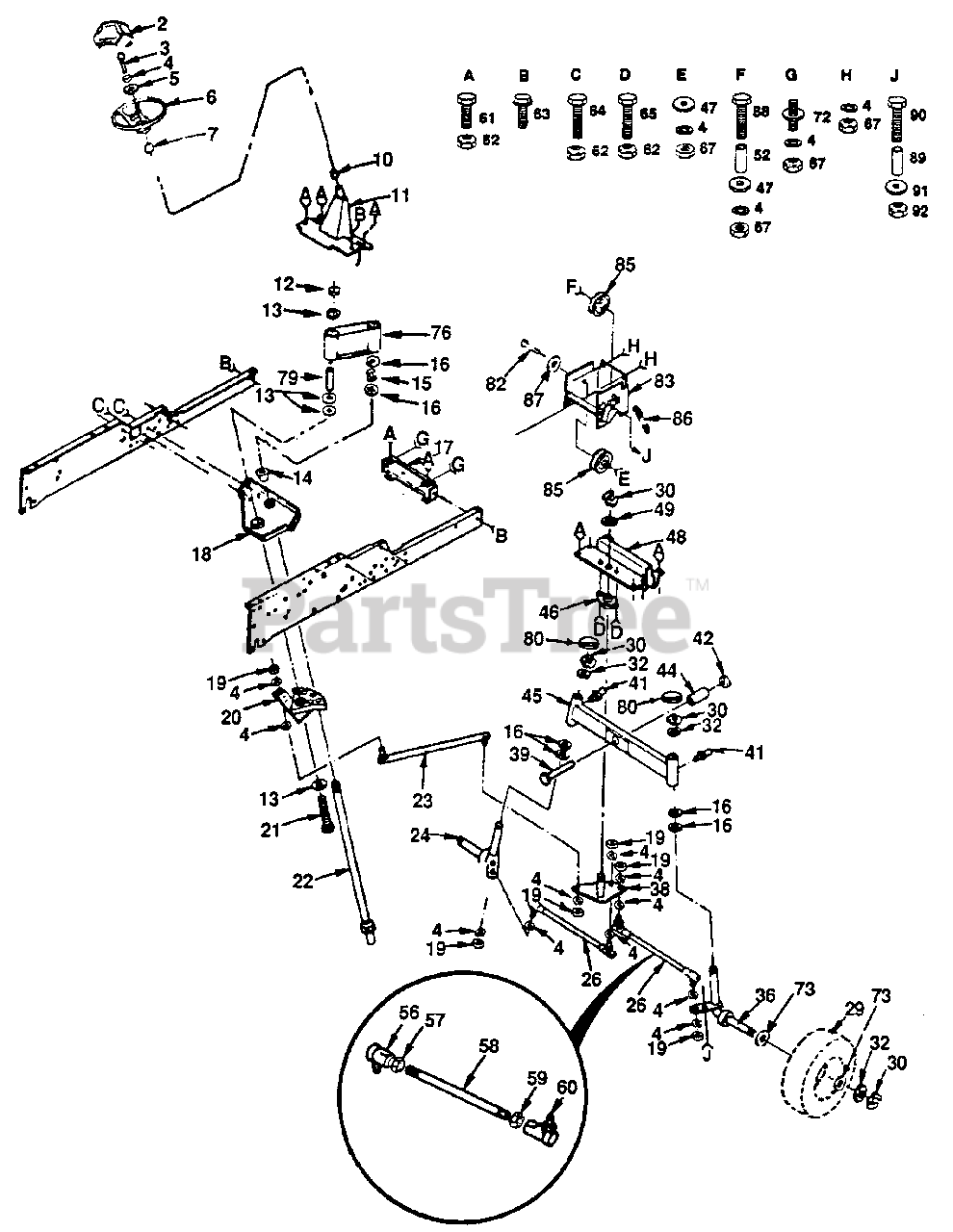

Steering Parts Diagram

  • Title

2

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

3

Husqvarna 874780616

Bolt, Hex 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

5

Husqvarna 819133808

Washer 13/32 x 2-3/8 x 8 Gauge
(Superseded to 819133812)

$

$

Not available

6

Husqvarna 532124415

Wheel, Steering

$

$

Not available

7

Husqvarna 532100711

Adapter, Steering
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

10

Husqvarna 532009038

Bearing

$

$

Not available

11

Husqvarna 532101274

Support Assembly, Steering

$

$

Not available

12

Husqvarna 873680800

Locknut 1/2-13
(Superseded to 873350800)

$

$

Not available

13

Husqvarna 819172610

Washer 17/32 x 1-5/8 x 10 Gauge
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532104239

Bearing, Flanged

$12.99

$

In Stock, only 3 left!

0

15

Husqvarna 812000034

Klip Ring

$

$

Not available

16

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

17

Husqvarna 532005213

Bracket, Frame, Front

$

$

Not available

18

Husqvarna 532102439

Bracket, Support, Steering
(Superseded to 532104240)

$

$

Not available

19

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532120424

Sector Assembly

$

$

Not available

21

Husqvarna 874780880

Bolt, Hex 1/2-13 x 5 Grade 5

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532104591

Shaft, Steering

$

$

Not available

23

Husqvarna 532110497

Link, Drag

$

$

Not available

24

Husqvarna 532121168

Spindle, L.H.

$

$

Not available

26

Husqvarna 532121159

Rod, Tie

Note: (Inc. Key #56-60)

$

$

Not available

29

UNKNOWN

$

$

Not available

30

Husqvarna 812000029

Klip Ring

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532121748

Washer 17/32 x 1-1/2 x 10 Gauge

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532121167

Spindle, R.H.

$

$

Not available

38

Husqvarna 532108137

Bellcrank Assembly

$

$

Not available

39

Husqvarna 874781044

Bolt, Hex 5/8-11 x 2-3/4 Grade 5

$

$

Not available

41

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

42

Husqvarna 873801000

Nut, Crownlock #10-24 UNC

$

$

Not available

44

Husqvarna 532136518

Tube, Pivot, Axle

$9.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532005297

Axle Assembly, Front
(Superseded to 532677999)

$364.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532005292

Bushing, Bellcrank
(Superseded to 532140342)

$

$

Not available

47

Husqvarna 819131413

Washer 13/32 x 7/8 x 13 Gauge

$2.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532005284

Bracket, Axle

$

$

Not available

49

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$7.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532102933

Spacer, Split

$2.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532121161

Joint, Tie Rod, L.H., Thread
(Superseded to 532109851)

$31.99

$

Usually ships in 3-10 days

0

57

Husqvarna 873700600

Nut Hex, Jam 3/8-24 L.H.

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532121162

Rod, Tie

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 873360600

Nut, Hex, Jam 3/8-24

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532121160

Joint, Tie Rod, R.H., Thread

$24.99

$

In Stock, only 1 left!

0

61

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

62

Husqvarna 873680600

Locknut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 817490612

Screw, Hex Wsh. Thdrol. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

64

Husqvarna 874780616

Bolt, Hex 3/8-16 x 1 Grade 5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

72

Husqvarna 532106615

Pin Mounting, Idler, Bracket
(Superseded to 532677928)

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532121177

Collar Weld Assembly

$

$

Not available

79

Husqvarna 532120199

Tube

$

$

Not available

80

Husqvarna 532121232

Dust Cap Cover

$4.99

$

In Stock, Qty 8

0

82

Husqvarna 874760632

Bolt, Hex 3/8-16 x 2
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

83

Husqvarna 532120542

Bracket, Idler

$

$

Not available

85

Husqvarna 532124858

Pulley, Idler

$

$

Not available

86

Husqvarna 532007190

Spring

$

$

Not available

87

Husqvarna 819133808

Washer 13/32 x 2-3/8 x 8 Gauge
(Superseded to 819133812)

$

$

Not available

88

Husqvarna 874760636

Bolt, Hex 3/8-16 x 2-1/4

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532100644

Bushing, Handle

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 874930516

Bolt, Hex 5/16-18 x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 819111416

Washer 11/32 x 7/8 x 16 Gauge
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873680500

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0
