GT 180 (954000372-C) - Husqvarna Garden Tractor (1992-08) Mower Parts Diagram

Garden Tractor

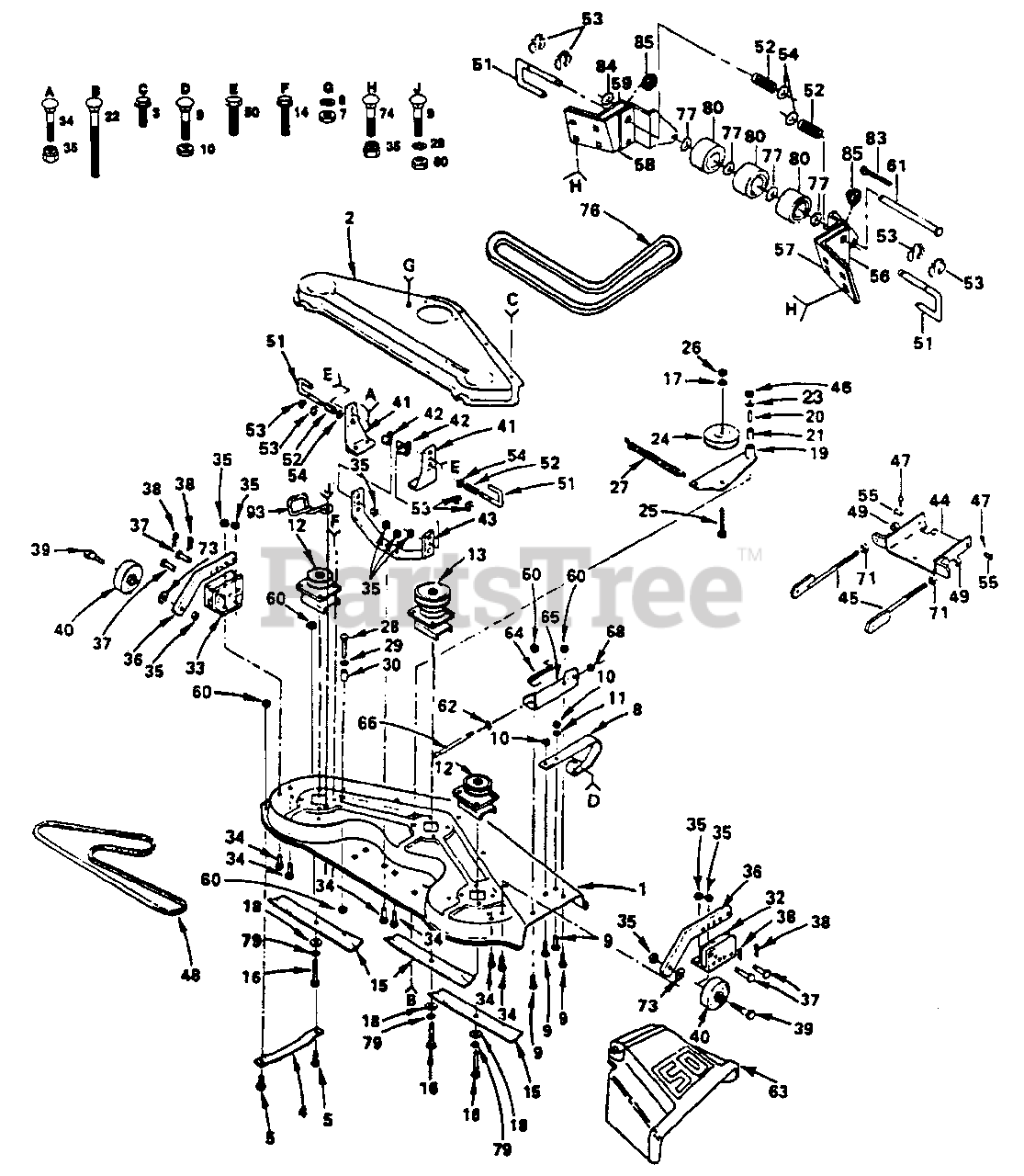

Mower Parts Diagram

  • Title

1

Husqvarna 532121664

Housing, Mower
(Superseded to 532123760)

$272.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532121811

Cover, Drive, Deck

$70.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817490508

Screw, Hex Washer Thr. Roll 5/16 18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 872110505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532120449

Runner
(Superseded to 532136320)

$

$

Not available

9

Husqvarna 872140506

Bolt, Carr. 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532124949

Locknut 5/16-18

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532136819

Mandrel, Secondary

$

$

Not available

13

Husqvarna 532121617

Mandrel, Primary
(Superseded to 532121657)

$

$

Not available

14

Husqvarna 817490612

Screw, Hex Washer Thrd. Roll 3/8 16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 532121798

Blade

$27.99

$

In Stock, only 2 left!

0

16

Husqvarna 874610624

Bolt, Hex 3/8-24 x 1-1/2 Grade 5

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532124685

Arm Assembly, Idler
(Superseded to 532674213)

$

$

Not available

20

Husqvarna 532124702

Liner, Bearing
(Superseded to 532674308)

$

$

Not available

21

Husqvarna 532007835

Bearing
(Superseded to 532674308)

$

$

Not available

22

Husqvarna 872110522

Bolt, Carriage 5/16-18 x 2-3/4

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 819111816

Washer 11/32 x 1-1/8 x 16 Gauge

$

$

Not available

24

Husqvarna 532102403

Pulley, Idler

$39.99

$

In Stock, only 1 left!

0

25

Husqvarna 874760624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 532104361

Spring

$

$

Not available

28

Husqvarna 874780520

Bolt, Hex 5/16-18 x 1-1/4 Grade 5
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 532008438

Spacer, Split

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532105448

Bracket, Ga. Wheel, R.H.

$

$

Not available

33

Husqvarna 532105449

Bracket, Ga. Wheel, L.H.

$

$

Not available

34

Husqvarna 872240606

Bolt, Carriage 3/8-16 x 3/4

$2.99

$

In Stock, only 2 left!

0

35

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532105453

Bar, Ga. Wheel

$

$

Not available

37

Husqvarna 532005565

Pin, Clevis
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532124670

Retainer, Spring

$

$

Not available

39

Husqvarna 532134249

Bolt, Shoulder
(Superseded to 532004898)

$

$

Not available

40

Husqvarna 532105455

Wheel, Gauge

$18.99

$

In Stock, only 2 left!

0

41

Husqvarna 532105433

Bracket, Suspension

$

$

Not available

42

Husqvarna 532110237

Spacer

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532105434

Brace, Suspension

$7.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532109778

Plate Assembly, Mower Suspension

$

$

Not available

45

Husqvarna 532109771

Bracket, Suspension

$

$

Not available

46

Husqvarna 873350500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532124660

Clip, Hairpin
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532003703

V-Belt

$66.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873680800

Nut, Crownlock 1/2-13
(Superseded to 873350800)

$

$

Not available

50

Husqvarna 874760622

Bolt, Hex 3/8-16 x 1-3/8

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532105435

Pin, Release

$

$

Not available

52

Husqvarna 532003720

Spring

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

54

Husqvarna 819171612

Washer 17/32 x 1 x 12 Gauge
(Superseded to 734117801)

$

$

Not available

55

Husqvarna 532105440

Pin, Clevis

$

$

Not available

56

Husqvarna 532105458

Bracket, Outer, R.H.

$

$

Not available

57

Husqvarna 532109773

Bracket, Inner, R.H.

$

$

Not available

58

Husqvarna 532110997

Bracket, Inner, L.H.

$

$

Not available

59

Husqvarna 532120000

Bracket, Outer, L.H.

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 873680500

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532109776

Pin, Pivot

$8.99

$

Usually ships in 3-10 days

0

62

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Gauge

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532110509

Shield, Deflector

$

$

Not available

64

Husqvarna 532106734

Spring, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

65

Husqvarna 532137607

Bracket, Deflector

$6.49

$

In Stock, only 2 left!

0

66

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

68

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 873220600

Nut, Hex 3/8 x 16

$6.49

$

In Stock, only 2 left!

0

73

Husqvarna 819171512

Washer 17/32 x 15/16 x 12 Gauge

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 872240608

Bolt, Carriage 3/8-16 x 1

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532110884

V-Belt

$45.99

$

In Stock, only 3 left!

0

77

Husqvarna 819151610

Washer 15/32 x 1 x 10 Gauge
(Superseded to 734117801)

$

$

Not available

79

Husqvarna 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532109729

Roller, Nose

$

$

Not available

83

Husqvarna 876020412

Pin, Cotter
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

84

Husqvarna 819151616

Washer 15/32 x 1 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

85

Husqvarna 532120135

Spacer

$

$

Not available

93

Husqvarna 532121352

Keeper, Belt L.H.

$

$

Not available

Husqvarna 532127594

Mower Deck, Complete
(Superseded to 532138513)

$

$

Not available
