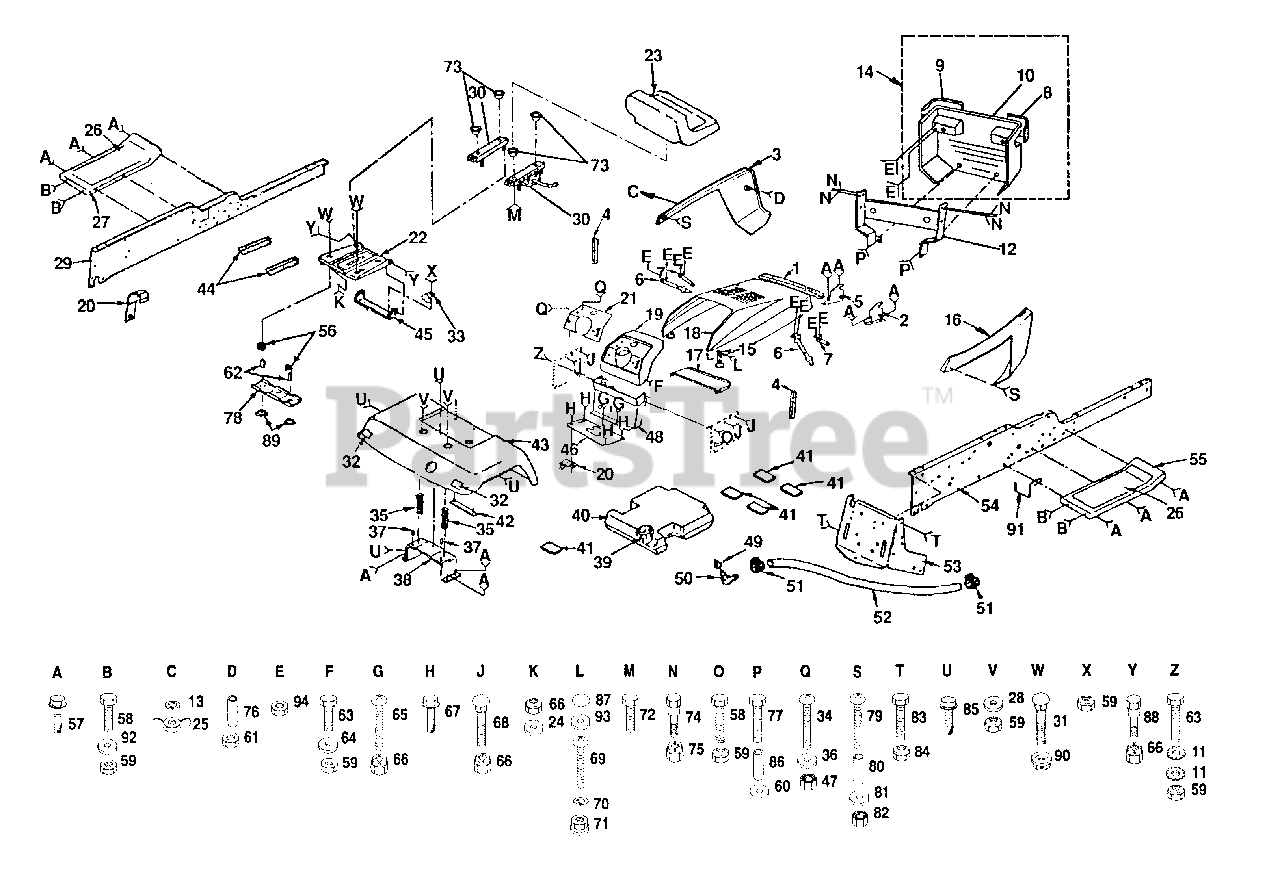

GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Frame, Fender And Drawbar Parts Diagram

Garden Tractor

Frame, Fender And Drawbar Parts Diagram

  • Title

1

Husqvarna 532109458

Strip, Foam

$

$

Not available

2

Husqvarna 532110853

Frame, Pivot, Ass'y, Bracket, R.H.

$

$

Not available

3

Husqvarna 532125009

Panel, Side, L.H.

$

$

Not available

4

Husqvarna 532106088

Strip, Foam

$

$

Not available

5

Husqvarna 532110852

Frame, Pivot, Ass'y, Bracket, L.H.

$

$

Not available

6

Husqvarna 532106784

Strap Assembly, Hinge, Rear

$

$

Not available

7

Husqvarna 532104618

Strap Assembly, Hinge, Front

$

$

Not available

8

Husqvarna 532124251

Lens,R.H.
(Superseded to 532157069)

$

$

Not available

9

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

10

Husqvarna 532127325

Grill
(Superseded to 532157236)

$

$

Not available

11

Husqvarna 811050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532124574

Support, Grill

$

$

Not available

13

Husqvarna 811030400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 532127320

Grill, Assembly
(Superseded to 532157236)

Note: (Includes Keys 8, 9, and 10)

$

$

Not available

15

Husqvarna 532109808

Latch, Hood

$6.99

$

In Stock, Qty 14

0

16

Husqvarna 532125008

Panel, Side, R.H.
(Superseded to 532140677)

$

$

Not available

17

Husqvarna 532007985

Support, Battery

$

$

Not available

18

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

19

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

20

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

21

Husqvarna 532124772

Dashplate
(Superseded to 532123952)

$

$

Not available

22

Husqvarna 532124294

Pan, Seat

$

$

Not available

23

Husqvarna 532124187

Seat
(Superseded to 532126826)

$188.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819111610

Washer 11/32 x 1 x 10 Gauge

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 873490400

Nut, Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

26

Husqvarna 532108256

Pad, Footrest

$

$

Not available

27

Husqvarna 532124899

Footrest, L.H.

$

$

Not available

28

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532110893

Rail, Frame, L.H.
(Superseded to 532151630)

$

$

Not available

30

Husqvarna 532124428

Slide, Seat Set

$

$

Not available

31

Husqvarna 872170410

Bolt, Carriage 1/4-20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532106202

Reflector, Taillight

$

$

Not available

33

Husqvarna 532124996

Clip, Insulated
(Superseded to 532002751)

$

$

Not available

34

Husqvarna 874180512

Screw, Mach. Hd. 5/16-18 x 3/4

$

$

Not available

35

Husqvarna 532124181

Spring, Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532105531

Nut, Push

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532105509

Bracket, Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532123549

Cap, Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532126261

Tank, Fuel w/sensor

$

$

Not available

41

Husqvarna 532106082

Pad, Spacer

$

$

Not available

42

Husqvarna 532105511

Strap, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532124927

Fender
(Superseded to 532121642)

$

$

Not available

44

Husqvarna 532121251

Foam, Strip

$

$

Not available

45

Husqvarna 532126656

Bracket, Pivot, Seat

$

$

Not available

46

Husqvarna 532124837

Cover, Shift, Gate
(Superseded to 532106042)

$

$

Not available

47

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532104608

Dash Assembly

$

$

Not available

49

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532124951

Stem, Tank Fuel
(Superseded to 532008710)

$

$

Not available

51

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, only 4 left!

0

52

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

53

Husqvarna 532007982

Drawbar
(Superseded to 532175282)

$

$

Not available

54

Husqvarna 532110892

Rail, Frame, R.H.
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532124914

Footrest, R.H.
(Superseded to 532145243)

$

$

Not available

56

Husqvarna 532123740

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 1 left!

0

59

Husqvarna 873680600

Locknut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

61

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

62

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, only 2 left!

0

63

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 874180512

Screw, Mach. Cr. Thrd. 5/16-18 x 3/4

$

$

Not available

66

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 817240408

Screw, Hex Washer Thrd. Cutting 1/4-20 x 1/2

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 874191008

Screw, Cr. Pan. Mach. #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 810071000

Washer, Lock #10

$4.99

$

In Stock, Qty 11

0

71

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 817190516

Screw, Hex 5/16-18 x 1

$

$

Not available

73

Husqvarna 532124427

Spacer

$

$

Not available

74

Husqvarna 532123481

Bolt, Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

76

Husqvarna 532001260

Spacer

$

$

Not available

77

Husqvarna 874760440

Bolt, Fin Hex 1/4-20 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

79

Husqvarna 874981020

Screw, Mach Cr. Pan #10-24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

80

Husqvarna 532007206

Spacer, Split #10 x 3/4

$7.49

$

In Stock, Qty 6

0

81

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Gauge

$6.99

$

Usually ships in 3-10 days

0

82

Husqvarna 873731000

Nut, Keps #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

83

Husqvarna 874760716

Bolt, Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 873680700

Locknut 7/16-14

$2.99

$

Usually ships in 3-10 days

0

85

Husqvarna 817490608

Screw, Hex Washer Thread Rolling 3/8 x 16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532121235

Spacer

$

$

Not available

87

Husqvarna 532110356

Cap, Snap

$3.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532105529

Bolt, Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

89

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532123976

Nut, Flange Lock 1/4-20
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

91

Husqvarna 532105500

Retainer, Belt, Lower

$

$

Not available

92

Husqvarna 819131312

Washer 13/32 x 13/16 x 17 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532110357

Washer, Snap Cap

$

$

Not available

94

Husqvarna 873510400

Nut, Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

Husqvarna 532108813

Decal, Caution (Dash)

$

$

Not available

Husqvarna 532124484

Decal, Fender, Logo

Note: (Rear Fender)

$

$

Not available

Husqvarna 532120822

Decal, Caution (Front Fender)

$

$

Not available

Husqvarna 532101892

Decal, Clutch, Brake

$

$

Not available

Husqvarna 532106868

Decal, Belt, Instruction

Note: (Under footrest)

$

$

Not available

Husqvarna 532124480

Decal, Hood, L.H.

$

$

Not available

Husqvarna 532124481

Decal, Hood, R.H.

$

$

Not available

Husqvarna 532124483

Decal, Grill, Logo

$

$

Not available

Husqvarna 532124488

Decal, Side Panels

$

$

Not available
