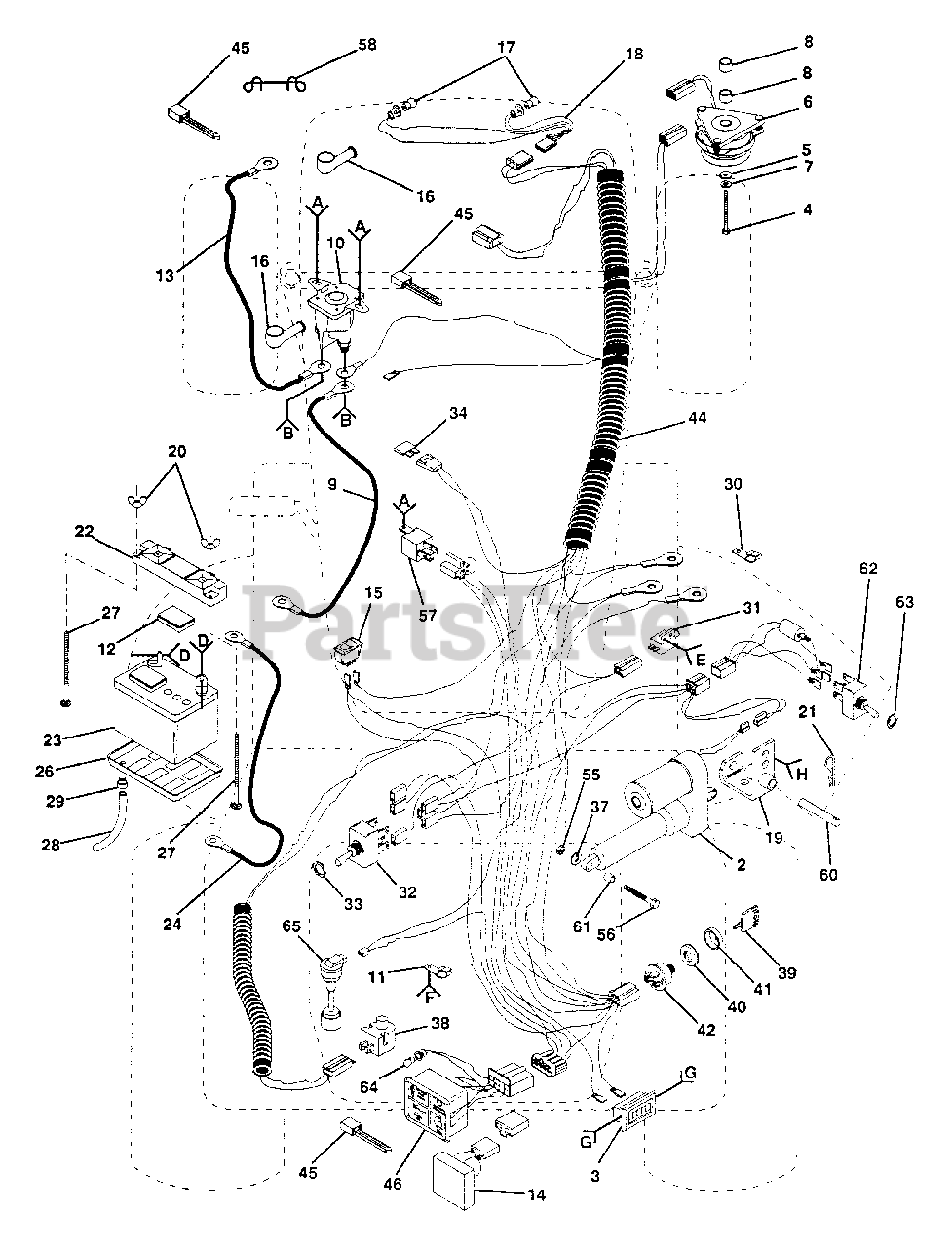

GT 180 (954000211-B) - Husqvarna Garden Tractor (1990-11) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

2

Husqvarna 532124371

Actuator, Electric

$

$

Not available

3

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

4

Husqvarna 871130724

Bolt, Hex 7/16-20 x 1-1/2 Grade 8

$2.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532126197

Washer

$8.99

$

In Stock, only 3 left!

0

6

Husqvarna 532109550

Clutch, Electric

$

$

Not available

7

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

8

Husqvarna 532106367

Spacer, Clutch

$

$

Not available

9

Husqvarna 532124770

Cable, Battery
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532109081

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

11

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

12

Husqvarna 532121264

Battery Caps

$

$

Not available

13

Husqvarna 532005115

Cable, Starter
(Superseded to 532005114)

$

$

Not available

14

Husqvarna 532127385

Sensor, Low Voltage

$

$

Not available

15

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 2 left!

0

16

Husqvarna 532124783

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 532124893

Bulb, Light
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532110859

Harness, Light Socket

$

$

Not available

19

Husqvarna 532124867

Bracket Assembly, Actuator

$

$

Not available

20

Husqvarna 532123198

Nut, Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

21

Husqvarna 532004940

Spring, Retainer

$

$

Not available

22

Husqvarna 532102476

Guard, Terminal
(Superseded to 532150109)

$

$

Not available

23

Husqvarna 532121537

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

24

Husqvarna 532124773

Cable Ground
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 872240460

Bolt, Carriage 1/4-20 x 7-1/2

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532100541

Tube, Plastic
(Superseded to 532007697)

$

$

Not available

29

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532100207

Clip

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532104445

Switch, Interlock

$17.99

$

In Stock, only 1 left!

0

32

Husqvarna 532126018

Switch, P.T.O.

$

$

Not available

33

Husqvarna 532124932

Nut, Hex
(Superseded to 532004022)

$

$

Not available

34

Husqvarna 532006347

Fuse
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

38

Husqvarna 532121305

Switch, Seat
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

39

Husqvarna 532122147

Key

$

$

Not available

40

Husqvarna 532109788

Nut, Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

41

Husqvarna 532109787

Bezel, Ignition
(Superseded to 584446901)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532125104

Switch, Ignition
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

44

Husqvarna 532124047

Harness, Ignition

$

$

Not available

45

Husqvarna 532124756

Cable Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532126519

Light Package

$

$

Not available

55

Husqvarna 873220600

Nut, Fin Hex 3/8-16

$6.49

$

In Stock, only 2 left!

0

56

Husqvarna 874520636

Bolt, Fin Hex 3/8-16 x 2-1/4

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532109748

Assembly, Relay

$30.99

$

In Stock, only 1 left!

0

58

Husqvarna 532121465

Tie, Wire

$

$

Not available

60

Husqvarna 532007085

Pin, Actuator

$

$

Not available

61

Husqvarna 532005950

Tube

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532126289

Switch Assembly, Lift

$

$

Not available

63

Husqvarna 532007319

Washer, Lock

$

$

Not available

64

Husqvarna 532110143

Bulb, Dashboard, Light

$

$

Not available

65

Husqvarna 532126487

Sensor, Low Fuel

$

$

Not available

Husqvarna 532101539

Sheet, Instruction, Tractor 15° Slope (English)

$

$

Not available

Husqvarna 532101572

Sheet, Instruction, Tractor 15° Slope (French)

$

$

Not available

Husqvarna 532121549

Decal, Battery, Caution

$

$

Not available

Husqvarna 532127458

Operator's Manual (English)

$

$

Not available

Husqvarna 532127459

Operator's Manual (French)

$

$

Not available

Husqvarna 532123469

Owner's Manual, Kohler, Engine (English)

$

$

Currently unavailable

Husqvarna 532123470

Owner's Manual, Kohler, Engine (French)

$

$

Currently unavailable
