GT-180 (143U846H190) - White Outdoor 46" Garden Tractor (1993) Belts, Pulleys And Transmission Parts Diagram

46" Garden Tractor

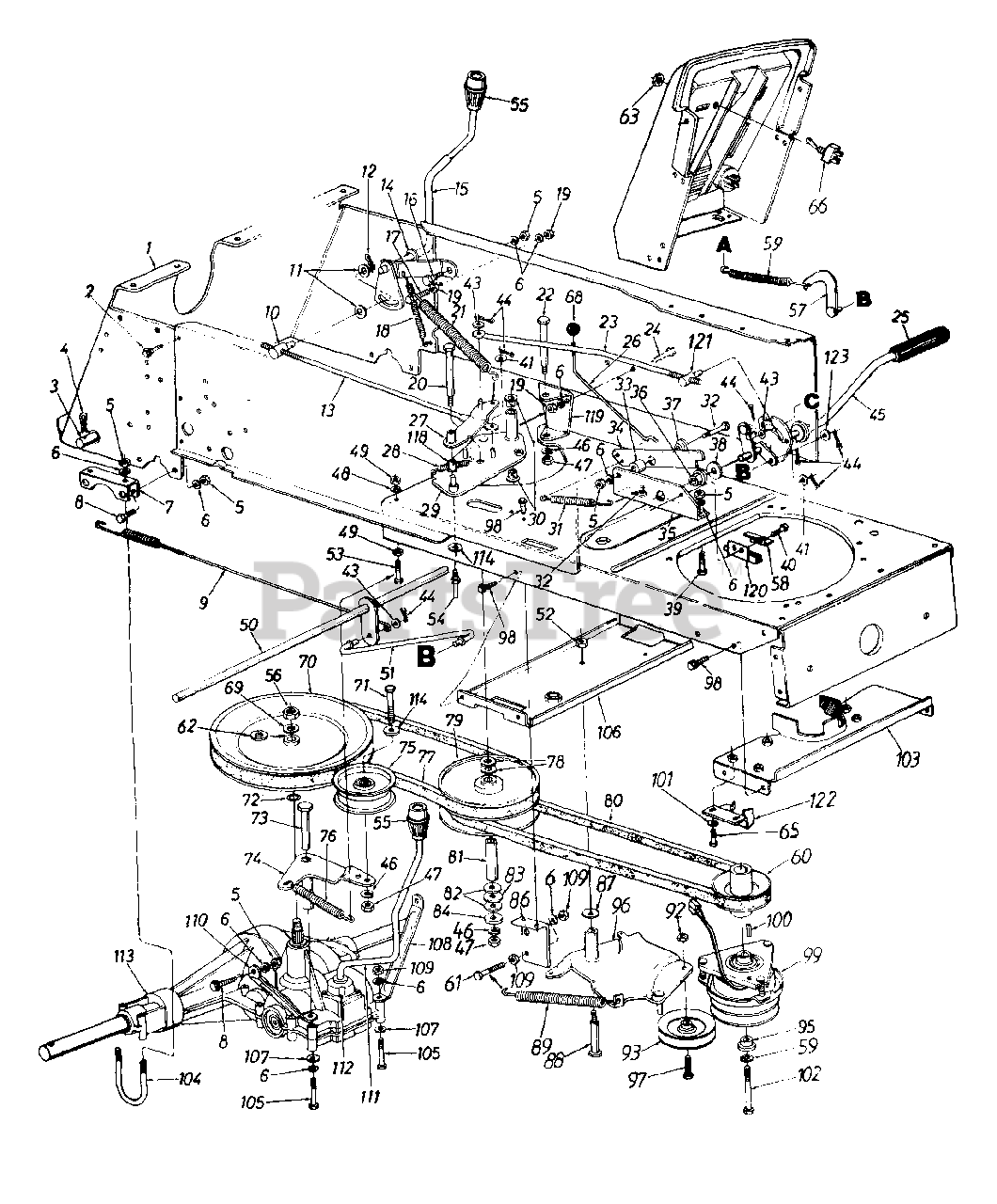

Belts, Pulleys And Transmission Parts Diagram

  • Title

1

White Outdoor 17343

Hitch Plate

Variations

White Outdoor 17343-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16" x .75"

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 738-0482

Hitch Rod

$

$

Not available

4

White Outdoor 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 6

0

5

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

6

White Outdoor 736-0119

L-Wash. 5/16" I.D."
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 17340

Transaxle Bracket

$

$

Not available

8

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 732-0601

Brake Extension Spring

$14.99

$

Usually ships in 3-6 days

0

10

White Outdoor 711-0723A

Adjustment Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

11

White Outdoor 736-0267

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

12

UNKNOWN

$

$

Not available

13

White Outdoor 747-0729

Speed Control Link (Rear)

$

$

Not available

14

White Outdoor 736-0192

Fl-Wash. .531" I.D. x .94"

$4.49

$

In Stock, Qty 16

0

15

White Outdoor 16906

Speed Selector Lever Ass'y.
(Superseded to 753-0840)

$

$

Not available

16

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 732-0429A

Extension Spring 3.9" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3057

Hex Nut 5/16-24 Thd. (Gr. 5)
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

20

White Outdoor 710-0620

Hex Bolt 3/8-24 x 4.5" Lg.

$11.99

$

In Stock, only 2 left!

0

21

White Outdoor 732-0603

Extension Spring 11" Lg.

$

$

Not available

22

White Outdoor 738-0779

Shld. Bolt .625" Dia. x 3.5" Lg.
(Superseded to 938-0779)

$

$

Not available

23

White Outdoor 747-0726

Speed Control Link (Front)
(Superseded to 747-0726A)

$

$

Not available

24

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

25

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

26

White Outdoor 747-0722

Parking Brake Link

$

$

Not available

27

White Outdoor 17914

Var. Speed Torque Brkt. Ass'y.

Variations

White Outdoor 17914-0637

BRACKET ASSY-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 732-0568

Extension Spring 2.59" Lg.
(Superseded to 932-0568)

$

$

Not available

29

17908

Pulley Plate Ass'y.

$

$

Not available

30

White Outdoor 741-0591

Flanged Brg. .63" I.D.

$4.49

$

In Stock, Qty 9

0

31

White Outdoor 732-0395

Extension Spring 2.51" Lg.
(Superseded to 932-0395)

$

$

Not available

32

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

33

White Outdoor 750-0214

Spacer .34" I.D. x .88"

$

$

Not available

34

White Outdoor 16980

Brake Lockout Bracket

Variations

White Outdoor 16980-0637

No Longer Available BRACKET-LOCKOUT - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 16924A

Clutch Ass'y. Mtg. Bracket

$

$

Not available

36

White Outdoor 741-0225

Hex Flange Brg. .634" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

37

White Outdoor 748-0234

Shld. Spacer .5" Dia.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 710-0436

Hex B-Tap Scr. #10 x 5/8" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

?42

White Outdoor 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

43

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

44

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

45

White Outdoor 17910

Foot Pedal Ass'y.

Variations

White Outdoor 17910-0637

No Longer Available PEDAL ASSY-FOOT - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

49

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

White Outdoor 17349

Brake Link Bracket

$

$

Not available

51

White Outdoor 747-0724

Front Brake Rod Link
(Superseded to 747-0724A)

$

$

Not available

52

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

53

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

54

711-0828

Belt Guard Pin

$

$

Not available

55

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

56

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

57

White Outdoor 17912

Foot Pedal Brkt. Ass'y.

$

$

Not available

58

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

59

White Outdoor 732-0698

Ext. Spring 5.2" Lg.

$

$

Not available

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

60

White Outdoor 756-0546A

Engine Pulley

$

$

Not available

61

White Outdoor 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

63

White Outdoor 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

65

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

68

White Outdoor 720-0166

Ball Knob Brake

$

$

Not available

69

White Outdoor 736-0427

Bell-Wash. 9/16" I.D. x 1.25"
(Superseded to 936-0427)

$

$

Not available

70

White Outdoor 756-0534

V-Pulley 9-1/4" O.D.

$

$

Not available

71

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

72

White Outdoor 732-0614

Wire Ring

$6.49

$

In Stock, only 1 left!

0

73

White Outdoor 738-0769

Shld. Bolt 5/16-24 Thd.

$

$

Not available

74

White Outdoor 16904

Idler Brkt. Ass'y.
(Superseded to 96904-0637)

$

$

Not available

75

White Outdoor 756-0542

Flat Idler 3.5" O.D.

$78.99

$

In Stock, only 1 left!

0

76

White Outdoor 732-0384

Extension Spring 6.12" Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

77

White Outdoor 754-0362

V-Belt
(Superseded to 954-0362)

$54.99

$

In Stock, only 1 left!

0

78

White Outdoor 736-0414

Teflon Washer 1.20" O.D.

$4.49

$

In Stock, Qty 13

0

79

White Outdoor 717-0945

Variable Speed Pulley 6" Dia.
(Superseded to 917-0945)

$302.99

$

Usually ships in 3-6 days

0

80

White Outdoor 754-0358

V-Belt
(Superseded to 954-0358)

$61.99

$

In Stock, only 1 left!

0

81

White Outdoor 738-0778

Pivot Bushing

$

$

Not available

82

White Outdoor 736-0355

Fl-Wash. .56" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 741-0405

Thrust Brg. .56" I.D. x 1.25"
(Superseded to 941-0405)

$

$

Not available

84

White Outdoor 17485

Retainer Cup

$8.49

$

Usually ships in 3-6 days

0

86

White Outdoor 13833

Parking Brake Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

87

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 738-0129

Shld. Bolt .498" Dia. x 2.05"

$11.99

$

In Stock, only 1 left!

0

89

White Outdoor 732-0180

Extension Spring 4.0" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, only 1 left!

0

92

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 2 left!

0

93

White Outdoor 756-0293A

V-Belt Idler
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

95

White Outdoor 738-0785

Shoulder Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

96

White Outdoor 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

97

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

98

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

99

White Outdoor 717-0949

Electric Clutch
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

100

White Outdoor 714-0118

Sq. Key 1/4 x 1.5" Lg.

$6.99

$

In Stock, only 4 left!

0

101

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

102

White Outdoor 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.

$10.99

$

Usually ships in 3-6 days

0

103

White Outdoor 17357

Belt Keeper Brkt. Ass'y.
(Superseded to 17358D-0637)

$

$

Not available

104

White Outdoor 711-0829

U-Bolt

$

$

Not available

105

White Outdoor 710-0593

Hex Bolt 5/16-24 x 2.25" Lg.

$

$

Not available

106

White Outdoor 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

107

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

108

16979

Front Trans. Support Brkt. - L.H,

$

$

Not available

109

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

110

16978

Front Trans. Support Brkt. - R.H.

$

$

Not available

111

White Outdoor 717-0985A

Shift Lever Ass'y. Complete

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

112

White Outdoor 710-1048

Socket Hd. Cap Scr. #10 x 24

$

$

Not available

113

White Outdoor 618-0009

2-Speed Transmission Comp.
(Superseded to 753-0598)

$

$

Not available

114

White Outdoor 736-0258

Fl-Wash. 3/8" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

118

White Outdoor 741-0419

Nyliner Flanged Brg.

$

$

Not available

119

White Outdoor 17180

Variable Speed Support Brkt.

$

$

Not available

120

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

121

White Outdoor 711-0832

Adjustment Ferrule 3/8-24 Thd.
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

122

White Outdoor 17418

Torque Bracket

Variations

White Outdoor 17418-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

123

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 20+

0
