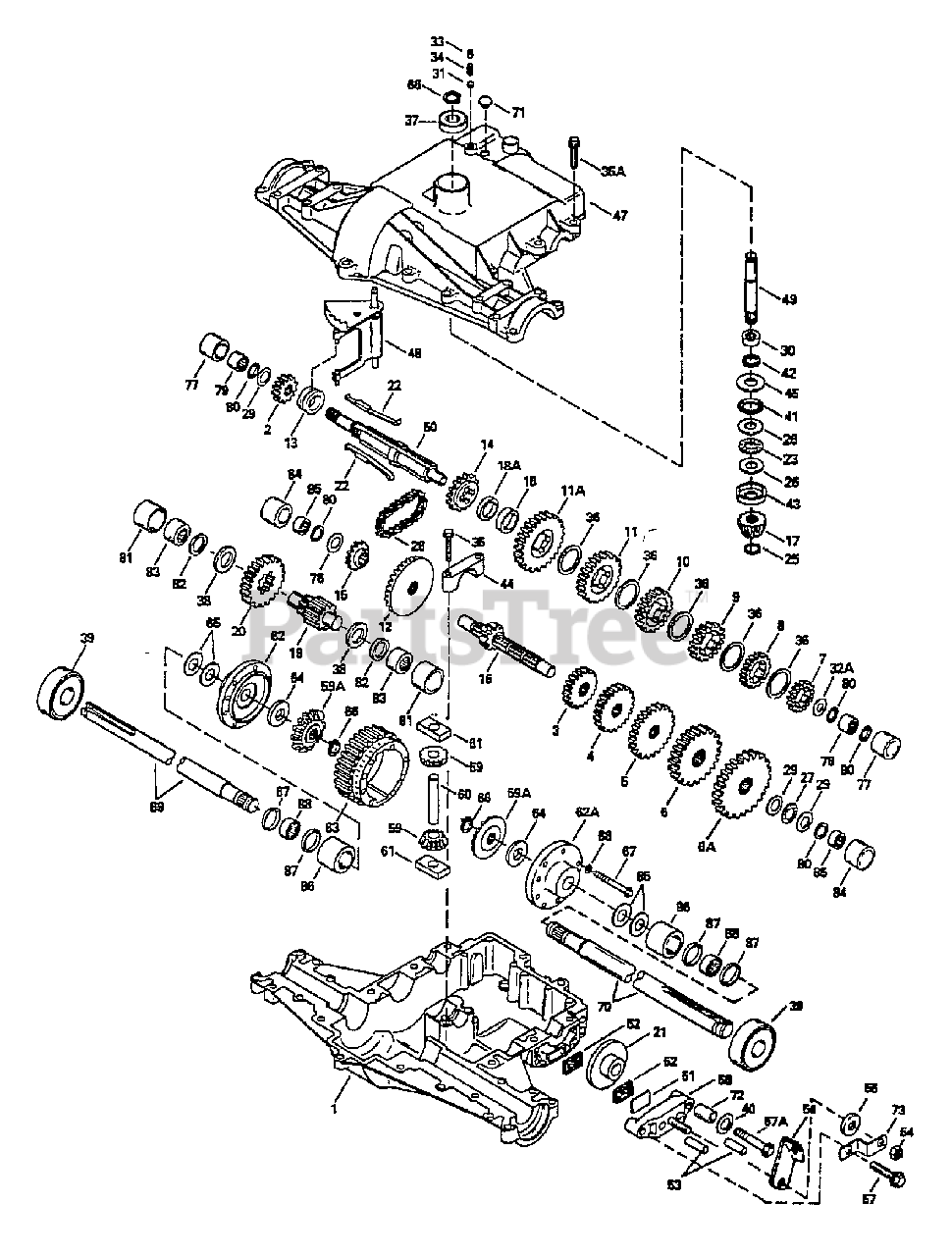

GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Transaxle Parts Diagram

Garden Tractor

Transaxle Parts Diagram

  • Title

1

Husqvarna 770088

Case, Transaxle

$

$

Not available

2

Husqvarna 778253

Gear, Spur 15 Teeth

$

$

Not available

3

Husqvarna 778211

Gear, Spur 12 Teeth

$

$

Not available

4

Husqvarna 778240

Gear, Spur 18 Teeth

$

$

Not available

5

Husqvarna 778201

Gear, Spur 25 Teeth

$

$

Not available

6

Husqvarna 778202

Gear, Spur 28 Teeth

$

$

Not available

6A

Husqvarna 778208

Gear, Spur 31 Teeth

$

$

Not available

7

Husqvarna 778209

Gear, Spur 19 Teeth

$

$

Not available

8

Husqvarna 778203A

Gear, Spur 21 Teeth

$

$

Not available

9

Husqvarna 778204A

Gear, Spur 25 Teeth

$

$

Not available

10

Husqvarna 778239A

Gear, Spur 32 Teeth

$

$

Not available

11

Husqvarna 778207A

Gear, Spur 37 Teeth

$

$

Not available

11A

Husqvarna 778216A

Gear, Spur 41 Teeth

$

$

Not available

12

Husqvarna 778246

Gear, Bevel 33 Teeth

$

$

Not available

13

Husqvarna 784216

Collar, Shift

$

$

Not available

14

Husqvarna 786123

Sprocket 18 Teeth

$

$

Not available

15

Husqvarna 786082

Sprocket 9 Teeth

$

$

Not available

16

Husqvarna 776291

Shaft, Counter (with 9 Tooth Gear)

$

$

Not available

17

Husqvarna 778245

Bevel Pinion, Input 13 Teeth

$

$

Not available

18

Husqvarna 786121

Spacer, Neutral .350/.340 Thick

$

$

Not available

18A

Husqvarna 786122

Spacer, Neutral .276/.268 Thick

$

$

Not available

19

Husqvarna 776275

Shaft, Output 9 Teeth

$

$

Not available

20

Husqvarna 778247

Gear, Output 35 Teeth

$

$

Not available

21

Husqvarna 790043

Disk, Brake

$

$

Not available

22

Husqvarna 792138

Key

$

$

Not available

23

Husqvarna 780084

Bearing, Thrust

$

$

Not available

25

Husqvarna 788040

Ring, Retaining

$

$

Not available

26

Husqvarna 780051

Washer, Thrust

$

$

Not available

27

Husqvarna 780071

Bearing, Thrust

$

$

Not available

28

Husqvarna 786081

Chain, Roller (Number 41 Chain, 24 Links)

$

$

Not available

29

Husqvarna 780072

Washer, Thrust

$

$

Not available

30

Husqvarna 780155

Bearing, Needle

$

$

Not available

31

Husqvarna 792077

Ball, Steel

$

$

Not available

32A

Husqvarna 780139

Washer, Thrust

$

$

Not available

33

Husqvarna 792078

Screw, Set 3/8-16 x 3/8

$

$

Not available

34

Husqvarna 792079

Spring

$

$

Not available

35

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

35A

Husqvarna 792129

Screw, Hex Head, Thread Forming 5/16-18 x 1-1/4

$

$

Not available

36

Husqvarna 780108

Washer, Thrust

$

$

Not available

37

Husqvarna 780119

Bearing, Ball

$

$

Not available

38

Husqvarna 780128

Washer, Thrust

$

$

Not available

39

Husqvarna 780050

Bearing, Ball

$

$

Not available

40

Husqvarna 792128

Washer, Flat

$

$

Not available

41

Husqvarna 788077

"O" Ring

$

$

Not available

42

Husqvarna 788042

Seal, Oil

$

$

Not available

43

Husqvarna 780166

Washer, Cupped

$

$

Not available

44

Husqvarna 786131

Cap, Bearing

$

$

Not available

45

Husqvarna 780165

Washer, Flat

$

$

Not available

47

Husqvarna 772098

Cover, Transaxle

$

$

Not available

48

Husqvarna 784342

Rod and Fork Assembly, Shift

$

$

Not available

49

Husqvarna 776274

Shaft, Input

$

$

Not available

50

Husqvarna 776313

Shaft, Brake, 4 Keyed

$

$

Not available

51

Husqvarna 790007

Plate, Brake Pad

$

$

Not available

52

Husqvarna 790006

Pad, Brake

$

$

Not available

53

Husqvarna 786026

Pin, Dowel

$

$

Not available

54

Husqvarna 792075

Locknut 5/16-24

$

$

Not available

55

Husqvarna 792076

Washer, Flat

$

$

Not available

56

Husqvarna 790047

Lever, Brake

$

$

Not available

57

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

57A

Husqvarna 792085

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 2-1/4

$

$

Not available

58

Husqvarna 790025

Holder, Brake Pad

$

$

Not available

59

Husqvarna 778197

Pinion, Differential Bevel

$

$

Not available

59A

Husqvarna 778198

Gear, Bevel

$

$

Not available

60

Husqvarna 786019

Pin, Drive

$

$

Not available

61

Husqvarna 786027

Block, Drive

$

$

Not available

62

Husqvarna 774833

Carrier, Differential, Threaded Holes

$

$

Not available

62A

Husqvarna 774834

Carrier, Differential

$

$

Not available

63

Husqvarna 778248

Gear, Ring 31 Teeth

$

$

Not available

64

Husqvarna 780107

Washer

$

$

Not available

65

Husqvarna 780042

Washer, Thrust

$

$

Not available

66

Husqvarna 792018

Ring, Snap

$

$

Not available

67

Husqvarna 792020

Screw, Hex Head 1/4-20 x 2-1/4

$

$

Not available

68

Husqvarna 792006

Washer, Lock 1/4

$

$

Not available

69

Husqvarna 774832

Axle 12-5/16"

$

$

Not available

70

Husqvarna 774831

Axle 16-3/16"

$

$

Not available

71

Husqvarna 792074

Plug, Hex Head 9/16-18 Thread

$

$

Not available

72

Husqvarna 786067

Spacer

$

$

Not available

73

Husqvarna 786086

Bracket, Brake Lever

$

$

Not available

76

Husqvarna 780153

Washer

$

$

Not available

77

Husqvarna 786144

Sleeve, Stepped

$

$

Not available

78

Husqvarna 780150

Bearing, Needle

$

$

Not available

79

Husqvarna 780152

Bearing, Needle, Capped

$

$

Not available

80

Husqvarna 792001

"O" Ring

$

$

Not available

81

Husqvarna 786142

Sleeve, Stepped

$

$

Not available

82

Husqvarna 788071

Ring, Square Cut

$

$

Not available

83

Husqvarna 780049

Bearing, Needle, Capped

$

$

Not available

84

Husqvarna 786143

Sleeve, Stepped

$

$

Not available

85

Husqvarna 780151

Bearing, Needle, Capped

$

$

Not available

86

Husqvarna 786145

Sleeve, Stepped

$

$

Not available

87

Husqvarna 788070

Ring, Square Cut

$

$

Not available

88

Husqvarna 780031

Bearing, Needle

$

$

Not available
