GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Steering, Front Axle And Wheels Parts Diagram

Garden Tractor

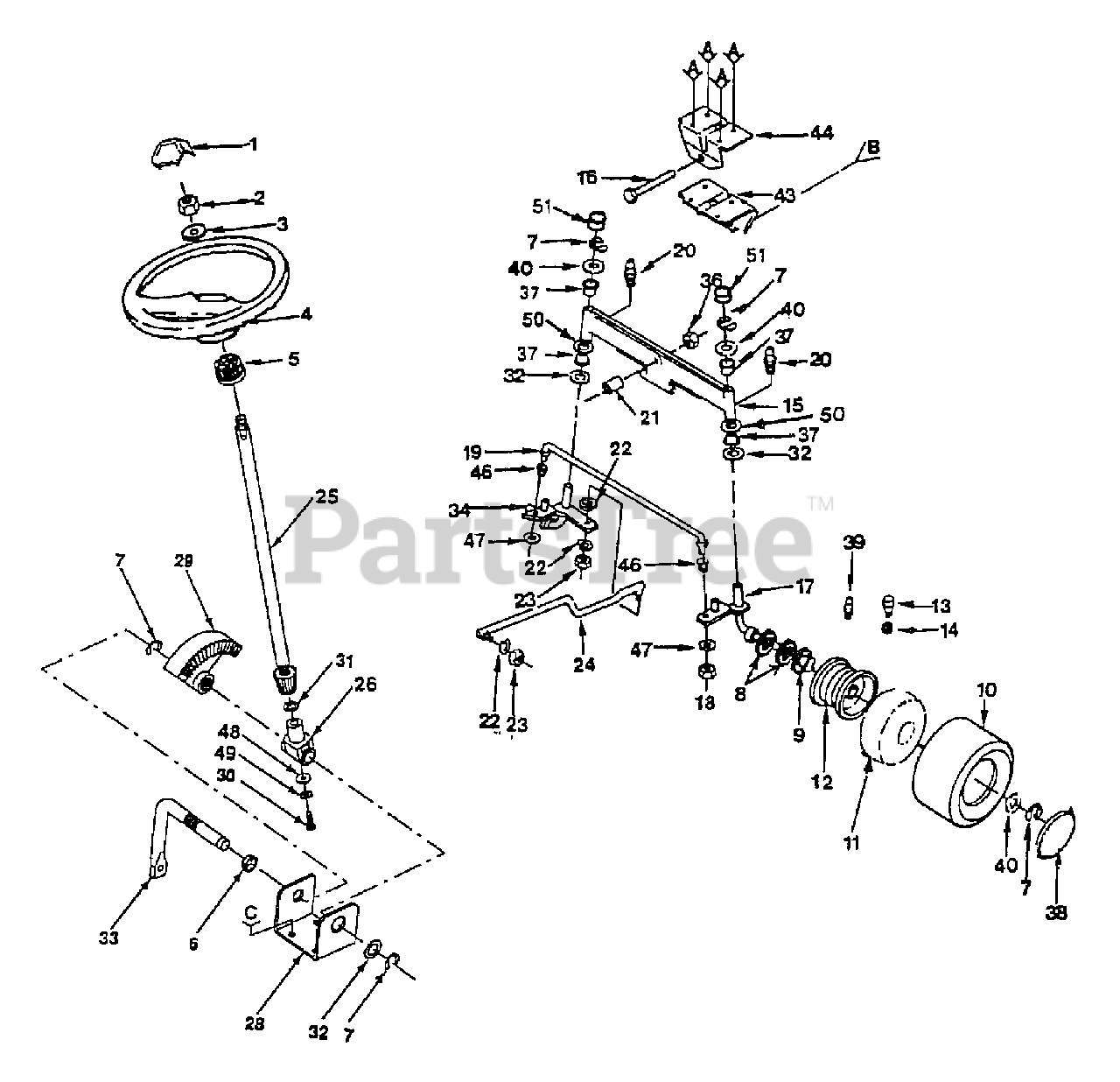

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

2

Husqvarna 873940800

Nut, Hex, Jam, Toplock 1/2-20

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Husqvarna 532124415

Wheel, Steering

$

$

Not available

5

Husqvarna 532100711

Adapter, Steering Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

6

Husqvarna 532109816

Nyliner, Snap In

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532009040

Bearings, Wheel, Front

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 532106222

Tire, Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532059904

Tube, Tire

$37.99

$

In Stock, Qty 7

0

12

Husqvarna 532125102

Rim Assembly, Front
(Superseded to 532141446)

Note: (Inc. 2 each Key # 9); STANDARD HARDWARE-PURCHASE LOCALLY

$91.99

$

In Stock, Qty 5

0

13

Husqvarna 532065139

Stem, Valve

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$9.99

$

In Stock, only 3 left!

0

14

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

15

Husqvarna 532108075

Axle Assembly, Front

$

$

Not available

16

Husqvarna 874761060

Bolt, Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532130459

Spindle Assembly, R.H.

$

$

Not available

18

Husqvarna 873810500

Nut, Hex, Nylon 5/16-24 UNF
(Superseded to 873610500)

$

$

Not available

19

Husqvarna 532130467

Rod, Tie
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

20

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 532110438

Spacer, Bearing, Front Axle
(Superseded to 532155134)

$

$

Not available

22

Husqvarna 810040600

Lock washer 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532130468

Link, Drag

$93.99

$

In Stock, only 1 left!

0

25

Husqvarna 532128762

Shaft, Steering
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124035

Support Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

28

Husqvarna 532124036

Bracket Assembly, Steering

$

$

Not available

29

Husqvarna 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Husqvarna 871070410

Screw, Socket Hex 1/4-20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 11

0

32

Husqvarna 532124931

Thrust, Bearing
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

33

Husqvarna 532127501

Shaft, Pitman
(Superseded to 532156365)

$

$

Not available

34

Husqvarna 532130460

Spindle Assembly, L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

36

Husqvarna 873601000

Nut, Flange 5/8-11
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124937

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532124577

Cover, Wheel

$

$

Not available

39

Husqvarna 532000278

Fitting, Grease

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105663

Support, Saddle, Rear

$

$

Not available

46

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 810040500

Washer, Lock Heavy Helical Spring
(Superseded to 596238801)

Note: STANDARD HARDWARE-PURCHASE LOCALLY

$3.99

$

In Stock, only 3 left!

0

48

Husqvarna 532126684

Washer, Shim 1/4 x 5/8 x .062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

50

Husqvarna 819272016

Washer 27/32 x 1-1/4 x 16 Gauge

$6.49

$

In Stock, only 2 left!

0

51

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0
