GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Engine And Drive Controls Group Parts Diagram

Garden Tractor

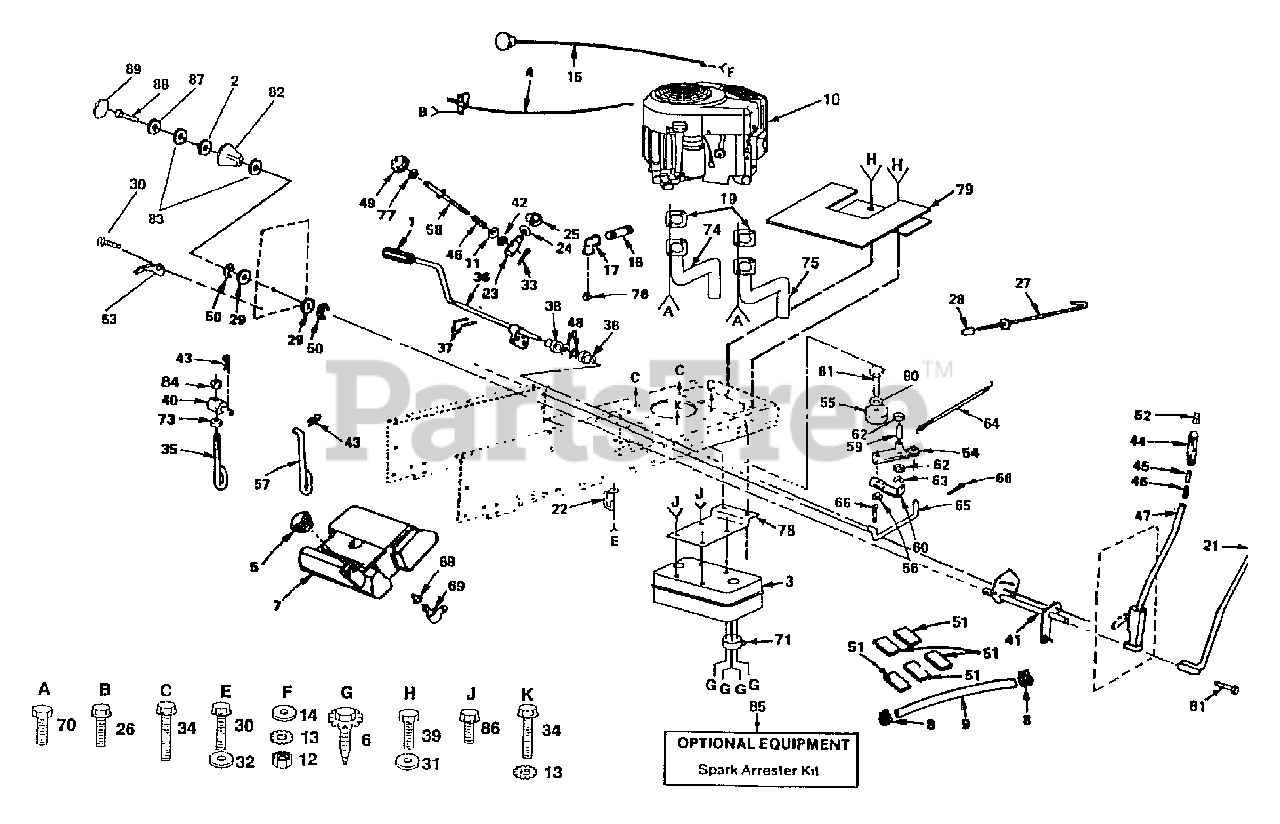

Engine And Drive Controls Group Parts Diagram

  • Title

1

Husqvarna 532123533

Cover, Foot Pedal

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532120529

Washer, Nylon

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532122440

Muffler

$

$

Not available

4

Husqvarna 532132748

Control, Throttle

$

$

Not available

5

Husqvarna 532124462

Cap, Fuel

$

$

Not available

6

Husqvarna 817450808

Screw, Spider Lock

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532106020

Tank, Fuel

$

$

Not available

8

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 532008543

Line, Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

10

Husqvarna 532131958

Engine, Briggs & Stratton, Model Number 303777

$

$

Currently unavailable

11

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Gauge

$6.49

$

In Stock, Qty 5

0

12

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, Qty 19

0

14

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532132781

Control, Choke

$

$

Not available

16

Husqvarna 813280336

Nipple, STD Pipe

$

$

Not available

17

Husqvarna 813200300

Elbow, 90° 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

19

Gasket, Muffler

Note: (see engine pages for replacement number)

$

$

Not available

21

Husqvarna 532121006

Rod Assembly, Lever

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123788

Retainer, Belt, Chassis, L.H.

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110810

Trunnion, Stop, Depth

$

$

Not available

24

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Gauge

$

$

Not available

25

Husqvarna 812000037

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 817720410

Screw, Hex Washer Hd. Thread Cutting 1/4-20 x 1/2
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

28

Husqvarna 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 819131316

Washer 13/32 x 1-3/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Husqvarna 817490624

Screw, Hex Washer Hd. Thd. Rolling 3/8-16 x 1-1/2 Type TT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532110448

Lift, Link, Adjustable

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532122424

Shaft, Pedal, Foot

$

$

Not available

37

Husqvarna 532001572

Pin, Roll 3/16 x 1

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

39

Husqvarna 817490512

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

41

Husqvarna 532131926

Shaft Assembly, Lift
(Superseded to 583617901)

$61.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532110807

Nut, Special

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

43

Husqvarna 532124670

Retainer, Spring

$

$

Not available

44

Husqvarna 532125631

Grip, Handle

$7.99

$

In Stock, only 1 left!

0

45

Husqvarna 532122364

Plunger, Lever, Lift
(Superseded to 532125925)

$

$

Not available

46

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532121002

Lever Assembly, Hand Kit
(Superseded to 532123096)

Note: (incl. Key No. 21)

$

$

Not available

48

Husqvarna 819211616

Washer 21/32 x 1 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532121891

Handle, Adjust, Lift

$

$

Not available

50

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532006431

Pad, Spacer

$

$

Not available

52

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

53

Husqvarna 532124763

Pointer, Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532123789

Arm Assembly, Idler

$

$

Not available

55

Husqvarna 532127783

Pulley, Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

56

Husqvarna 873680600

Locknut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532110029

Link, Lift

$

$

Not available

58

Husqvarna 532110729

Rod, Adjust, Lift

$

$

Not available

59

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 874760624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$7.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532110812

Washer, Hardened

$

$

Not available

63

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

64

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 2 left!

0

65

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

66

Husqvarna 876020412

Pin, Cotter 118 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

68

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532124951

Stem, Tank, Fuel
(Superseded to 532008710)

$

$

Not available

70

Bolt, Metric

Note: (see engine pages for replacement number)

$

$

Not available

71

Husqvarna 532101326

Deflector, Muffler

$

$

Not available

73

Husqvarna 873360700

Nut, Hex, Jam 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

74

Husqvarna 532122434

Tube Assembly, Exhaust, L.H.

$

$

Not available

75

Husqvarna 532122435

Tube Assembly, Exhaust, A.H.

$75.99

$

Usually ships in 3-10 days

0

76

Plug, Drain, Oil

Note: (Supplied by Eng. Manufactor)

$

$

Not available

77

Husqvarna 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

78

Husqvarna 532122439

Bracket, Muffler, Mounting

$

$

Not available

79

Husqvarna 532122981

Shield, Heat

$

$

Not available

80

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123934

Scale, Height Indicator

$

$

Not available

83

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Gauge

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 873710700

Nut, Crownlock 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

85

Husqvarna 532121851

Spark Arrestor Kit

$

$

Not available

86

Husqvarna 817490408

Screw, Hex Washer Hd. Thread Cutting 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 810040500

Washer, Lock
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

88

Husqvarna 874780516

Bolt, Hex 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532123935

Plug, Hole

$5.99

$

Usually ships in 3-10 days

0
