GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Electrical Parts Diagram

Garden Tractor

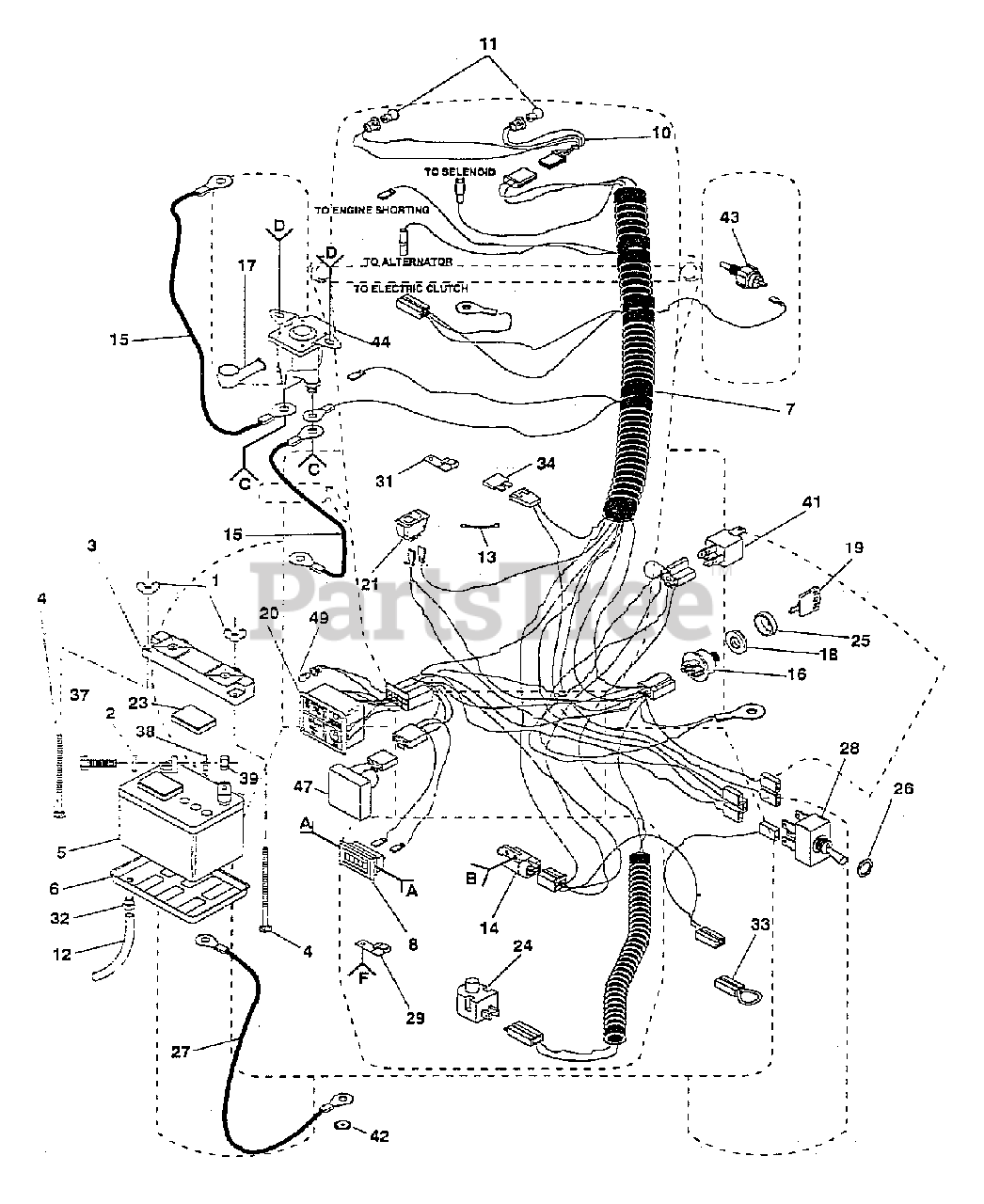

Electrical Parts Diagram

  • Title

1

Husqvarna 532123198

Nut, Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

2

Husqvarna 819091016

Washer 9/32 x 518 x 16 Gauge

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532102476

Guard, Terminal
(Superseded to 532150109)

$

$

Not available

4

Husqvarna 872240460

Bolt, Carriage 1/4-20 x 7-1/2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121537

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

6

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124384

Harness, Ignition

Note: (Includes Key #41)

$

$

Not available

8

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532110859

Harness, Light Socket

$

$

Not available

11

Husqvarna 532124893

Bulb, Light
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532100541

Tube, Battery Tray
(Superseded to 532007697)

$

$

Not available

13

Husqvarna 532124756

Tie, Cable
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532109553

Switch, Interlock (Clutch)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532124770

Cable, Battery (2)
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532102972

Switch, Ignition
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

17

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 532124211

Nut, Ignition

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 532122147

Key, Molded

$

$

Not available

20

Husqvarna 532109555

Light, Package

$

$

Not available

21

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 4 left!

0

23

Husqvarna 532121264

Caps, Battery

$

$

Not available

24

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

25

Husqvarna 532123620

Bezel, Ignition
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124932

Nut, Hex
(Superseded to 532004022)

$

$

Not available

27

Husqvarna 532124773

Cable, Battery
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532126018

Switch, PTO

$

$

Not available

29

Husqvarna 532124995

Clip, Insulated

$

$

Not available

31

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

32

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532102501

Loop, Wire

$

$

Not available

34

Husqvarna 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 874760412

Bolt, Hex 1/4-20 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532109748

Relay

$30.99

$

In Stock, only 1 left!

0

42

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532126825

Switch, Oil Sensor

$

$

Not available

44

Husqvarna 532109081

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

47

Husqvarna 532127385

Sensor, Low Voltage

$

$

Not available

49

Husqvarna 532110143

Bulb, Light Package

$

$

Not available
