GT 160 (H1644C) - Husqvarna Garden Tractor (1991-08) Chassis Enclosures Parts Diagram

Garden Tractor

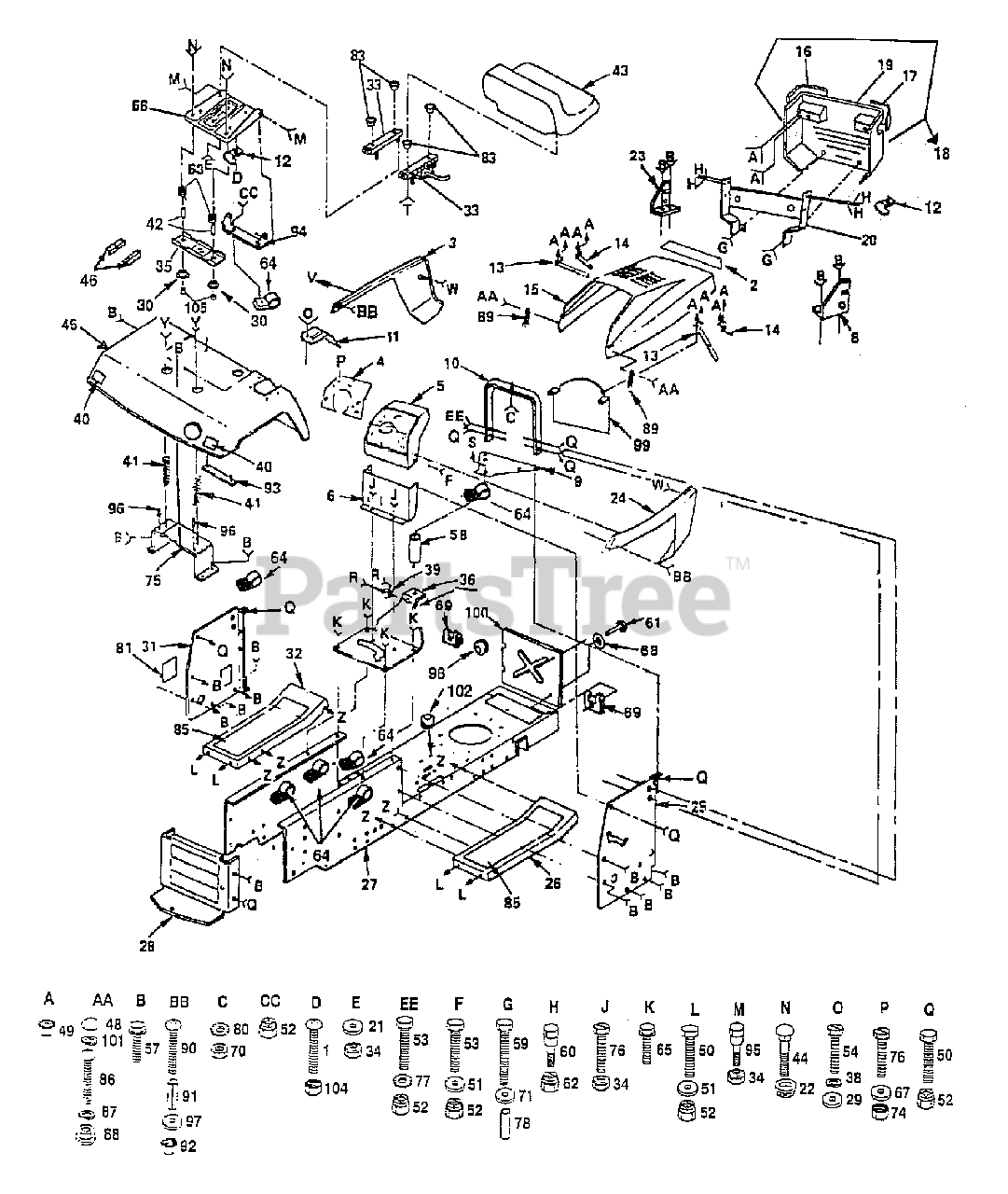

Chassis Enclosures Parts Diagram

  • Title

1

Husqvarna 874641008

Screw, Slotted Pan Head #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532105037

Foam, Strip

$

$

Not available

3

Husqvarna 532125009

Panel, Side, L.H.

$

$

Not available

4

Husqvarna 532124772

Dash, Plate
(Superseded to 532123952)

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104805

Dash, Assembly, Lower

$

$

Not available

8

Husqvarna 532110853

Bracket, Assembly, R.H.

$

$

Not available

9

Husqvarna 532106965

Plate, Support, Battery

$

$

Not available

10

Husqvarna 532124130

Support, Assembly, Dash

$

$

Not available

11

Husqvarna 532123825

Console, Shifter

$

$

Not available

12

Husqvarna 532124967

Clip, Insulated

$

$

Not available

13

Husqvarna 532106784

Strap, Assembly, Hinge, Rear

$

$

Not available

14

Husqvarna 532104618

Strap, Assembly, Hinge, Front

$

$

Not available

15

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

17

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

18

Husqvarna 532127320

Grill Assembly
(Superseded to 532157236)

Note: (Inc. Key #16, 17 & 19)

$

$

Not available

19

Husqvarna 532127325

Grill
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532124574

Support Assembly, Grill

$

$

Not available

21

Husqvarna 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532123976

Locknut, Hex, Large Flange 1/4-20 UNC
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 532110852

Bracket, Assembly, L.H.

$

$

Not available

24

Husqvarna 532125008

Panel, Side, R.H.
(Superseded to 532140677)

$

$

Not available

26

Husqvarna 532124914

Footrest, R.H.
(Superseded to 532145243)

$

$

Not available

27

Husqvarna 532127166

Chassis

$

$

Not available

28

Husqvarna 532123785

Drawbar
(Superseded to 532145009)

$

$

Not available

29

Husqvarna 819060718

Washer 3/16 x 7/16 x 18 Gauge

$2.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532124118

Panel, Dash, L.H.

$

$

Not available

32

Husqvarna 532124899

Footrest, L.H.

$

$

Not available

33

Husqvarna 532124428

Slide Set, Seat

$

$

Not available

34

Husqvarna 873680500

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532124771

Saddle
(Superseded to 532123783)

$

$

Not available

38

Husqvarna 810100800

Washer, Lock #8

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532124720

Bushing, Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

40

Husqvarna 532106202

Reflector, Taillight

$

$

Not available

41

Husqvarna 532124181

Spring, Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

42

Husqvarna 532130481

Spacer, Split 0.28 x 0.88

$

$

Not available

43

Husqvarna 532124187

Seat
(Superseded to 532126826)

$188.99

$

Usually ships in 3-10 days

0

44

Husqvarna 872050411

Bolt, Carriage 1/4-20 x 1-1/4

$

$

Not available

45

Husqvarna 532124929

Fender

$

$

Not available

46

Husqvarna 532121251

Foam, Strip

$

$

Not available

48

Husqvarna 532110356

Cap, Snap

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873680400)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 874640806

Screw #8-3/8

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 817490612

Screw, Hex Washer Hd. Thread Rolling 3/8-16 x 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Husqvarna 532121236

Spacer

$

$

Not available

59

Husqvarna 874760440

Bolt, Hex 1/4-20 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532123481

Bolt, Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

63

Husqvarna 532123740

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532124996

Clip, Insulated
(Superseded to 532002751)

$

$

Not available

65

Husqvarna 817490608

Screw, Hex Washer Hd. Thd. Forming 3/8-16 x 1/2 Type TT

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124294

Pan, Seat

$

$

Not available

67

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532105838

Retainer 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532105839

Receptacle 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

70

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

71

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Gauge

$

$

Not available

74

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532105509

Bracket Assembly, Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw, Mach 5/16-18 x 3/4

$

$

Not available

77

Husqvarna 811050600

Washer, Lock 3/8 External Tooth
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121235

Spacer

$

$

Not available

80

Husqvarna 811050400

Washer, Lock 1/4 Int./External
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

81

Husqvarna 532121794

Cover, Access

$

$

Not available

83

Husqvarna 532124427

Spacer

$

$

Not available

85

Husqvarna 532108256

Pad, Footrest

$

$

Not available

86

Husqvarna 874191008

Screw, Cross Recess Pan Hd. Machine #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

88

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

89

Husqvarna 532109808

Latch, Hood

$6.99

$

In Stock, Qty 14

0

90

Husqvarna 874981020

Screw, Machine CR #10-24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

91

Husqvarna 532007206

Spacer, Split #10 x 3/4

$7.49

$

In Stock, Qty 6

0

92

Husqvarna 873731000

Nut, Keps #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532105511

Strap Assembly, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532126656

Bracket, Pivot, Seat

$

$

Not available

95

Husqvarna 532105529

Bolt, Shoulder 5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

96

Husqvarna 532105531

Nut, Push

$2.99

$

Usually ships in 3-10 days

0

97

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Gauge

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532110436

Grommet, Split
(Superseded to 532009151)

$

$

Not available

99

Husqvarna 532126493

Baffle, Rear Upper

$

$

Not available

100

Husqvarna 532108105

Shield, Heat

$

$

Not available

101

Husqvarna 532110357

Washer, Snap Cap

$

$

Not available

102

Husqvarna 532124934

Grommet

$

$

Not available

104

Husqvarna 873951000

Nut, Keps #10-32 UNC

$5.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532124238

Cap, Spring, Seat

$

$

Not available
