GT 1554 VT (14VR13CK009) - Cub Cadet 54" Garden Tractor Hood & Grille Parts Diagram

54" Garden Tractor

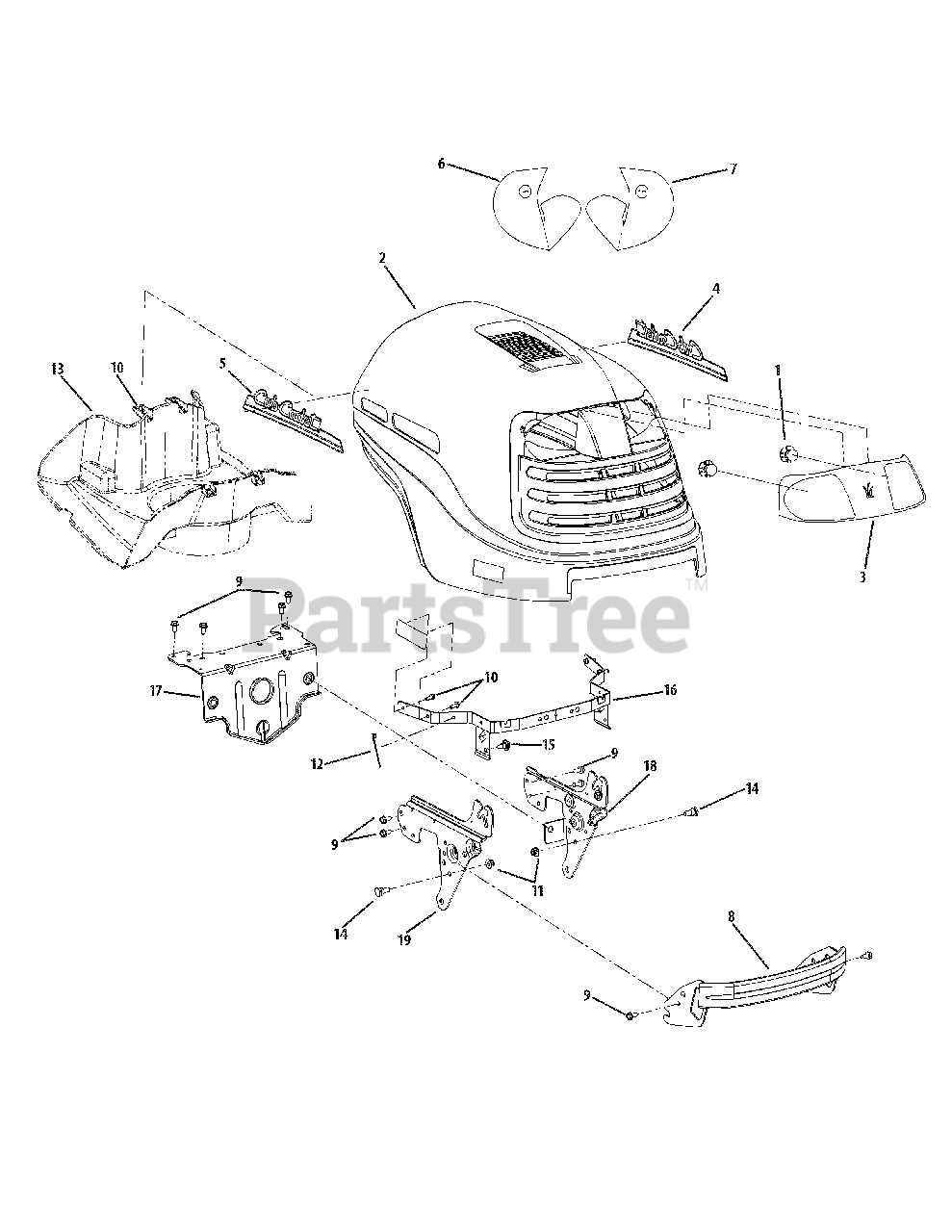

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet N/A

Socket Assembly

$

$

Currently unavailable

1

Cub Cadet 925-0963

Miniature Lamp, 12V

$7.49

$

In Stock, only 4 left!

0

1

Cub Cadet 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

2

Cub Cadet 931-04567A

Hood Cub 1000

$344.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-04577

Lens, Cub 1000 Headlight
(Superseded to 931-04577A)

$46.99

$

In Stock, Qty 7

0

4

Cub Cadet N/A

Label LH, Cub 1000 Heat

Note: (See Label Map)

$

$

Currently unavailable

5

Cub Cadet N/A

Label RH, Cub 1000 Heat

Note: (See Label Map)

$

$

Currently unavailable

6

Cub Cadet 777X41562

Label, Cub 1000 Left Lens

Note: (From sitting in the operators position)

$

$

Not available

7

Cub Cadet 777X41563

Label, Cub 1000 Right Lens

Note: (From sitting in the operators position)

$

$

Not available

8

Cub Cadet 683-04238-0637

Bumper Assembly

$49.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04484

Screw, Hex Washer, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0895

Screw, Hex Washer, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

11

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 731-04569A

Plenum, Hood

$62.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-0143

Bolt, Shoulder, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04091A

Screw, Shoulder, 5/16-18 x .43 x .29

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-04606C-0637

Bracket, Hood Pivot

$48.99

$

In Stock, only 1 left!

0

17

Cub Cadet 783-05326-0637

Bracket, Pivot Bar
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

18

Cub Cadet 783-05417-0637

Bracket, Pivot Support LH

$

$

Not available

19

Cub Cadet 783-05418-0637

Bracket, Pivot Support RH

$

$

Not available
