GT 1554 (14RK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Lift Assembly 1K016 & before Parts Diagram

54" Garden Tractor

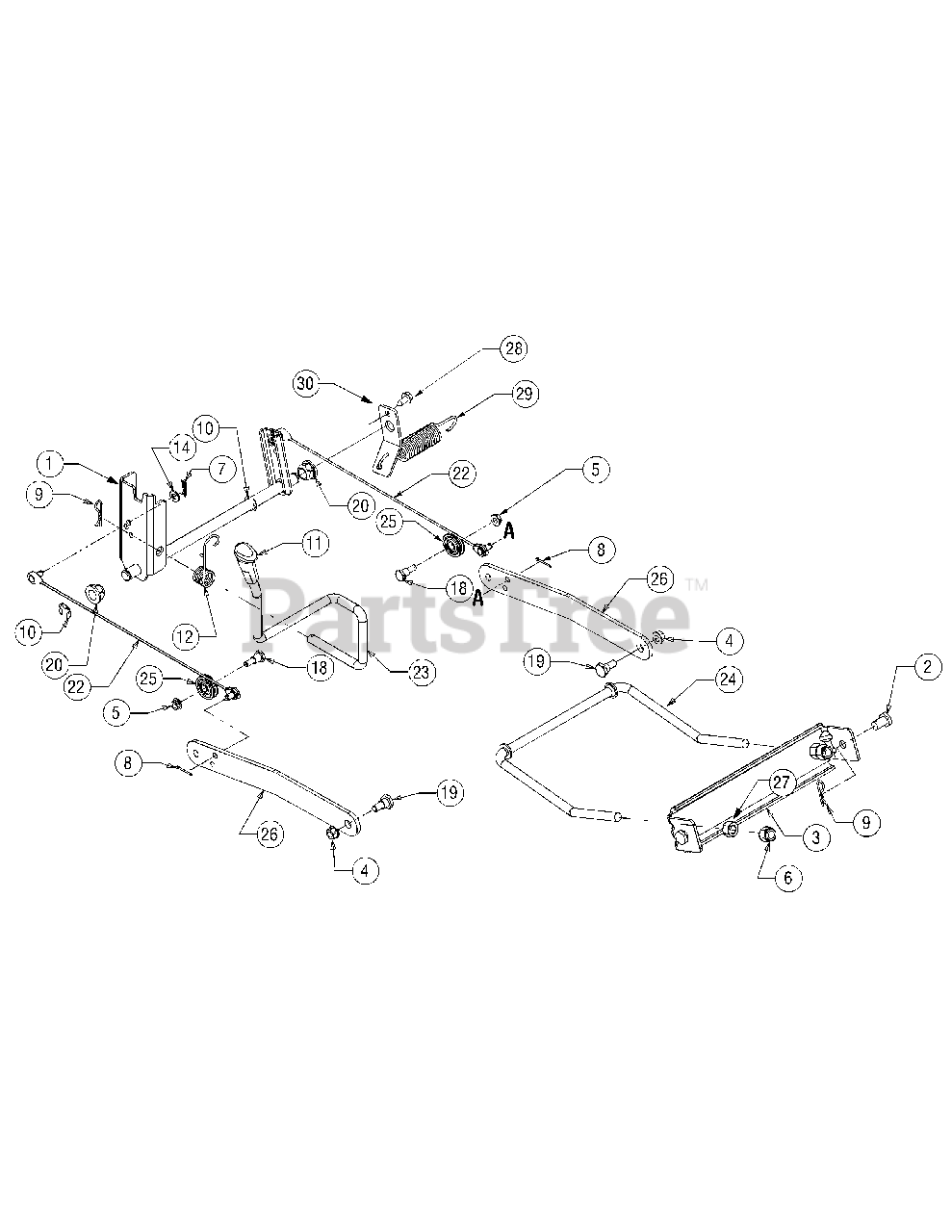

Lift Assembly 1K016 & before Parts Diagram

  • Title
1

Cub Cadet 683-04118

Shaft Assembly, Lift
(Superseded to 683-04118-0637)

Variations

Cub Cadet 683-04118-0637

SHAFT ASM-LIFT 54" - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

3

Cub Cadet 783-0720A

Bracket, Deck
(Superseded to 783-0720C)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 714-04023

Pin, Click, .092 x 1.64 Lg

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 716-0106A

E-ring, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

11

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 2 left!

0

12

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

18

Cub Cadet 738-0138A

Screw, Hex Cap, 5/16-18x.620 Gr2

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-04155

Handle, Lift

$

$

Not available

24

Cub Cadet 747-1324

Rod, Deck .5" Dia.

$58.99

$

In Stock, only 3 left!

0

25

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 1 left!

0

26

Cub Cadet 783-0678A

Arm, Lift
(Superseded to 783-0678C)

Variations

Cub Cadet 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0678A-4008

USE 783-0678C-4008 LINK-LIFT - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0726

Screw, Self-tapping, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 732-0934

Spring, 1.01 x 6.5

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 783-04462

Bracket, Lift
(Superseded to 783-04462A)

$10.99

$

Usually ships in 3-6 days

0
